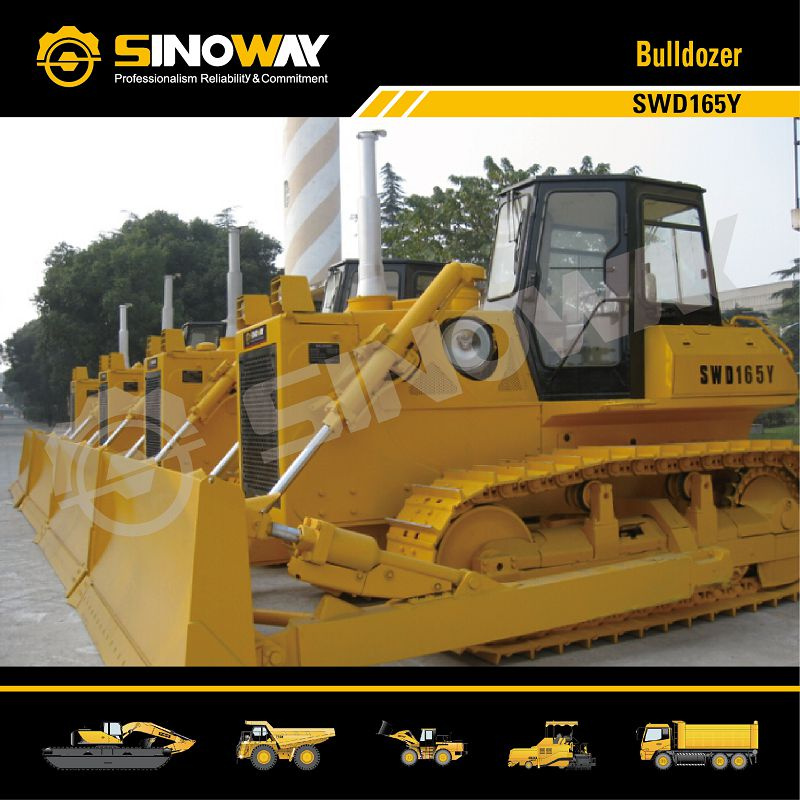

Product Specifications
| Prod Model: |
SWD165Y |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Blade Size: |
4.5 M3 |
| Walking Mode: |
Crawler |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
| Type: |
Bulldozer |
| Scraper Type: |
Bulldozer |
| Load And Unload Method: |
Bulldozer |
Product Description
Sinoway supply a broad line of crawler bulldozers, including compact models, small and large construction bulldozers, mining dozers and swamp bulldozer. Whether your application is moving dirt from construction sites, landscaping residential areas, or even breaking limestone at a mine pit, Sinoway bulldozers will meet your needs.
With the maturest technology introduced, Sinoway offers both flat design track dozers as Komatsu and elevated track bulldozers as Caterpillar. As a supplement, Sinoway provide also wheeled bulldozer for your application which crawler dozers are not allowed. From a wide horsepower range of 80HP to 430HP, with various blade types and attachments available, the last thing now is just selecting the right bulldozer for your application.
Engine Model SDEC SC11CB
Rated Power 122 kw
Operating Weight 17800 kg
Track Width 560 mm
| Engine |
| Model | Shangchai SC11CB |
| Type | Direct injection,water-cooled |
| Rated power | 122kw |
Rated speed | 1900rpm |
| Implement Hydraulic System |
| Hydraulic flow rate | 190L/min |
| Hydraulic pressure | 12Mpa |
| Pump type | Double gear pump |
| Control valve | Hydraulic operated pilot control |
| Under Carriage System |
| Sprocket | Segmented |
| Number of track rollers(each side) | 6(4 single,2 double) |
| Number of carrier rollers(each side) | 2 |
| Number of front idler(each side) | 1 |
| Track type | Single grouser |
| Track tension | Hydraulic |
| Track pitch | 203mm |
| Track width | 560mm |
| Number of track shoes (each side) | 38 |
| Track length of ground | 2570mm |
| Ground clearance | 352.5mm |
| Main Technical Specifications |
| Operation weight(without ripper) | 17800kg |
| Ground pressure (without ripper) | 0.0692Mpa |
| Grade ability | 58% |
| Overall dimensions(L×W×H,without ripper) | 5236×3416×3160mm |
| Max.tractive force | 139.6KN |
| Working Equipment |
| Blade type | Straight |
| Width | 3416mm |
| Height | 1180mm |
| Max digging depth | 420mm |
| Max.lift above ground | 852mm |
| Tilting angle | 8.5° |
| Transmission System |
| Torque converter | 3-elements,single stage.single phase |
| Gear box | Power shift ,forced lubricated planetary gear |
| Bevel gear | Helical bevel gear splash lubricated |
| Final drive | Spur gear,double reduction splash lubricated |
| Gear shifts(Forward/Reverse) | F3/R3 |
| Traveling speed (km/h) |
|
| Forward/ReverseI | 3.3/4.0 |
| Forward/ReverseII | 6.3/8.0 |
| Forward/ReverseIII | 11.4/13.9 |
| Steering Clutch And Brake |
| Steering clutch | Hydraulically actuated,multiple-disc oil clutches,spring pressed,hydraulic separated |
| Steering brake | Oil two-direction floating band with mechanism foot pedals,hydraulic boosted |
| Service Capacities |
| Fuel tank | 230L |
| Water tank | 60L |
| Implement oil tank | 85L |
Sinoway Industrial (Shanghai) Co., Ltd is a top one stop package equipment solution provider in China especially for vehicle, construction machinery and mining equipment. As a professional procurement and supply chain service provider, we are always committed to offer our respectable customer high quality products with reliable performance, competitive price and sincere services ensuring every engineering project to be run smoothly and on schedule. With over 20 years' experience in the field of engineering industry and accompanying to fulfill strictly ISO 9001: 2008 standard, Sinoway is ready to provide products and services to our clients with professionalism, reliability and commitment.
Our Advantage:
1- 20 Years Industry Experience
As a professional on stop package equipment solution provider, since established in 2002, SINOWAY has been engaged in construction machinery and mining equipment international business and accumulated rich industry experience.
2- Professional Sales Teams.
All our sales staff has at least 3 years above of industry sales experience. They can be fluent in speak English, Spanish, French and Russian. Besides they are friendly, reliable, positive and honest.
3- Experienced Service Teams.
SINOWAY has set up own Service Support team to make better service to our customers. We not only offer on-line technical support, but also offer training and service support on-site.
4- Genuine Spare Parts Supply
SINOWAY insists to offer genuine spare parts to our clients in order to keep client's machinery operation in good order. All parts demand will be handled by special personnel to ensure them to deliver clients correctly, safely and quickly.
5- Competitive Price Offer
As a top cooperator of various Chinese Construction and mining equipment manufactories/factories, we have best dealership price in our hand. SINOWAY always believes in putting our benefits together with customers' benefits in the same boat and gain the Win-Win.
We sincerely hope to cooperate, develop together and build a good future with you.
Your success is our commitment. Let us be your trusted partner.
