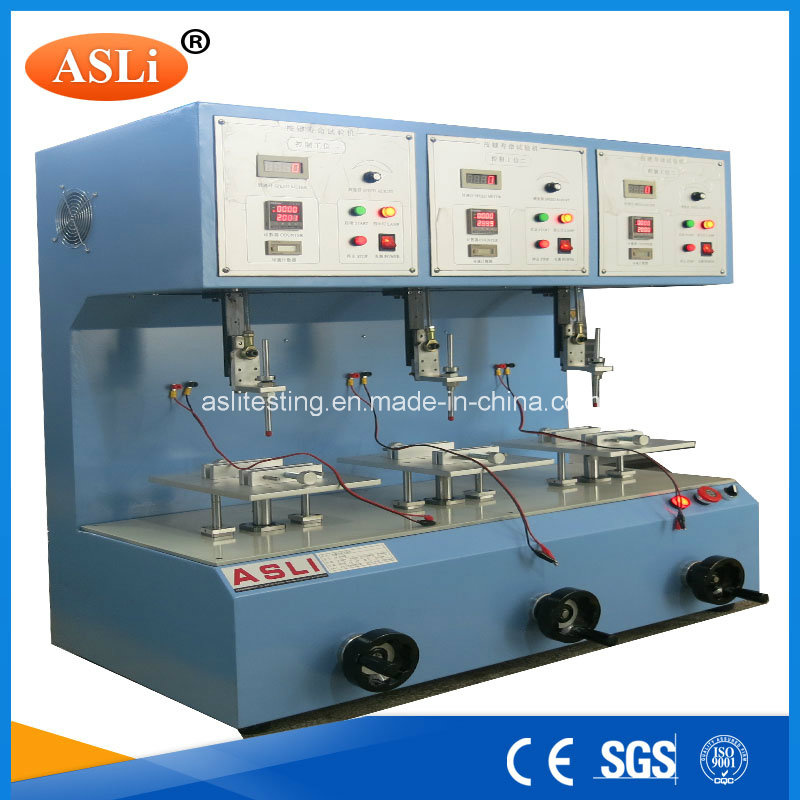

Button Life Testing Machine/ Lab Testing Instrument
Product Specifications
| Prod Model: |
AS-8330C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Asli |
| Which Type: |
Material Testing |
| Model: |
as-8330c |
| Packing Details: |
Plywood Case |
| Lead Time: |
10-15 Days |
| Warranty: |
12 Monthes |
| Type: |
Compression Testing Machine |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
| Oil Cylinder Position: |
Na |
Product Description
Purpose:
Apply for keystroke life-span test of computer mouse, telephone, mobile phone in-car system, PDA, Bluetooth earphone, Remote control, MP3/CD and the other non-listed small consuming electronic products as well as connectors & springs life-Span testing.
Features:
3 & 5 & 8 testing stations can be optional.
Every testing station is independent control & working: times/conduct/on/off/speed &etc.
Every testing station can test 1 key at one time and 3 keys meanwhile(need to be ordered), pressure is adjustable and with calibrating system to control the testing times
Specification:
Test amount
3 Sets
5 Sets
8 Sets
Test load: 50g/100g/200g (other specification can be ordered)
Test speed
1-120times/min (or specified)
Test cycle
1~999,999 times (cycle)
Adjustable table height
0~80mm
Power Supply
AC220V 50Hz 5A or specified by user
| Load of button(g) | 80-450 |
| route of button(mm) | 60 max |
| work bench lifting range(mm) | 1 to 9999999 |
| machine dimension(mm) | 510*880*400 |
| weight (kg) | 90kg |
| power | AC220V |
|
|
Established in 1988, ASLi (China) Test Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Programmable constant Temperature & Humidity Test Chamber, High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, aging tester, drying oven, xenon lights resistant to climate testing machine, UV resistant to climate testing machine, ozone aging test machine, sand and dust testing machine, tension tester, high and low temperature testing machine, servo carton compression tester, mechanical vibration tester and other quality testing instruments. Thanks to several decades of R&D efforts, the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
ASLi (China) Test Equipment Co., Ltd is authenticated by competent testing centers, including the National Measurement andTestingCenterand South China Center of Metrology. Famous for precision and reliability, these products have been extensively used within the industry, by research institutions, quality inspection agencies, and colleges and universities both at home and abroad, serving a worldwide customer base.
With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, ASLi (China) Test Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
