Product Specifications
| Prod Model: |
BV-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
BV-4 Blasting vibration Monitor satisfies all the needs of blasting vibration recordinghappened in the engineering projects of construction, mining, bridge, tunnel, roads and so on. Consultants equipped it as a must for blasting affection estimation as well as people works in theseismic institutes or related universities.
Key features
1. Easy to use Embedded computer system and backlit LCD makeonsite setup and operation quick, easy and intuitive, even forinexperienced personnel. It also supports quick view afterwards.
2. Triaxial velocity All 3 speed sensors in one makes cable settingeasy.
3. High- A/D resolution A/D resolution reaches to 16 bit, whichmakes waveform smooth and precise.
4. Wide Range Specially designed range from 0.001cm/s to 35.4cm/scovers all the possibilities of blast vibration recording. Manualoperation is not necessary, it adjust automatically.
5. Large storage The number of events can be continually recorded is128 to 1000. The total storage space is 128M which enables user toallocate events.

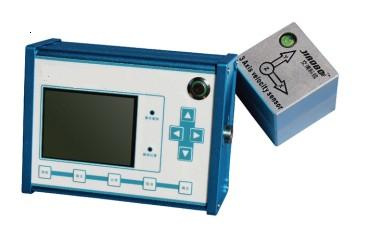

BV-4 The most versatile and most reliable full-featured blasting vibration monitor
Blasting vibration Monitor
Channels: Triaxial Geophone or 3 independent user-confi gurale channels
User Interface: 7-key keypad and high-contrast, backlit LCD
Battery: Rechargeable 8 V lithium cell
Sample Rate: 1kHz to 50kHz adjustable
A/D: 16 Bit
Frequency Range: 0 Hz ~ 20 kHz
Resolution: 0.05mV(0.5mm/s)
Accuracy: 1 ‰
Clock precision: ≤ 5s per month
Sample Mode: Simultaneous Acquisition
Record Time: 1 to 160 seconds adjustable
Record Mode:
Event is recorded until activity remains below trigger level for duration of
Auto mode, or until available memory is filled.
Range: Auto Range. Up to 350 mm/s
Trigger level: 0-10V(0-35cm/s) adjustable
Storage Capacity: 1M SRAM, 128 M flash; 128~1000 event capacity
Physical Specifications
Dimensions: 168mm × 99mm × 64mm
Weight: 1kg
PC Interface: USB 2.0
Battery life: Capacity for 60 hours of continuous monitoring
Operating Temp. Range: -10~ 75
Environmental:
Relative Humidity: 20 ~ 100 % RH Noncondensing
Remote Communications Compatible with GSM, RF and Cellular servers
