Brief introduction:
Features:

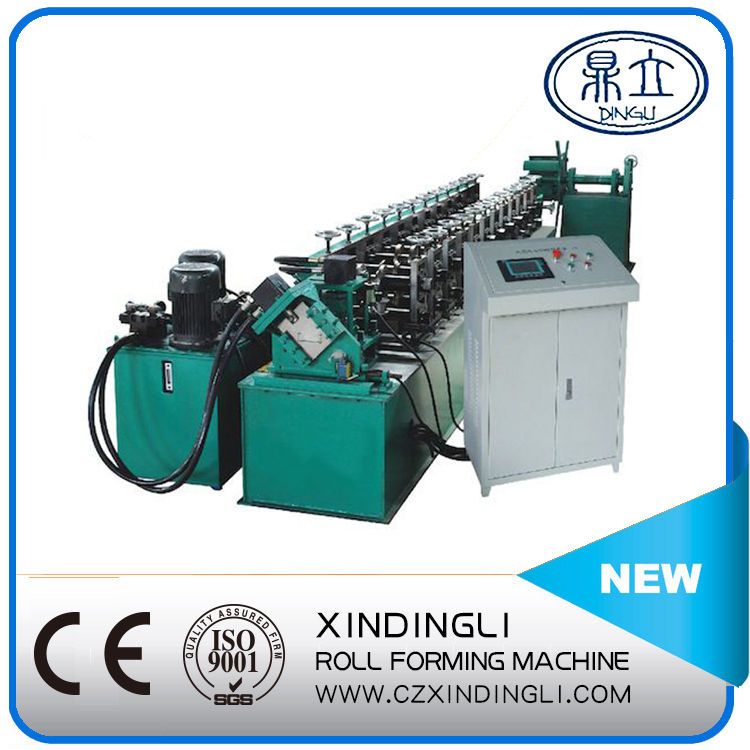

1. The stud and track forming machine produces studs and tracks.
2. The thickness can usually be formed at 0.25-1.2mm.
3. The whole line speed of the stud and track forming machine can be reached at 40m/min or more.
4. If you need higher efficienncy, we recommed you use the flying shear with no-stop.
Application:
The products of the stud and track forming machine are used as the supporters in ceilings, roofing, wall construction, etc.
Configurations:
The stud and track forming machine consists of a passive or hydraulic single or double head uncoiler, roll forming machine unit, hydraulic automatic cutting unit, PLC automatic control cabinet and product run out table.
Complete Line Consist Of
Passive/Hydraulic Single /Double Uncoiler
Roll Forming Machine Unit
Hydraulic Automatic Cutting Unit
PLC Automatic Control Cabinet
Product Run Out Table
We can also design many kinds of roll forming machines according to your specific profile drawing.
Cangzhou Xindingli Cold Bending Machinery Co., Ltd
Contact person: Anna Liu
Mobile: +86-15532867977
Contact me to get more information
Welcome to contact and visit us, waiting for your cooperation sincerely.
| No. | main parameter of C shape purline Roll Forming Machine |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 175/400mm |
| 3 | Rollers | 12 rows |
| 4 | Dimensions | 6.3*1.4*1.5m |
| 5 | Power | 4+4kw |
| 6 | Thickness of the plate | 0.25-1.2mm |
| 7 | Productivity | 8-10m/min |
| 8 | Diameter of the roller | Φ70mm |
| 9 | Weight | About 3T |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Material of the cutting plate | Cr12 |
| 12 | Hydraulic | 40# |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | PLC control |
