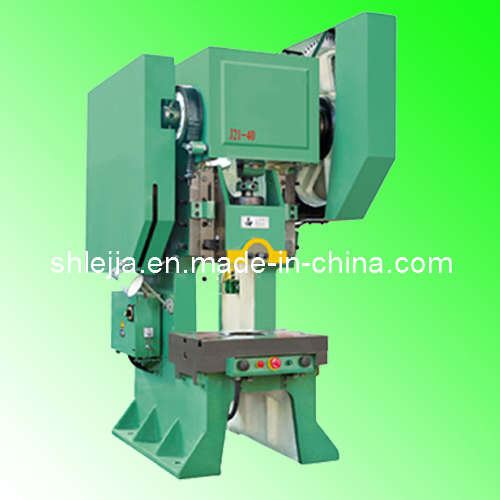

C-Frame Fixed Table Press

Name: C-Frame Fixed Table Press
Brand: china-manufacturer-directory.com
SKU: 695613785
Availability: InStock
Rating: 5 (139 reviews)

Supplier:	Shanghai Lejia CNC Machine Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	J21
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
C Frame:	Fixed Table Press
Clutch:	Turn-Key and Rigid Clutch
Guide:	Six-Side Rectangle Guides
Type:	General Punching Machine
Automatic Grade:	Semiautomatic
Power Source:	Mechanical Drive
Precision:	High Precision
Controlling Mode:	PLC

Product Description

1, Cast frame, to ensure high rigidity and less deformation.
2, Turn-key and rigid ciucth, with flexible movement and reliable performance.
3, Crankshaft placed crosswise, six-side rectangle guides of the slide with high accuracy.
4, Perss-collape block block device, to ensure safety in press operation.
5, Emergency brake device, to control the slide stop any position within 135° If any occurrence such as the arms, any substances accessing working area.
6, Photoelectric protector, transmission output axle, feeder, air cushion and other optional accessories are available for the power press subject to user's demands.

Welcome to send inquiry to us, we will try my best to satisfy you well with comptetitive prices as per your request.

Model		J21-25	J21-40	J21-63	J21-80	J21-100	J21-125	J21-165	J21-200
Nominal Pressure(KN)		250	400	6630	800	1000	1250	1650	2000
Nominal Pressure Stroke(mm)		2	4	4	5	5	5	6	6
Stroke of Slide(mm)		80	100	120	130	140	150	160	180
Strokes(S. P. M. )		100	55	50	50	45	40	40	40
Max. Die Set Height(mm)		180	220	270	280	290	340	350	360
Die Height Adjustment(mm)		70	80	90	90	100	100	100	100
Depth of Throat(mm)		190	240	260	290	320	380	390	400
Distance between Uprights(mm)		240	300	350	380	460	530	480	530
Bottom Size of Slide	F-B(mm)	220	320	320	380	390	520	650	700
Bottom Size of Slide	L-R(mm)	200	270	280	280	340	400	450	500
Hole for punch shank	Diameter(mm)	Ø 40	Ø 50	Ø 50	Ø 50	Ø 50	Ø 60	Ø 70	Ø 70
Hole for punch shank	Depth(mm)	60	70	80	80	80	80	80	80
Size of Table	L-R(mm)	560	700	710	780	900	1100	1150	1200
	F-B(mm)	360	460	480	540	600	710	750	780
	Thickness(mm)	70	80	90	90	110	120	140	140
Hole of Table	Diameter(mm)	Ø 120	Ø 150	Ø 180	Ø 180	Ø 200	Ø 200	Ø 250	Ø 300
Motor Power(KW)		2.2	4	5.5	7.5	11	11	15	22
Overall Dimensions	L-R(mm)	950	1210	1340	1360	1625	1710	1760	1850
	F-B(mm)	1200	1410	1710	1850	2180	2200	2350	2500
	Height(mm)	2000	2270	2600	2600	3000	3200	3310	3650
Total Weight(KG)		1720	3060	4280	5220	8110	9950	12620	15500
