Product Description

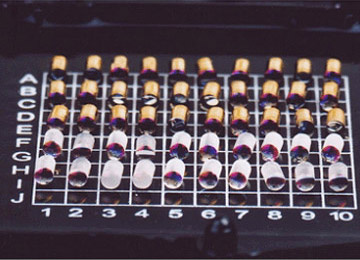

C-Lens
C-Lens is used to focus and collimate light sources. It is widely used in both active and passive fiber-optics components, MEMs and imaging system.
Application:
WDM
Collimators
Optical Switch
Attenuators
Fiber-to-optical coupling
Laser-to-fiber coupling
Specifications:
Diameter: 1.8mm
Diameter Tolerance.: 0.05~20mm
Pitch: 0.23
Length Tolerance: ± 0.05mm
Wedge Angle.: ...8°
Wedge Angle Tolerance. .: ...± 0.5°
Surface Quality.: . 20-10 scratch and dig
Coating: R< 0.25%@1550nm
Fuzhou a-star photonics, inc., a high-tech company who specializes in distribution and production of laser crystals, nonlinear crystals, birefringent crystals, optical components, electronic components and optical communication. We are located in fuzhou fujian province, the beautiful economic city of west Taiwan strait. We have a rich experience technology and efficiency team to keep "quality first & service foremost" as our operating principle.
Main products: BBO, LBO, yvo4, ND: YVO4, linbo3, glan series prisms, high precision prisms, waveplates, windows, filters, mirrors, lenses, c-lens, g-lens, pigtail etc.
