Inctel Technology Co., Ltd >> C1037u Fanless PC Computer Systems with 29mm Extreme Ultra-Thin Chassis

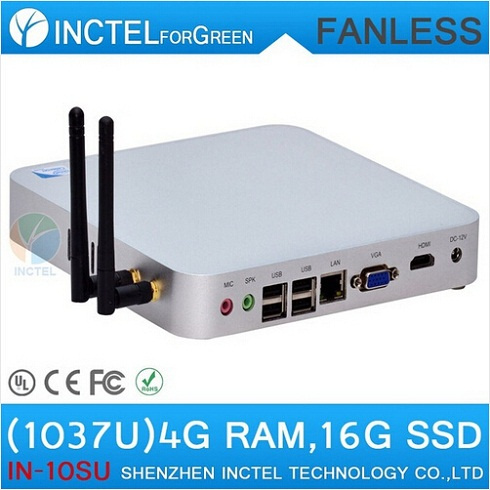

C1037u Fanless PC Computer Systems with 29mm Extreme Ultra-Thin Chassis

Name: C1037u Fanless PC Computer Systems with 29mm Extreme Ultra-Thin Chassis
Brand: china-manufacturer-directory.com
SKU: 766928835
Availability: InStock
Rating: 4.7 (80 reviews)

Supplier:	Inctel Technology Co., Ltd
Price:	US $ 176/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	IN-10SU
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CPU:	Intel
GPU:	Intel
Memory Type:	DDR3
Use:	Commercial
CPU Frequency:	1.5-2.0GHz
Memory Capacity:	2g/4G/8g
HDD Capacity:	8g/16g/32g/64G/128g/256g/512g etc

Product Description

Model	IN-10SU 1037U
General
Motherboard	Intel Celeron 1037U 1.8GHz Dual Core 4 thread
Clock Speed	Intel Chief River(Intel Bridge)
Speed	1.8GHz(100MHz x 18.0)
Processor Number	2 core/ 4 threads
Technique	22nm
Slot	Socket H2(LGA 1155)
L1 data cache	32 KB, 8-Way, 64 byte lines
L1 code cache	32 KB, 8-Way, 64 byte lines
L2 cache	256 KB, 8-Way, 64 byte lines
L3 cache	2 MB, 8-Way, 64 byte lines
Characteristic	MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, EM64T, EIST
Memory	2GB/4GB/8GBDDR3
Storage	SSD: 8GB/16GB/32GB/64GB/128GB/256GB HDD: 80GB/160GB/320GB/500GB/750GB/1TB
Operating System	Windows (OEM) or Linux
Graphic Cards	INTEL Ivy Bridge Graphics Controller(776MB/ Intel)
Resolution	Support 1920*1080 HD resolution, 32 bit color depth 60Hz
Audio Cards	Intel(R) display audio Intel Panther Point High Definition
Network card	Realtek RTL8168E PCI-E Gigabit Ethernet NIC
Ethernet	10/100/1000 BaseT LAN
WIFI	With dual antenna, 802.11.b/g/n(150M or optional 300M)
I/O Ports
Display port	1* VGA + 1 * HDMI
USB port	6* USB 2.0
Ethernet port	RJ45 10/100/1000 Mbps Adaptive
Power input port	1 inner diameter 2.5mm,external diameter 5.5mm
Ethernet port	RJ45 10/100/1000 Mbps Adaptive
Power input port	1 inner diameter 2.5mm,external diameter 5.5mm
Audio port	Standard 3.5 Audio input and output
Power and Working Environment
Input	DC100-240V AC/50-60Hz
Output	DC 12V/3A
Type	External power adapter mode
Consumption	12~16W
Noise	Fanless System
Temperature	0-40 Centigrade
Relative Humidity	10%~85%(non-condensing)
Product Dimension&Details
Size	19719720mm
Weight	2.5KG(Gross Weight) 1KG(NET Weight)
Case Thickness	2.9MM
Shell	Silver
Package Box	Neutral Color Box or INCTEL Color Box
Content	Mini PC device, Power Adapter, Desk base, Antennas (For Optional)

Celeron 1037u is currently the most competitive in cost & performance
which is what exactly people looking at today.Ultra compact form factor (UCFF),
small form factor (SFF), mini pc gained popolarity
over the last couple of years,
especially for those passive cooling series of mini-PCs.

Configuration
Model	IN-10SU
CPU	CPU: IVB platform Intel Celeron dual-core C1037U 1.8GHz Or Pentium 2117U, we will ship randomly per the stock.
GPU	Integrated graphics HD Graphics/L3 2MB
RAM	Support NB Memory SO-DIMM DDR3/DDR3L (Maximum to 8G RAM)
Storage	Support 1Mini PCIE Msata SSD+1 2.5" HDD/SSD (SSD Max.512G, HDD Max. 1.5TB
Wi-Fi	Dual Band Wireless-(150Mbps or 300Mbps optional)
Package	Mini PC+Power Supply+Power Cord (USA, European, UK Types for optional)+PC Stand

Emphasis:

Intel NM70 Express Chipset

4*USB 2.0

Mini PC Rear I/O:

DC 12V
HDMI
VGA
LAN
MIC Input
SPK Output

Fanless
