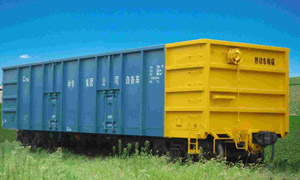

Model C45 open top wagon is a common purpose wagon, which designed to transport coal, timber, bulk cargos or box-packed cargos on the railwaygauge of 1067mm as well as 40 ft containers of international standard within smaller clearance limit. The technical specifications are as following:
Loading capacity: 45t
Tare weight: ≤ 20t
Max running speed: 100km/h
Coupler: No. 13 coupler with bottom operation, yoke and MX-I rubber buffer
Brake System: Faiveley air brake system in compliance with UIC standard.
Model C35 open top wagon is designed to transport box-packed or bulk cargos such as coal, ore, coke, building material and timber on the railway gauge of 1067mm in Sudan. The technical specifications are as following:
Loading capacity: 35t
Tare weight: ≤ 20t
Max running speed: 100km/h.
Coupler: No. 13 coupler with bottom operation, yoke and MX-I rubber buffer
Brake System: Faiveley air brake system in compliance with UIC standard.
C64K open-top railway wagon
Main structure: The car consists of car body, braking system, coupler an buffer, bogie and so on. The car body, consists of under frame, side wall, end wall, car door and other components, is full of steel weld structure. The bogie is K2 type. The air braking system is type 120 control valve with 254mm-diameter integral spinning sealed type brake cylinder and ST2-250 bidirectional brake shoe clearance adjuster. Manpower braking equipment is NSW hand brake. The coupler and buffer is number 13 top operation coupler in C-level steel material and MT-3 buffer.
Model C45 open top wagon is a common purpose wagon, which designed to transport coal, timber, bulk cargos or box-packed cargos on the railwaygauge of 1067mm as well as 40 ft containers of international standard within smaller clearance limit. The technical specifications are as following:
Loading capacity: 45t
Tare weight: ≤ 20t
Max running speed: 100km/h
Coupler: No. 13 coupler with bottom operation, yoke and MX-I rubber buffer
Brake System: Faiveley air brake system in compliance with UIC standard.
Model C35 open top wagon is designed to transport box-packed or bulk cargos such as coal, ore, coke, building material and timber on the railway gauge of 1067mm in Sudan. The technical specifications are as following:
Loading capacity: 35t
Tare weight: ≤ 20t
Max running speed: 100km/h.
Coupler: No. 13 coupler with bottom operation, yoke and MX-I rubber buffer
Brake System: Faiveley air brake system in compliance with UIC standard.
C64K open-top railway wagon
Main structure: The car consists of car body, braking system, coupler an buffer, bogie and so on. The car body, consists of under frame, side wall, end wall, car door and other components, is full of steel weld structure. The bogie is K2 type. The air braking system is type 120 control valve with 254mm-diameter integral spinning sealed type brake cylinder and ST2-250 bidirectional brake shoe clearance adjuster. Manpower braking equipment is NSW hand brake. The coupler and buffer is number 13 top operation coupler in C-level steel material and MT-3 buffer.
Qingdao RuiLan Trading Co., Ltd is specialized in Railway bogie casting parts, like bogie18-100 to Russia, bogie1750 to Ukraine, both bogie18-100 and bogie1750 with certificate can make sure products enter into your market.
Bogie18-578, bogie18-194 and bogie 18-7020 will be ok soon.
We have been cooperated with many big companies and manufactures in Russia and Ukraine. Our experienced engineers offer a wealth of design and application expertise. We can offer you more than 20 years of experience in designing and manufacturing to satisfy your particular needs. Our company has advanced equipment, professional staff. Our raily way parts productions obtained CRCC certification, AAR, Ukrsepro and ISO9001: 2000 quality system certification, which guarantees high quality railway products for domestic and foreign manufactures.
Our International trade department is responsible for the product export, and undertakes the train design, manufacture, maintenance, and production of major cast steel parts and bogie parts.
"Quality Products, Excellent Service, Competitive Prices and Prompt Delivery" is our principle. We have built up good relationships with customers all over the world. We are advancing into global market drastically. Additionally, we have put considerable efforts on development and design, which can enable us to better satisfy customers' changing needs in a positive manner.
We are pleased to be your stable railway parts, components any products such as casting parts, bogies we can make them according to your drawings.
We sincerely welcome you to visit our company for cooperation and mutual development.
