Yueqing Jianghong Electrical Appliance Factory >> C45n Mini Circuit Breaker for Building

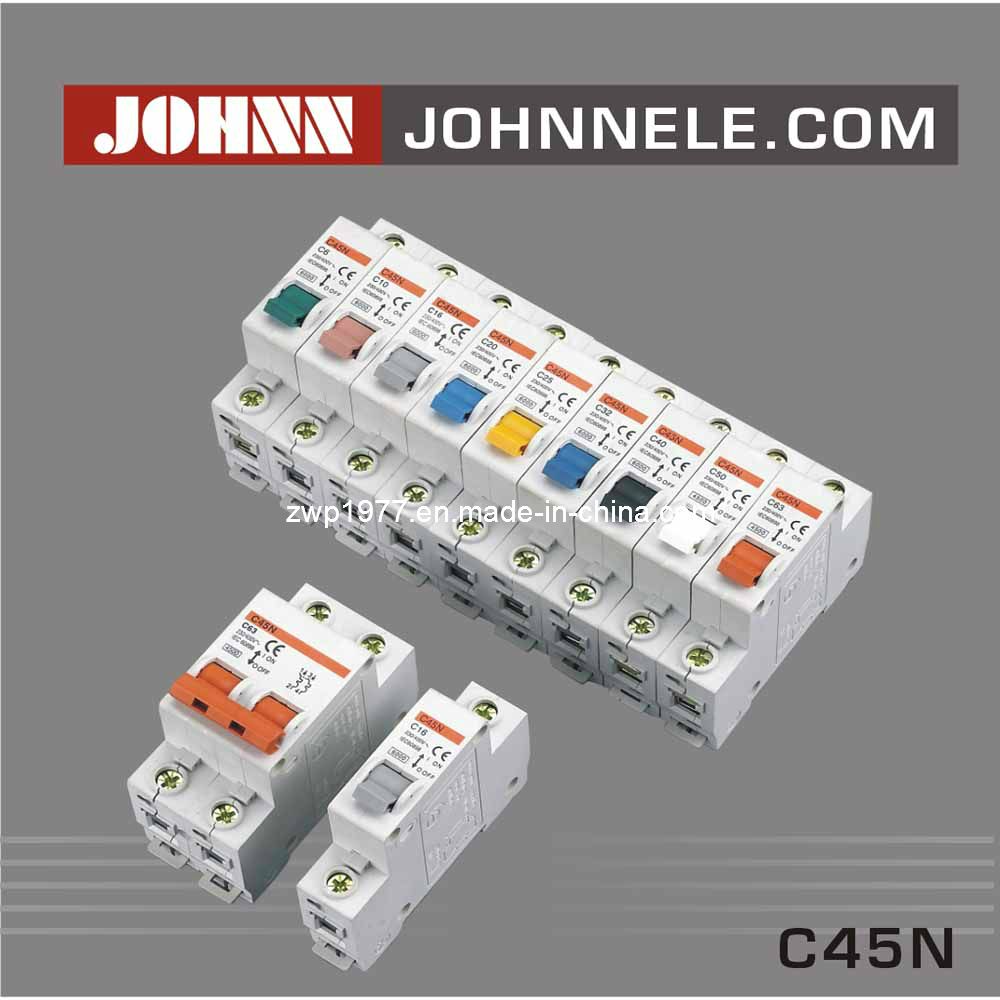

C45n Mini Circuit Breaker for Building

Name: C45n Mini Circuit Breaker for Building
Brand: China-Manufacturer-Directory.com
SKU: 730182425
Availability: InStock
Rating: 4.9 (107 reviews)

Supplier:	Yueqing Jianghong Electrical Appliance Factory
Price:	US $ 0.1-5/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	c45n
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port:	Ningbo or Shanghai
Product Type:	Public
Type:	Circuit Breaker
Function:	Circuit-Breaker Failure Protection
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CE
Operation:	Electric Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Structure:	Conventional Circuit Breaker

Product Description

*C45N Series Circuit Breaker is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the system.

*The product is neoteric in structure, light in weight, reliable and excellent in performance. Its frame and parts adopt plastics of high fIre-resistant and shockproof.

*The product with long life, is mainly used in AC 50Hz/60Hz single pole 240V or two, three, four pole 415V circuit for overload and short-circuit protection as well as for unfrequent on and off switching electric equipment and lighting circuit in normal case.

1. MOQ: ONE CONTAINER. (CAN MIXED ITEMS)

2. MOQ: LESS USD$3, 000

3. PAYMENT TERMS: 30% deposit, balance see the copy of B/L by email or negotiation

4. DELIVERY METHODS:

By sea
By air ( Express DHL, Fadex, TNT)

5. DELIVERY TIME: Within 25 days after receipt deposit

6. FOB Price: USD 0.1~5 / Piece

Specifications
Setting Temperature of Protective Characteristics at 40°C
Rated Voltage:	240V/415V
Rate Current:	1,3,6,10,16,20,25,32,40,50,63A
Electrical Life:	no less than 6000 operations
Mechanical Life:	(O-C) no less than 20000 Operations

C45N
RATED CURRENT (A)	POLE	Voltage (V)	Breaking Capacity (A)
1 to 40 50 to 60	1	240	6000
1 to 40 50 to 60	2,3,4	415	6000
50 to 60	1	240	4000
50 to 60	2,3,4	415	4000
1	1	220/240	10000
	2,3,4	220/240	20000
	2,3,4	380/415	10000
3	1	220/240	8000
	2,3,4	220/240	20000
	2,3,4	380/415	8000
10 to 40	1	220/240	7000
	2,3,4	220/240	16000
	2,3,4	380/410	8000
50	1	220/240	6000
	2,3,4	220/240	10000
	2,3,4	380/410	6000
60	1	220/240	5000
	2,3,4	220/240	10000
	2,3,4	380/410	5000

Our Yueqing Jianghong electrical appliance factory is a new style manufacturer whom focuses on the research and development of Miniature circuit breaker, terminal block and electric accessories in China. Our Products had exported to Middle East countries, South Asia, Africa USA, Europe, Africa and South America etc more than 20 countries by feedback good reputation. Jianghong found in year 2004, after several years ' improvement, from a small workshop developing to a team working includes design and research department, international department, financial department. One the way to the bright tomorrow, Jianghong Electrical which passed ISO9000 system are striving to put the quality as the basis of development, all our circuit breaker and terminal block are strict to according national and international standard. Most of them were approved by CE& RoHS certificate and all electric breaker compliance to IEC standard. Sincerely work with you to create a better tomorrow.
