Sayi Electrical Appliance Co., Ltd. >> C6-48 Series Centrifugal Fans for Extraction Dust

C6-48 Series Centrifugal Fans for Extraction Dust

C6-48 Series Centrifugal Fans for Extraction Dust
Supplier: Sayi Electrical Appliance Co., Ltd.
Price: US $ 2000/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: C6-48
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: 3, 15A-6c
Mode: Belt Drive or Direct Drive
Voltage: 110V/220V/380V/480V
Certification: CCC
Electric Current Type: AC
Mounting: Free Standing
Blade Material: Cast Iron

Product Description

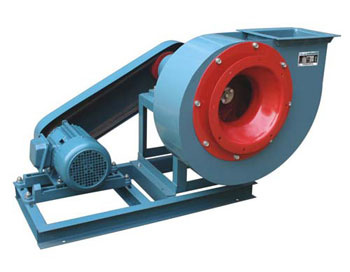

C6-48 Dust-Exhausting Centrifugal fan

C6-48 Dust-exhausting Centrifugal Fan specially made to exhaust dust. This series of fans are not easy to get dusty and they are durable. It is suitable to convey the gas including dust, wood flour, small fiber, etc. If there is hard granulated matters in the air, the fans should be matched with dust-exhausting set. It can also be used for common ventilation system.









Fan Number Rotation Speed Motor Volume Flow Total Pressure
N o rpm kW-p m 3 /h Pa
3.15A 2900 2.2-2 1369-3060 1587-1163
1450 0.55-4 684-1530 397-291
4A 2900 5.5-2 2748-6374 2594-1859
1450 1.1-4 2582-3187 553-465
5A 1450 3-4 4401-6252 918-724
960 0.75-6 1705-4139 449-317
6.3A 1450 7.5-4 10091-12505 1369-1150
960 2.2-6 3411-8279 711-504
3.15C 1600 0.75-2 755-1688 483-354
1800 0.75-2 850-1899 611-448
2000 0.75-2 944-2110 755-553
2240 1.1-2 1057-2363 948-694
2500 1.1-2 1181-1909 1181-1070
1.5-2 2152-2637 1015-865
2800 1.5-2 1322-2138 1483-1344
2.2-2 2410-2954 1274-1086
3150 2.2-2 1487-2711 1880-1615
3-2 3017-3323 1507-1376
4C 1250 0.75-2 1184-2748 481-345
1400 0.75-2 1326-3077 603-433
1600 1.1-2 1516-2850 789-672
1.5-2 3183-3517 624-565
1800 1.5-2 1705-3957 999-716
2000 2.2-2 1895-4396 1234-884
2240 2.2-2 2122-2589 1550-1505
3-2 3056-4924 1451-1110
4C 2500 3-2 2369-3411 1933-1810
4-2 3932-5495 1737-1384
5C 1000 0.75-2 1776-3035 486-436
1.1-2 3479-4312 410-344
1120 1.1-2 1990-3896 610-514
1.5-2 4415-4829 475-432
1250 1.5-2 2221-4349 760-641
2.2-2 4927-5390 592-538
1400 2.2-2 2487-6036 954-675
1600 3-2 2842-6899 1247-882
1800 4-2 3198-6262 1580-1332
5.5-2 7095-7761 1230-1118
2000 5.5-2 3553-6958 1953-1647
7.5-2 7883-8623 1521-1381
6.3C 800 1.1-4 2843-4116 494-464
1.5-4 4857-6900 443_350
900 1.5-4 3198-4631 625-588
2.24 5464-7762 561-443
1000 2.2-4 3554-6071 772-693
3-4 6959-8625 651-547
1120 3.4 3980-7794 969-818
4-4 8831-9660 755-686
1250 4-4 4442-7588 1208-1085
5.5-4 8699-10781 1019-855
1400 5.5-2 4975-8499 1517-1362
7.5-2 9743-12074 1279-1073
1600 7.5-2 5686-8233 1985-1866
11-2 9713-13799 1782-1403
