Guangzhou Tengsheng Audio Equipment Co., Ltd. >> Ca-25 15" Twoway Full Range Audio Digital Mixer

Ca-25 15" Twoway Full Range Audio Digital Mixer

Supplier:	Guangzhou Tengsheng Audio Equipment Co., Ltd.
Price:	US $ 400-650/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CA-25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	2-Way Full Range PRO Audio
Crossover:	Asymmetric Internal Passive Crossover
Lf Component:	156mm Magnet
Hf Component:	110mm Magnet
Size Options:	10", 12", 15", Dual 15"
Diaphragm:	Paper
Capacitor:	Solen
Colour:	Customized
Clients' Logo:	Acceptable
Warranty:	3 Years
Hi-Fi:	Not Hi-Fi
Operation Mode:	Wire / Remote Control
Speaker System:	Optional Combination
Speaker Material:	Wood
Application:	Home
Certification:	CCC
Noise:	Nun
Monitor:	Nun
THD:	<0.05%

Product Description

Features:

a. Imported multilayer birch plywood;

b. High-quality durable polyesterimide paint;

c. Realistic sound, a clear free alto and treble;

d. Balance among bass, alto and treble.

1. Description:

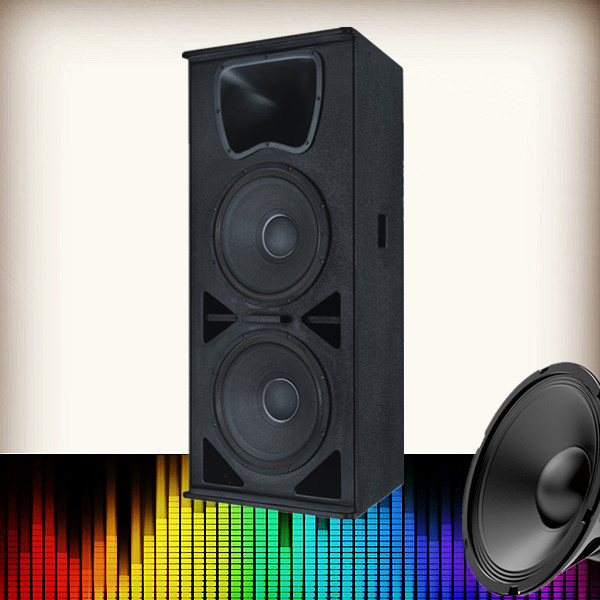

CA-25 is a three-way full range loudspeaker system. To create a compact trapezoidal design, we apply several sheets of high-density board. The surface of it is painted with high-quality durable polyester coatings.
CA-25 is equipped with 2pcs of 15" LF precise driver and a 1" HF precise compression driver, which leads to a balance among bass, alto and treble. When you use it, you will feel a realistic sound, a clear and free alto and treble.

2. Application:
It is ideal for auditorium, conference room.

3. Technical data:

Model	CA-25 15" two-way full range audio digital mixer
Drivers	LF: 2×15"voice-coil: 2"
Drivers	HF: 1×1"voice-coil: 1.7"
Frequency(±3dB)	45HZ-18KHZ(±3dB)
Dispersion(-6dB)	Hor:80° × Vert:50°
Sensitivity(1m/1W)	98dB
Maximum SPL	128dB Continuous/136dB Peak
Nominal Impedance	4 Ohms
Input power	Rate: 600W/Peak: 2400W
Recommend AMP	600W to 1000W into 8 Ohms
Connectors	2 × Speakon NL4MP
Dimensions	1230 × 545 × 520mm (H × W × D)
Master carton	1290 × 605 × 580 (H × W × D)
Net Weight	51.5Kg
Gross Weight	56.5Kg

4. Construction:

Physical	Trapezium
Enclosure	High-density board
Grille	Die-casting steel net with circular hole
Paint	Polyester coatings (whose color can be customized.)
Handing Position	M8 screw of installation holes (12 pcs)
Pole Mount	/

5. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.

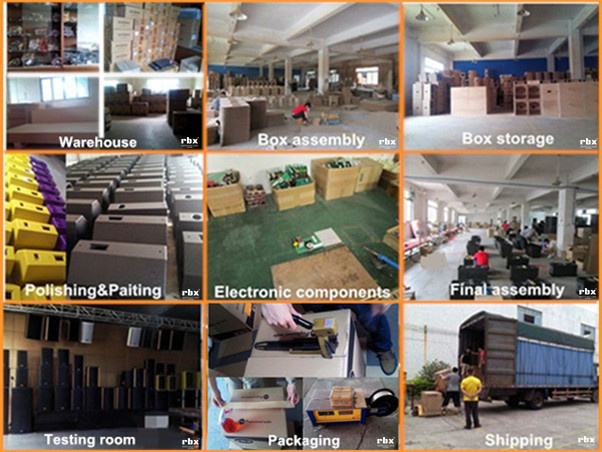

6. Company View:

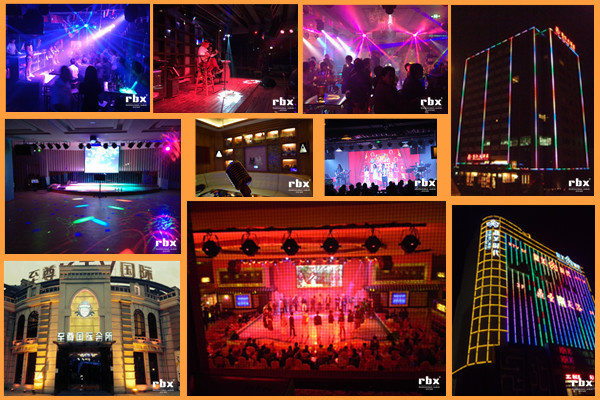

7. Our Projects:

8. Multiple transportation mode selection:

Guangzhou Tengsheng Audio Equipment Co., Ltd. is located in Huashan Town, Baiyun District, Guangzhou City, covers an area of 5, 000 square meters. Our company is closed to GUANGZHOU BAIYUN Airport, the transportation is convenient. We've been devoteing ourselves to the R&D, manufacturing and marketing of high-quality professional audio system.

During the passed years, We've owned a team of highly qualified engineers and sales. We've been always developing new products according to the market trends and the feedback from our clients, which gain much praise and trust. Besides products, we provide audio system solution also. We always take the pursuit of win-win situation between our clients and us.

Our company owns a serial of automated production equipments and quality management system basing on international standards, both of these help us to keep making progress. Excellent quality dates from pursuit of every aspect, and, customer satisfaction comes from sincere service. We'll listen to the voice of the world, and create perfect audio system.
