Product Specifications
| Prod Model: |

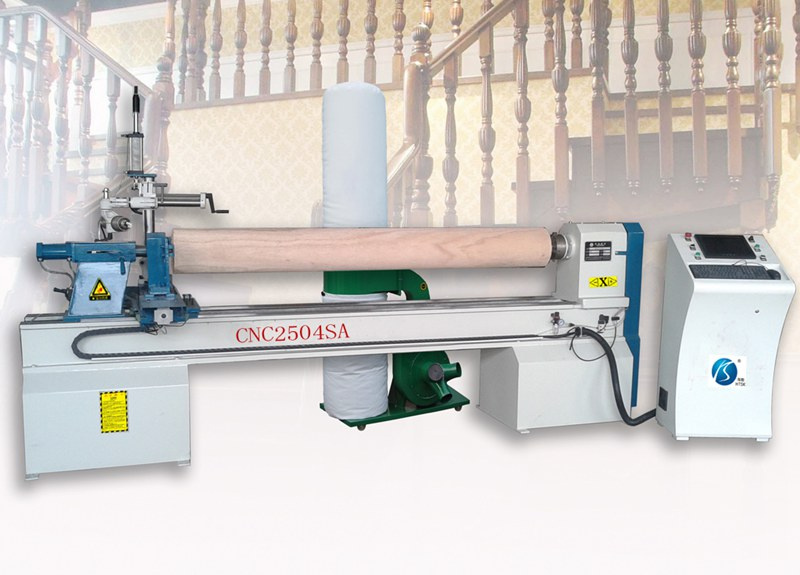

CNC2504SA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
CNC Engraving Machine |
| Usage: |
Woodworking |
| Power: |
Small Power |
| Drive Type: |
AC Servo Drive |
| Certification: |
CE |
| Laser Type: |
Semiconductor |
| Control: |
CNC |
| Current: |
AC |
| Condition: |
New |
| Max Processing Size: |
400×2500 Mm |
Product Description
Characteristics
1, Horizontal lathe bed structure.
2, Spindle frequency conversion stepless speed regulation.
3, X/Z axis adopts stepper drive.
4, Lathe bed guide rail for high precision wire gauge.
5, Precision ball screw, automatic pressure lubrication.
6, Double location tool post, coarse and fine machining one-time complete.
7, Control system adopts the mature CNC controller, 12 inches color screen, the international standard NC language G code, support for multiple software, support technical function extension.
8.Five-axis multi-function, complete car, milling, engraving, groove, and other functions.
Use
Processing: stair columns, bend round, vase, table and chair legs, european-style furniture Roman column, wooden hangers, washbasin, etc. The wood products or wood semi-finished products of rotors of cylindrical, conical, arc and spherical complex shapes.
Configuration
Standard configuration:
1, 12 inches color screen, built-in CNC computer.
2, Imported linear guide, precision ball screw.
3, Carved slot multiple spindle and the control part.
4, Universal rotary joints.
5, Rotary center follow rest (5~6 cm wood square).
6, Pneumatic feeding, automatic centering.
7, Pneumatic pressure plunger.
8, V-shaped front steel lathe tool.
9, Distribution control and easy to use software, the basic design software.
10.Accessories
Select the configuration
1, Four jaw chuck(φ160 mm ).
2, Special vacuum cleaner.
3, 220 V constant power variable frequency spindle control;
Note: Yourself with air, can choose other configuration according to customer's requirement.
