Cable for Apple

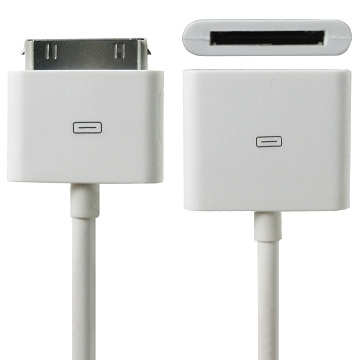

Name: Cable for Apple
Brand: China-Manufacturer-Directory.com
SKU: 662371401
Availability: InStock
Rating: 4.6 (91 reviews)

Supplier:	Changzhou Huacheng Futao Photoelectric Science & Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper
Interface Type:	USB
Pin:	8Pin
Shape:	Rectangle
Computer Cable Type:	Power Line
Printer Cable Type:	USB
Color:	Black

Product Description

:E02-U0055

1.StandardCompliance:

USB Specification R1.1 and R2.0

2.Features:

Plug and play technology,hot pluggable

High speed:480Mb/s;Full speed:12Mb/s;Low speed:1.5Mb/s

3.Electric Characteristics:

Attenuation

(dB/Cable)

Frequency

(MHz)

0.064

0.0256

0.512

0.772

1.000

4.000

8.000

12.00

24.00

48.00

96.00

200.00

400.00

USB1.0

0.08dB

0.11dB

0.13dB

0.15dB

0.20dB

0.39dB

0.57dB

0.67dB

USB1.1

0.08dB

0.11dB

0.13dB

0.15dB

0.20dB

0.39dB

0.57dB

0.67dB

0.95dB

1.35dB

1.90dB

USB2.0

0.08dB

0.11dB

0.13dB

0.15dB

0.20dB

0.39dB

0.57dB

0.67dB

0.95dB

1.35dB

1.90dB

3.20dB

5.80dB

lmpedancestry(Signal Pair)

Differential Mode(Zo)

90 Ohm ± 15%

Differential Mode(Zcm)

30 Ohm ± 30%

DC Resistance(From Plug Shell to Plug shell)

<0.5Ohm

Propagation Delay(One Way)(TFSCBL)

26ns/Cable(USB1.1;5.2ns/m(USB2.0)

4.Connectors And PIN Assignment:

Connectors	PIN Assignment			Connectors	PIN Assignment
Series A Plug	Contact Number	Signal Name	Typical Wiring Assignment	Mini-B Plug (5 PIN)	Contact Number	Signal Name	Typical Wiring Assignment
	1	VBUS	Red		1	VBUS	Red
	2	D +	White		2	D +	White
	3	D -	Green		3	D -	Green
	4	GND	Black		4	D	Not Connected
	Shell	Shield	Drain Wire		5	GND	Black
					Shell	Shield	Drain Wire
Series A Plug	Contact Number	Signal Name	Typical Wiring Assignment	Mini-B Plug (4 PIN)	Contact Number	Signal Name	Typical Wiring Assignment
	1	VBUS	Red		1	VBUS	Red
	2	D +	White		2	D +	White
	3	D -	Green		3	D -	Green
	4	GND	Black		4	GND	Black
	Shell	Shield	Drain Wire		Shell	Shield	Drain Wire

Changzhou Huasheng Futao Photoelectric Science &Technology Co., Ltd. is located in Wujin Hi-tech Industry Area. The factory area is 32 mu and building area is about 20000 square meters. It has predominant geographical location and very convenient transport facilities. The Yanjiang express way and huning express way are nearby.

For years, we dedicate to the cooperation with China Science & Technology University, established the laboratory for the plastic optical fiber devices and national application engineering for the research and development of HDMI cables, Toslink and other different AV cables. Meanwhile, we import the professional equipments and technology from Japan and Germany for the production of PV Ribbon, PV Intelligent Junction Box and PV cables. These products are widely used in solar field.

We aim at the faith of "quality is the cornerstone of company's existence, customer's requirement is the standard". In order to improve products' quality, we establish advanced testing laboratory. We use ISO9001 quality procedures and passed TUV and UL certificate. We advocate the culture conception of "keep improving and reinvent continuously". We believe we can contribute to the energy conservation and environmental protection.

It is our honor to have you to grow with our company!
