Product Specifications
| Prod Model: |
GYTA53 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
RoHS |
| Connection Structure: |
Cable |
Product Description
Cable Description

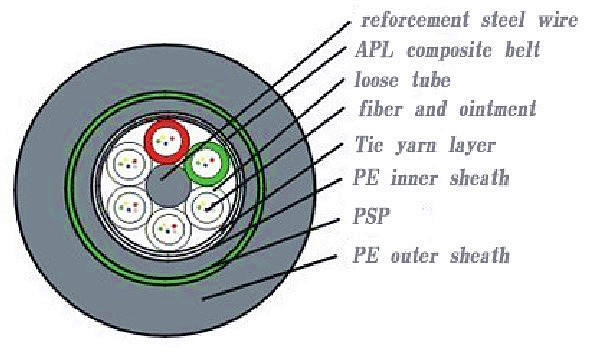

The structure of GYTA53 mode optical fiber is put SM or MM fiber into the high modulus plastic maded buffer tuber, filled The longitudinal resistance of carbohydrate in tuber. Center of fiber cores is an metally reinforcement core. Some cables should added A layer of polyethylene. The tuber round the central reinforcement core and wisted into closed round cable cores. The room of cable cares should filled the waterproof material. Filled polyethylene on the APL and PSP to be the optical fiber.
Cable features
1. Fiber optical transmission low loss, low dispersion
2. Reasonable design and accurate control of optical length, make the cable has good mechanical property and environment performance.
3. Waterproofing layer providing strong water-resistance performance.
4. Steel tape with PE outer sheathing and metallic strengthening member enhancing anti-crush and tensile property of cable.
5. Light weight, convenient laying
6. Good performance of cable flexibility and resist curve.
7. We take the following measures to sure the cable good water performance:
Single steel wire reinforcement.
Filled the special cream in the tube.
100% cable cores filled
APL and PSP improved the cable Prevention through tidal power and high quality waterproof material prevent the water enter into from lengthways
|
Quantity of cores (cores) |
2-36 |
38-72 |
74-96 |
98-120 |
122-144 |
|
Diameter (mm) |
14.2 |
16.2 |
17.9 |
19.6 |
21.4 |
|
Weight (kg/km) |
230 |
290 |
325 |
406 |
446 |
|
Allowed tension (long term/short term) |
1000/3000 |
1000/3000 |
1000/3000 |
1000/3000 |
1000/3000 |
Allowed lateral pressure
(longterm/short term,N/10cm ) |
1000/3000 |
1000/3000 |
1000/3000 |
1000/3000 |
1000/3000 |
