Product Specifications
| Prod Model: |
GH1602-2201 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Gh1602-2201 |
| Gh1602-2201: |
COB |
| Display Type: |
Stn,Negative or Positive ,Transmissive |
| Outline Dimension: |
80.00*36.00*12.00 |
| Controller: |
St7066u |
| Backlight: |
Backlight |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Infrared |
| Type: |
Character |
| Display Technology: |
COB |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
Product Description

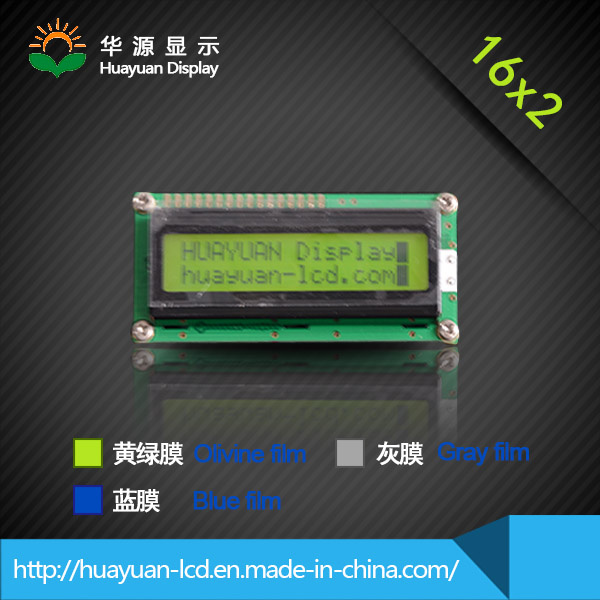

Model: GH1602-2201
ConstructionCOB
Display TypeSTN, Negative or Positive, Transmissive
Operating Voltage (VDD)3.3V, 5V
Backlight Voltage(VBL)3.3V, 5V
Operating Temperature (degree Celsius)-20º C~70º C
Storage Temperature (degree Celsius)-30º C~80º C
Viewing Direction6: 00
Dot Matrix16*2
Viewing Area64.50*16.40
Active Area56.05*11.55
Outline Dimension80.00*36.00*12.00
ControllerST7066U
BacklightLED, Y-G, White
| Model: | GH1602-2201 |
| Construction | COB |
| Display Type | STN,Negative or Positive ,Transmissive |
| Operating Voltage (VDD) | 3.3V,5V |
| Backlight Voltage(VBL) | 3.3V,5V |
| Operating Temperature (degree Celsius) | -20~70 |
| Storage Temperature (degree Celsius) | -30~80 |
| Viewing Direction | 6:00 |
| Dot Matrix | 16*2 |
| Viewing Area | 64.50*16.40 |
| Active Area | 56.05*11.55 |
| Outline Dimension | 80.00*36.00*12.00 |
| Controller | ST7066U |
| Backlight | LED,Y-G,White |
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
