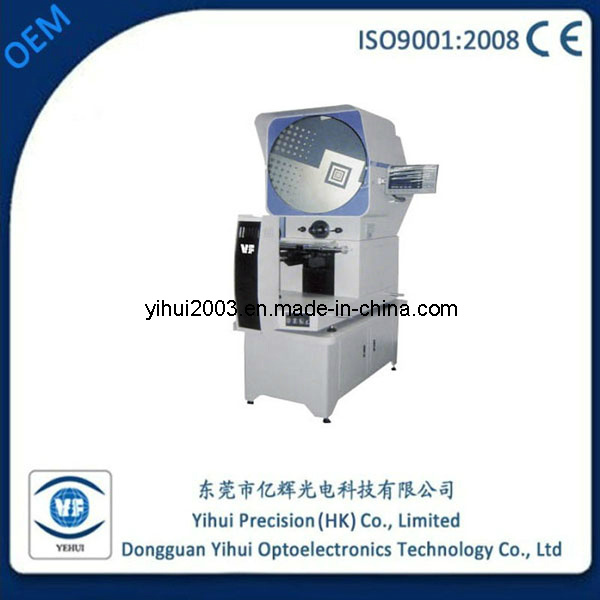

Calibration Machine Measurement Tool (CPJ-4025W)

Name: Calibration Machine Measurement Tool (CPJ-4025W)
Brand: china-manufacturer-directory.com
SKU: 710010045
Availability: InStock
Rating: 4.4 (150 reviews)

Supplier:	Dongguan Yihui Optoelectronics Technology Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	CPJ-4025W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Calibration Machine Measurement Tool:	for Profile Measure and Inspection
Certification:	ISO, CE
Application:	Machinery, Cutter, Mould, Electronic etc
Screen Size:	400mm
Testing Travel:	250X150X100m
Accuracy:	<=(4+L/200)Um
Resolution:	0.001mm
Dimension:	1215X646X1210mm
Package:	Vacuum Packaging and Free Fumigation Wooden Case
Warranty:	12 Months
Weight:	100-500Kg
Power Source:	AC110V
Type:	Measuring Instrument

Product Description

No Difficult Products to Test in the World!

Calibration Machine Measurement Tool (CPJ-4025W)

Usage:

1. To measure mechanical parts(like the length, angle, contour or surface shape)
2. To inspect surface and complicated work-pieces(such as cam, screw thread, gear and so on )
3. To be used in meter, electron, aerospace machinery, light industry, research institute and measurement- -inspecting department.

"Established in 2003, professional manufacturer of measuring machine. "

12 months warranty. Buy with confidence!

1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.

2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.

3. We provide life warranty services of machine for users with cost.
01. If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
02. But if needs our technician come to customer side for training, technical service is free, except ticket and accommodation.

4. Extra warranty period: We will provide to user long-life after-sale advisory service.

5. Our company has spare parts which can be provided for the users with cost.

6. We provided users with after-sales value-added technical service by preferential price for life, such as technical upgrades and retrofit.

We also produce: Video Measuring Machine (VMS), CMM etc.

Welcome to visit our factory!

Working table	Work table' s size(mm)	450*200
	X-axis travel(mm)	250
	Z-axis travel(mm)	150
	Y-axis travel(mm)	100(for focus)
	Turning range	± 15°
	Resolution(X-axis, Z-axis)	0.001mm
	The indication error of coordinate(µ m)	< =(4+L/200)
Dimension	LWH(mm)	12156461210
Weight	Unit: kg)	240
Projector screen	Screen size(mm)	Ø 400
	Screen rotary range	0° ~360°
	Ratory angle Resolution	1´ or 0.01°
Lens	Magnification		10(option)	20X(option)	50X(option)	100X(option)
	Object view(mm)		Ø 40	Ø 20	Ø 8	Ø 3
	Working distance(mm)		103.9	95.1	65.7	35.0
Data processing system	DC-3000 multi-function data processing system, appearing in chinese, can be used to gather the data and measure the point, line, circle, angle and distance
Illumination	Transmission: 24V/150W, cooling by fans. Reflection: 1V/150W, illuminated by two fibers, cooling by fans.
Power	110V/220V(AC); 0/60HZ; Total power=400W
Option	Mini-printer, Edge detector, M2D software and so on, please refer to Accessories for measuring projector for more details.

Dongguan Yihui Optoelectronics Technology Co., Ltd. was established in 2003, which is a high-tech enterprise with the precision measuring equipment R&D, prodution and sales. Our main products are: Video measuring machine, optical projectors, CMM, tool microscope etc. It is widely used in electronics, plastics, mold, machinery, hardware, clocks and connectors, mobile and other industries.

At present, our company have passed ISO9001 and CE Certificate. What's more, we has more than 30 design patents, and got the sofware copyright registration certificate awarded by the state intellectual property office.

"Customer oriented, quality first, standardized management, continuous transformation" is our company's operating philosophy. Base on leading technology, excellent quality and scientific management makes our company recognized by our customers.

Our Target: No Difficult Products To Test In The World!
