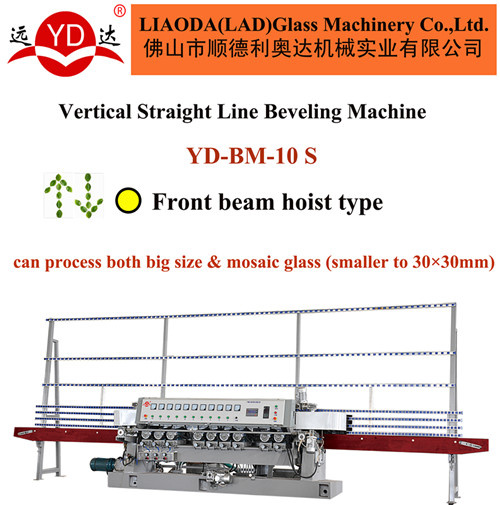

Vertical Straight Line Beveling Machine
Glass Machine Specifications
(1). single chip controller
(2). 10 wheels with pneumatic polishing
(3). High effeciency synchronized feed spindles
Glass machine
1. Thanks to pneumatic adjusting for polishing wheel, the machine can polish glass with fine and clear surface.
2. With single chip controller, all processing data are set and adjusted on the screen, which greatly facilitate production.
Here are the basic information:
Module: YD-BM-10S
A. Wheel number: 10pcs
B. Power: 23.5KW
C. Weight: 3500kg
D. Pressure: 6kg/cm2
E. Glass thickness: 5-19mm
F. Bevel angle: 3-30 degree
G. Max. bevel width: 35 mm
H. Glass speed: 0.8-3 m/min
I. Min. Glass size: 30x30mm
J. Out dimension: 7.2x1.2x2.6m
K. Compress air consumption: 1It/min
| Model Number | YD-BM-9 | YD-BM-10 | YD-BM-10S | YD-BM-10-45 | YD-BM-11 | YD-BM-13 |
| Total nr.of spindle | 9 | 10 | 10 | 10 | 11 | 13 |
| Glass thickness(mm) | 5~19 | 5~19 | 5~19 | 5~19 | 5~19 | 5~19 |
| Min.glass size(mm) | 150×150 | 150×150 | 30×30 | 150×150 | 150×150 | 150×150 |
| Bevel angle(degree) | 3~30 | 3~30 | 3~45 | 3~30 | 3~30 | 3~30 |
| Max.bevel width(mm) | 35 | 35 | 35 | 35 | 35 | 35 |
| Glass speed(m/min) | 0.8~3 | 0.8~3 | 0.8~3 | 0.8~3 | 0.8~3 | 0.8~3 |
Compressed air
Consumption(It/min) | <1 | <1 | <1 | <1 | <1 | <1 |
| Power(kw) | 21 | 23.5 | 25 | 23.5 | 25 | 30 |
| Outer dimension(m) | 7.0×1.2×2.6 | 7.2×1.2×2.6 | 7.2×1.2×2.6 | 7.2×1.2×2.6 | 7.2×1.2×2.6 | 8.0×1.2×2.6 |
| Weight(kg) | 3000 | 3500 | 3500 | 3500 | 4000 | 4500 |
Guarantee And After-sale Service:
One year guarantee for whole machine.
24 hours technical support by e-mail.
Ues-friendly English software,user manual and detailed Videos/CD.
We will provide all spare parts needed for maintenance of the equipments.
Profrofessional after-sales service team support face-to-face trainning and installation to customer's factory.
Why choose Ladglass?
1.Widely used in different industry
2.High precision and reputation
3.CE Certificate High quality parts
4.Competitive price
5.Fast delivery
6.Best service
Welcome your inquiry and we will try our best to help you choose a right machine!
