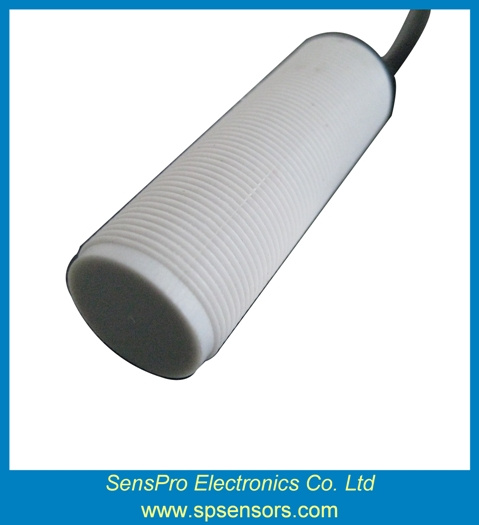

Capacitive Proximity Switch (SPXCC18)

Name: Capacitive Proximity Switch (SPXCC18)
Brand: China-Manufacturer-Directory.com
SKU: 607840814
Availability: InStock
Rating: 4.8 (148 reviews)

Supplier:	SensPro Electronics Co., Ltd.
Price:	Negotiable
Min Order:	200ea
Quantity::
Trade Terms:	International courier

Product Specifications

Prod Model:	SPXCC18
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Principle:	Capacitive

Product Description

Features:
- Cylinder shape
- DC 3-wire (10-30V DC)
- Plastic case for general automation industry
- Unshielded mounting method

Applications:
- Common application is as a liquid level control in a bin or hopper.

Specification
Detecting Distance	10mm (IRON Connected Earth)
Mounting Mode	Unshield
Connection	Cable Type (DC 3cores Dia. 4mm)
Supply Voltage	10-24VDC
Output Mode	NPN, PNP
Output Type	Normal open
Sensitivity Adjustment	Multi - turns volume
Output Current (MAX)	100mA
Current Consumption	8mA
Leakage Current	< 0.1mA
Residual Voltage	< 1.5VDC
Response Frequency	50Hz
Reverse Polarity Protection	Equipment
Short Circuit Protection	Equipment
Hysteresis	10%
Ambient Temp/ Humidity	-25°C to 55°C / 25% to 90% RH
IP Protection Category	IP66
Size (L/W/H)	Dia. / L M18/75

SensPro Electronics supplies OEM pressure (static and differential), temperature, proximity and photoelectric transducers, sensors as well as module, components, assemblies and sensor based products manufactured in China but meeting international standards.

SensPro Electronics has rich experience in designing and manufacturing sensor and sensor based products.

We design and manufacture:
* Sensor solutions for pressure and position
* Prompt response to inquiries
* competitive prices
* Professionlism, Effectiveness, Quality

We can meet customers requirements on perfomance and cost. SensPro is continuously focusing on innovation to meet our customer's changing requirements, while keeping the world in harmony with the environment.

SensPro Electronics offers one year warranty to the original purchaser. It will be replaced free of charge for any defective not including sensors being modified, misused, neglected or installed where the application exceeds published ratings.
