Product Specifications
Product Description

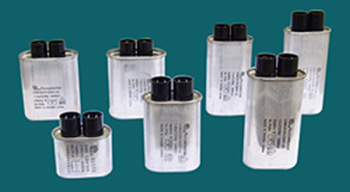

1. Purpose: Applicable in micro wave 50 Hz to 60 Hz a. C. Power line. It can work constantly under rated conditions.
Standard: The structure and performance of the capacitor are in accordance with National GBT18939-1 standard, International IEC61270-1996 standard and European DIN. EN61270-1 standard
1. Nominal
Rated voltage: 1500V-2600V. AC
Rated capacity: 0. 2μF-1. 5μF
Capacity deviation: ±3%
Loss tangent: <0. 0035
Rated frequency: 50/60Hz
2. Working environment
Working temperature: –10—+85℃ Relative humidity: 45%—85% Atmosphere pressure: 85/21
3. Behavior of electricity
Measuring voltage Pole-pole Rated voltage ×4. 3 times VDC/10S
Pole-Shell 9000V. AC/10S
Insulation resistance Pole-pole 10MΩ±2 MΩ
Pole-Shell >3000MΩ
4. Certification: CQC VDE (Remarks: It can be made to order for special specifications and overall dimensions)
Set up in 1984, Ningbo Bicai Industry Co., Ltd., with over 1000 workers, floor space 33, 000 square meters and building area 38, 000 square meters, is a professional enterprise of electronic component.
The company is located in Ningbo City, one of the largest port cities in east of China. The major products are capacitor, thermocouple, electromagnetic valve, and protecting device of extinction. Thanks to our exquisite technology, reliable quality and high quality service, we now enjoy high reputation both in domestic and overseas markets. Our annual sales volume increases steadily. In 2005, it is expected to be RMB 230 million.
