Anhui safe electronics Co., Ltd.Has obtained ISO9001 quality system certificate.
SGS certificate and VDE/TUV/UL/CQC relevant products certificate.The company
Has a young active and experience research team.It has owned 5 patents for inventions and many utility patents.It has developed many inventions and utility patents, and established a longterm cooperation with anhui province engineering research center for optoelectronic applications.In 2012 our company was awarded"national hi-tech enterprise".
air conditioner capacitor
fan capacitor
oil capacitor
motor capacitor
IGBT capacitor
CBB65 capacitor
CBB61 capacitor
aluminum case capacitor
anti-explosion capacitor
inverter welding capacitor
Technology and performance characteristics
1) compliance with standards:IEC 61071, IEC 6188
2) operating temperatures(case):-40°C to +70 °C
3) storing temperature:-40°C to +85 °C
4) hotspot:+70 °C (oil), +85 °C (dry)
5) capacitance tolerance:±5% or ±10%
6) test voltage terminal to terminal utt:(1.3-1.5)un for 10 seconds
7) test voltage terminal to case utc:(2un+1000)VAC-50Hz for 60 seconds
8) permissible relative humidity:75%annual average<=on 30days/year
9) IEC climatic category IEC:40/85/21
10) capacitance deviation in the operating temperature range of -25 °C to +70 °C:
±1.5%max on capacitance value measured at +20 °C
11) case components:Aluminium, plastic, 304 stainless steel
12) terminals:Tinned brass nut or screws
13) installation:Whatever position
14) life expectancy:>=100 000hours at un
Below products are normal and made by our own factory.
We also can according to clients' requirement.

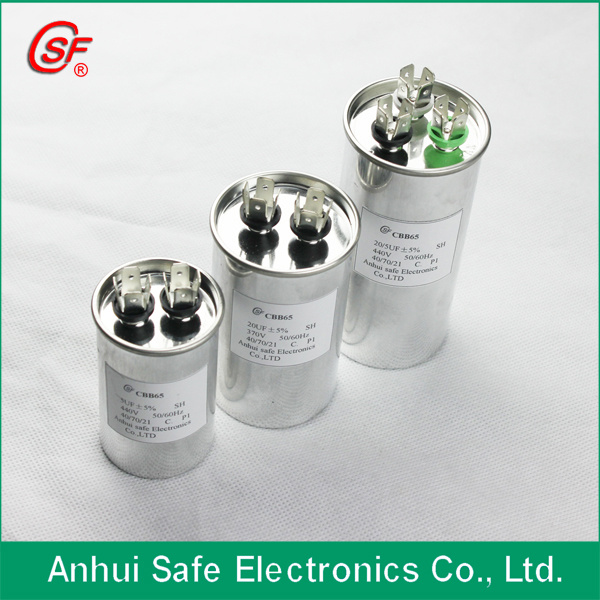

A)AC motor capacitor
Modelcbb65cbb60cbb61
Materialmetalized polypropylenemetalized polypropylenemetalized polypropylene
Fillingoilresin/oilresin
Canmetalplastic/metalplastic
Capacitance range3-100UF3-30UF1-16UF
Voltage range200-500VAC200-500VAC200-500VAC
Security levelp2/p1p0p0
Operating temperature-40°C to +70°C/85°C -40°C to +70°C/85°C -40°C to +70°C/85°C
Anticipated operating life3000h(class c) 10000h(class b)
Standard GB/ t3667-2008 IEC 60252 IEC 61048/61049
B)capacitors for AC application
Modelmkpmkp-3pbkmj
Materialmetalized polypropylenemetalized polypropylenemetalized polypropylene
Phases133
Fillingresinresin/oiloil
Capacitance range3-470UF3X5-3X100UF5kvar-100kvar
Voltage range300-850V RMS450-850V RMS200-500V RMS
Operating temperature-40°C to +85°C-40°C to +85°C-40°C to +85°C
The application of occasion(input/output AC filter, buffer and so on)
(low voltage reactive
Power compensation)
C)power electronics capacitors
D)DC-link capacitor(photovoltaic wind power cylinder)
E)DC-link capacitor(inverter welding machine)
F)DC-link capacitor(oil type)
Pls don't hesitate to contact me.
More information you can visite our website:www.capacitorfilm.com
|
Model |
CBB65 |
CBB60 |
CBB61 |
|
Material |
Metalized polypropylene |
Metalized polypropylene |
Metalized polypropylene |
|
Filling |
Oil |
Resin/Oil |
Resin |
|
Can |
Metal |
Plastic/Metal |
Plastic |
|
Capacitance range |
10-120uF |
1-30uF |
1-16uF |
|
Voltage range |
200-500VAC |
200-500VAC |
200-500VAC |
|
Security level |
P2/P1 |
P0 |
P0 |
|
Operating Temperature |
-40°C to +70°C/85°C |
-40°C to +70°C/85°C |
-40°C to +70°C/85°C |
|
Anticipated operating life |
3000h(Class C) |
10000h(Class B) |
|
Standard |
GB/ T3667-2008 |
IEC 60252 |
IEC 61048/61049 |
Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.

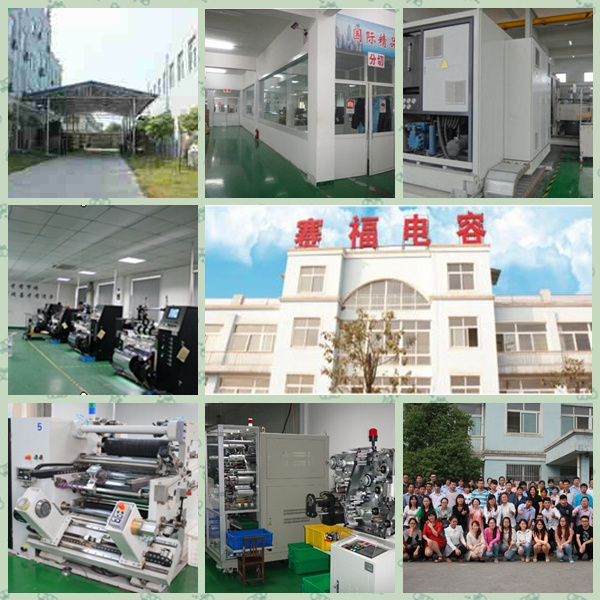

Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.
The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.
With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.
Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.
"good faith, serving the whole world" is our principle.
