Capacitor Y1

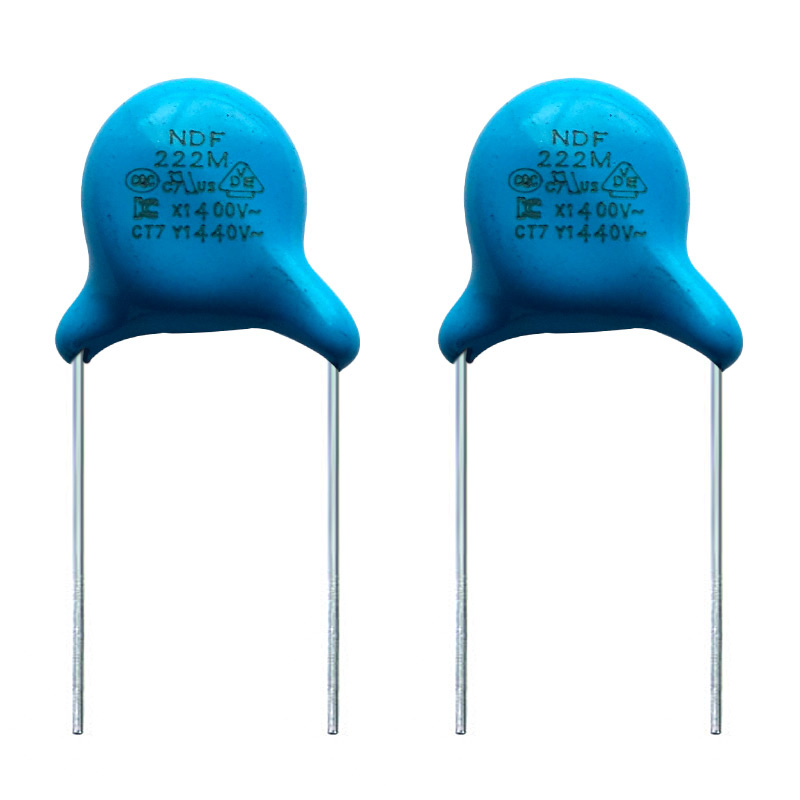

Name: Capacitor Y1
Brand: China-Manufacturer-Directory.com
SKU: 768211315
Availability: InStock
Rating: 4.6 (88 reviews)

Supplier:	Zhengli Group Company Limited
Price:	US $ 0.027-0.07/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	DCF Y1/X1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dielectric:	Ceramic
Capacitance Range:	101 ~ 472
Capacitance Tolerance:	10% 20%
Dissipation Factor:	2.5%
Rated Voltage:	400VAC 250VAC
Voltage Proof:	4000VAC
Temperature Characteristic:	Y5p, Y5u, Y5V
Flame Retardant:	UL94V-0
Insulation Resistance:	10000m Ohm
Application:	Automobile
Package Type:	Through Hole
Type:	Ceramic Capacitor
Capacitance:	101 ~ 472
Electrolyte:	Ceramic
Filter:	Ceramic

Product Description

Type DCF ac disc ceramic capacitors

1.Features and uses
The ac disc ceramic capacitors have dielectric of high dielectric constant ceramic and encapsulation of flame retardant epoxy .these capacitors are used in circuits of noise suppression circuit of power supply for general electronic equipment , and may be used as antenna coupling , crossing and bypass circuit .

2.Applies to the standard
GB/T 14472 fixed capacitors for electromagnetic interference suppression and connection to the supply mains

3.Specification

No	Item		specification
1	Operating temperature		-40 ~ 125ºC
2	capacitance(Cr)and dissipation factor testing condition		25ºC ,1Vrms,1KHZ
3	Dissipation factor(tgδ)		tgδ≤2.5%
4	Subclass	X1,Y1,Y2	Y2	Y2/X1	Y1/X1
5	Rated voltage(Ur)	250,400VAC	250	X1:400 Y2:250	X1:400 Y1:250
6	Voltage proof	1500,2500,4000VAC	1500	2500	4000
7	Insulation resistance(IR)		IR≥10000MΩ(500VDC)
8	Temperature characteristic		Y5P,Y5U,Y5V
9	Flame retardant epoxy		UL94V-0

4.Recognized standards and certificate

Safety organization	Recognized Standard	Certificate Series Numbers	Approved monogram
UL	UL414	E465278		USA
CUL	UL414	E465278		Canada
VDE	DIN EN 60384-14(VDE0565 Teil 1-1):2006-04; EN 60384-14:2005-08 IEC 60384-14(ed. 3)	40041523 40041521		Germany
KETI	K60384-1(2006-12) K60384-14(2006-12)	SU03074-14002 SU03074-14001		Korea
CQC	GB/T 14472-1998	CQC14001119739 CQC14001119741		China

5.Capacitance & dimension chart

Series	Dimension(mm)		Temperature characteristic			Lead space F(mm)	Lead style	Taping style
	Diameter Dmax	Thickness Tmax	Y5P(B)	Y5U(E)	Y5V(F)
	Diameter Dmax	Thickness Tmax	Nominal capacitance(pf)
Y2	6.8	4.0	10~470	1000	1000~1500	5.0±1.0 7.5±1.0	L , K , P	F , V
	7.8		560~680	1500	2200
	9.0		820~1000	2200	3300
	9.8		1200	3300	4700
	10.5		1500		6800
	11.5		1800	4700
	12.3		2200		10000
	13.0		2700	6800		7.5±1.0		Y
	14.0		3300
	14.7		3900	10000
	16.5		4700
Y2/X1	6.8	5.0	100~270	470~680	1000	7.5±1.0	L , K , P	Y
	7.8		330~470	1000~1500	1500
	9.0		560~680	1800	2200
	9.8		820~1000	2200	3300
	11.5		1200	3300	4700
	12.3		1500
	13.0		1800		6800
	14.0		2200	4700~5000				V
	14.7		2700		10000
	15.5			6800
	16.5		3300
Y1/X1	6.8	6.0	47~220	470	1000	10.0±1.0	L , K , P	U
	7.8		270~330	680	1500
	9.0		390~470	1000	2200
	9.8		560~680	1500
	10.5		820	2200	3300
	11.5		1000
	12.3				4700
	13.0		1500
	14.0			3300
	14.7				6800
	15.5		2200	4700
	18.0		2700		10000
	19.5		3300	6800
Capacitance tolerance			±10%	±20%	±20%

Zhengli Group Co., Ltd. is a large group company, founded in 2006. It is dealing with capacitors and resistors, including disc ceramic capacitor (50V~15KV ), film capacitor, ZVR zinc oxide varistor, NTC thermistor, safety capacitor ( Y1, Y2, X1 ), safety capacitor (MKP-X2 ).

Offering Capacitors and Resistors for 9 Years

Founded in 2006, Zhengli group co Ltd holds an area of 10, 000 square meters and employs 300 staff, including 20 R&D engineers and 20 QC staff with 10 years' experience. Our main product categories are ceramic capacitor (50V-15KV), film capacitor, ZVR zinc oxide varistor, NTC thermistor, safety capacitor ( Y1, Y2, X1 ), safety capacitor (MKP-X2 ). Our products are widely used on electronic products, such as large or small household electric appliances, power supplies, chargers, communication equipment, computers and peripherals, and lighting appliances.

Large Monthly Capacity to Complete Volume Orders Rapidly

We own 17 automatic production lines and have developed a three-stage production line for AC ceramic capacitors (Y type) by ourselves. Our automatic production is ahead of most manufacturers in mainland China, producing 20 million AC ceramic capacitors (Y1/X1, Y2/X1), 5 million AC film capacitors (MKP-X2), 5 million metallized film capacitors, 5 million ZVR zinc oxide varistor & NTC thermistor and 5 million high-, medium- and low- dielectric ceramic capacitors each month. Because of our hard work, we have obtained three innovation patents and 13 utility patents.

Meeting International Standards like UL and VDE

We have a complete range of certifications regarding product safety, environmental protection and company management. For safety, we have UL, cUL, VDE, ENEC, CQC, SEV, SEMKO, NEMKO, DEMKO, and FIMKO approvals. Our company is also ISO 9001: 2008- and ISO 14001: 2004-certified. Based on QC 080000: 2005 regulations, we have established a Hazardous Substance Process Management System to restrict hazardous substances. All of our products are compliant with the RoHS and REACH Directives plus our ceramic capacitors are free of halogens, phthalates and polynuclear aromatic hydrocarbons. They have been approved by GB (China) and IEC as well.

Contact us now to see how Panasonic, Samsung, Vtech, TCL and Atech are benefiting from us.
