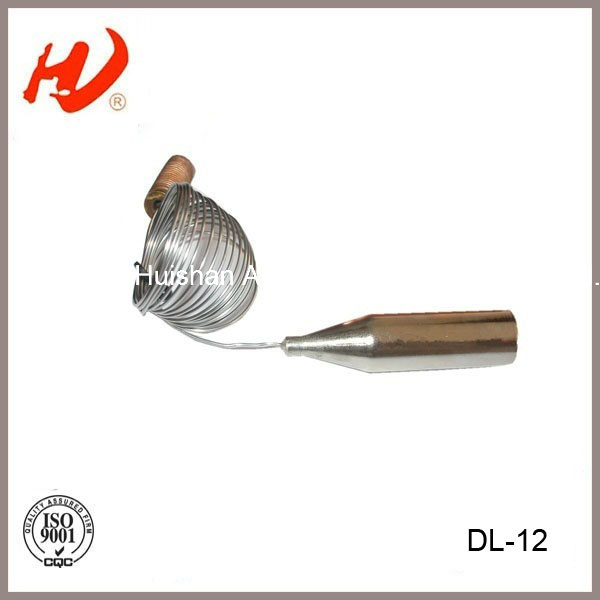

Capillary Sensors Dl-12

Capillary Sensors Dl-12
Supplier: Wuxi Huishan Automatic Controller Co., Ltd.
Price: Negotiable/Piece
Min Order: 1000/Piece
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Prod Model: DL-12
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capillary Length: 2000 Mm
Certification: CE
Type: Temperature Sensor
Control Type: Mechanical
Material: Copper
Usage: Thermostats
Display Type: Not Applicable

Product Description


Application :

This element  DL-12 capillary sensor is used to remotize the temperature sensor of a

standard thermostatic
head in order measure better room temperature.

Model DL-12
Material copper coated nickel
Capillary length 2000 mm
Temperature range 5-26 degree C
Extension 0.22 mm/K +/-5%
Bellows length at 20 degree C 32.35±0.3 mm
5-26 degree C stroke =4.62+/-0.23mm
Under pressure 12KG  bellows and bulb both can not have deformation
Wuxi Huishan Automatic Controller Co. Ltd., was founded in 1988. We are located in Wuxi city, which is 40 mins Far away From Shanghai by train. Financial and commercial center of China. After 20 years development, we have set up a new 8400m2 standard moredn workshop, equipped with advanced machinery and testing laboratory which enable us to be a professional manufacturer for temperature control porducts. 35% of our employees are mechanic and engineer and we are ISO9001: 2000 approved.

After 20 years continuous of developing, we have been producing high quality of room thermostats, thermostatic valves, thermostatic heads, liquid sensor for TRV, temperature and pressure safety valve, industrial thermostats, pressure switches, flow switches etc. We produce strictly according to the standard with a result that many products are CQC, EN215, CE, VDE, RoHS approved. With over 10 years export experience, we expanded our market to Europe, Middle East, North America, South America, and some of our customers are famous for international companies. We also offer OEM and ODM services to our customers, based on our strong technical force. For the same reason our customers are satisfied with our quality and service. Our production capacity is over than 3 million piecess. Looking forward to developing the market and technology togther with our overseas partners, and build up a mutual prosperous future.
