Capsule Filling Machine Supplier with High Production Capability
| Price: |
US $ 30000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

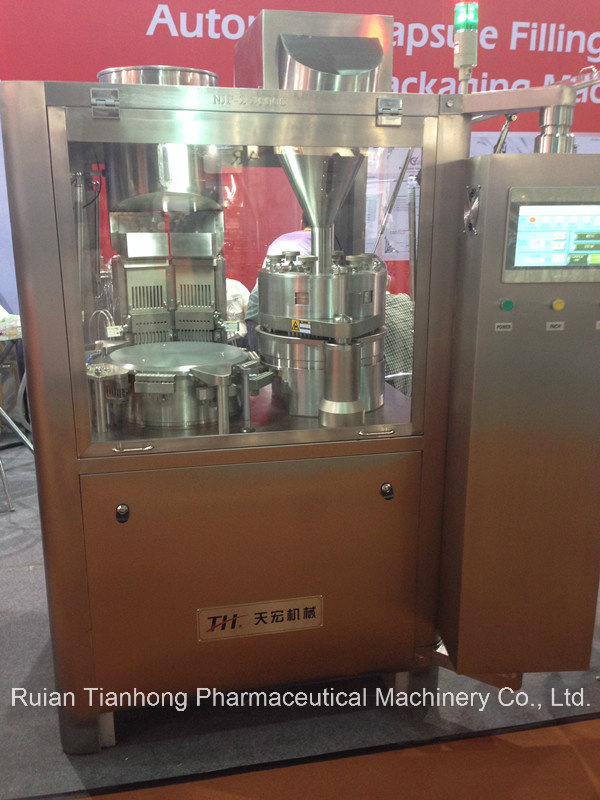

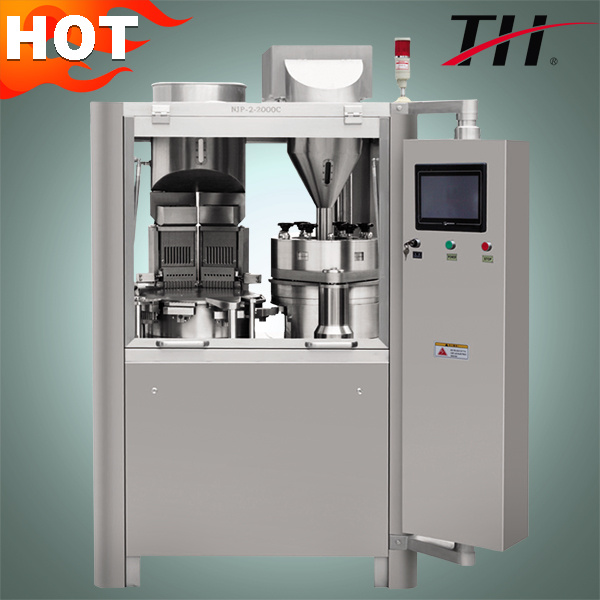

Pharmaceutical machinery automatic capsule filling machine
1. Capsule filler has passed CE certification.
2. Automatic capsule filling machine.
3. Automatic encapsulation machine.
1. Strength of TIANHONG machine
1)The automatic capsule filling machine has been improved the inner design turret, and TIANHONG imports 90 PCS beeling bearing for each machine from Japan directly, so that it can be sure a longer usage life and precision of the machine, while other manufacturers in China only use 40 PCS beeline bearings and the other 50 PCS equipped with copper cover.
2)The capsule filling machine's working station cam runs under the good lubricating condition, and maintains the inner lunbrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
3)The capsule filling machine adopts enlarged cam, TIANHONG has become the one who matched the cam of RU125 to RU 100, while it enhanced the stability of the machines and extends the life of the machine to a great extent. Other manufacturers in China us the cam of RU 100 to RU 100.
4)The capsule filling machine is controlled by the computer, has as stepless timing with the frequency conversion the numeral showing makes an easy operation and clear appearance.
5)The multi-bore dosing bring a precision dosage; The good capsule applicability makes a high capsules qualified rate more than 99%. It can be filled with the Chinese traditional medicine and the western medicine.
6)Add the extra function of capsule control switch. Control the capsule outside of the machine, it is more safely and quickly.
7)Add the click-moving control system, make and easier operation and clearness.

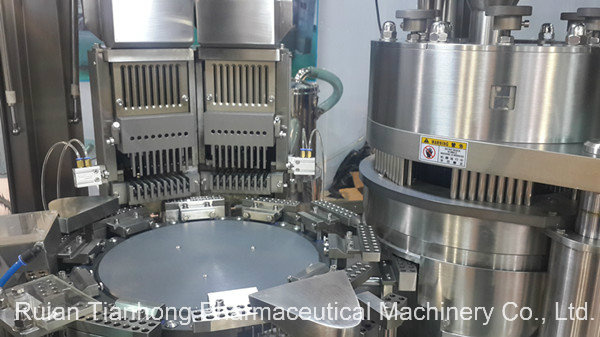

2. Machine consists of:
1)Touch screen control
2)Closed turret
3)Capsule magazine
4)Filling chamber
5)Capsule joining station
6)Dosing disk level adjusting switch
7)Flaw capsule rejection station
8)Filled capsule ejection station
Technical Parameters
|
| Model | NJP-2000 |
| Capacity | 120000capsules/hr |
| No. of segment bores | 18 |
| Machine weight | 1500kg |
| Machine Dimension | 1160*1250*1900mm |
| Power supply | 220/380V, 3 PHASE, 50/60 HZ (For customer to designate) |
| Motor power | Motor2.2kw vacuum2.2kw dust3kw |
| Vacuum | 63m 3 /h-0.04-0.08Mpa |
| Dust | 24.5Kpa 210m³ /h |
| Noise | < 80DB (A) |
| Making rate | Empty capsule 99.9%
Full capsule over 99.5% |
| Capsule size | 00#-5# |
| Filling error | ± 2.5%-± 3.5% |
| Prod Model: |
NJP-2-2000C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Ningbo/Shanghai Seaport |
| Delivery Time: |
About 20 Day |
| After-Sales Service Provided: |
Engineers Available to Serve Overseas |
| Type: |
Pharmaceutical Packaging Machinery |
| Finished Dosage Form: |
Capsule |
| Certification: |
SGS |
| Voltage: |
220V/380V |
