Product Specifications
Prod Model: |
MO-144D, CS-407 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
4.3 Inches |
Type: |
Monitoring System |
Technology: |
Pan / Tilt / Zoom |
Kind: |
Autofocus Lens |
Feature: |
High Definition |
Sensor: |
CCD |
Horizontal Resolution: |
420tvl |
Product Description

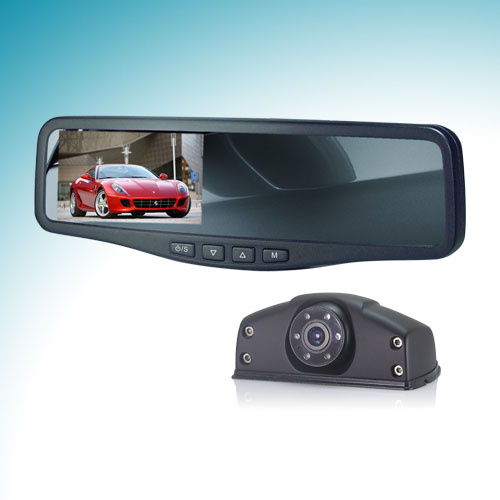

Car Reversing Camera System (MO-144D, CS-407)
Touch button monitor features-MO-144D:
Mounting position: Inner side of vehicle windshield (rear mirror position of vehicles)
Mirror viewing angle: Rear viewing angle adjustable
Shatterproof standard: 2.84G
Working condition: Performs in rugged conditions; Operating temperature: -20º C~+70º C
Distance label can be turned on or off, and can be adjusted up and down.
Backlighting for buttons: Automatic backlighting in dim light.
Backlighting for screen: Automatic backlighting when in dim light longer than 5s (Lighting brightness can be set up and saved)
Power supply for camera, easy installation.
Wide voltage input: Support 12V and 24V system
Mobile camera CS-407 features:
Flexible installation: Can be mounted on rear, front, or either side of vehicles
Convenient angle adjustment
Waterproof, shatterproof protection level equals to IP67.
Super wide viewing angle(150° )
Performs in rugged conditions. Operating temperature: -20º C +70º C
Mirror / Normal image Adjustment (depending on the chips)
Distance label selectable to be open or closed
Night vision available
IR distance: 5m
Audio available
Mobile camera features(PC1089):
Pixelplus 1/3", 500 TV lines, high definition CMOS sensor: PC1089K
With infrared lights; Night vision can auto switch to B/W mode
P/N available.
