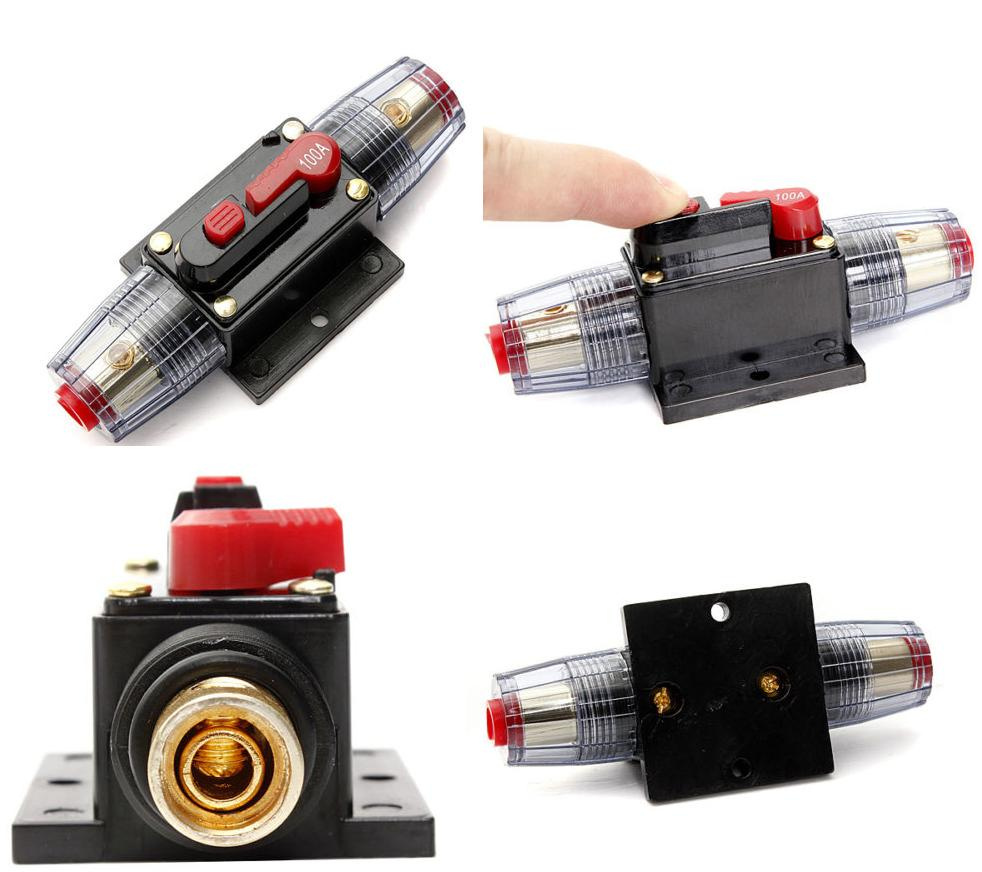

Car Stereo Audio Current Circuit Breaker with Inline Fuse Protector

Product Specifications

Prod Model:	Current Circuit Breaker-270
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Maiyu
Amperage:	100A
Circuit Breaker Type:	Thermally Responsive Bi-Metal Blade
Terminal Stud:	M6 (Accepts 1/4" Ring Terminal)
Maximum Voltage:	42V DC
Interrupt Capacity:	3000A @ 30V DC
Storage Temperature:	-34to 149centgrade
Operating Temperature:	-32 to 89 Centgrade
Circuit Breaker Class:	Type III Switchable/Manual Reset - Trip Free
Approval:	CE, IP67, SAE J1625, Sea J1171marine
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	SF6
Installation:	Fixed
Structure:	ACB
Poles Number:	1
Certification:	CCC

Product Description

Circuit Breaker - Surface Mount 100A

Features:
*Brand new and high quality
*Accepts 8 / 10 / 12 AWG
*Works with 12v-24v DC battery
*4mm in diameter input and output
*Ideal for car, marine, bost, bike, etc.
*Mount on Panel or Firewall
*Stops Power Surges from Damaging Your Amps
*Easy to operate with manual reset arm .
*Unique Push Button Reset can also be used as a Kill Switch
*Rubber boots for water protection
*No fuse change trouble.
*Size: 100x42x40mm(LxWxH)

Package Included:
1 X 100A Circuit Breaker

Rated current: 30 amp - 200 amp.
Rated voltage: 42 VDC Maximum
Breaking capacity: 3000 amp @ 30 VDC.
Ambient temperature: - 32 c to 89 c
Storage temperature: - 34 c to 149 c.
Test standard: SAE J1625;The SAE J1171
Tripping characteristics: (in the environment temperature is 25 ºC under the condition of jump performance)
100% current test: don't jump
Current test: 135% jump in about 30 minutes
Current test: 200% jump 4 to 25 seconds
Current test: 300% jump 1.6 4.8 seconds
Package Included:
1x 40A Circuit Breaker.


Provides medium duty circuit protection and switching
Thermal circuit breaker
For DC systems up to 42 volts
3000 Amps interrupt capacity
Easy to see Red reset lever shows open condition
"Trip Free" design cannot be held "ON" during fault current condition
Waterproof to IP 67 - protection against immersion to 1 metre for 30 minutes
Ignition Protected to SAE J1171, SAE J1625
Surface mount - connections are at the front
