Product Specifications
Prod Model: |
CGF18-18-6 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Function: |
Washing Filling Capping |
Control: |
PLC |
Machine Material: |
Stainless Steel 304/316 |
Capacity: |
2000b/H-20000b/H |
Type: |
Volumetric Filling Machine |
Automatic Grade: |
Automatic |
Material Type: |
Liquid |
Filling Valve Head: |
Multi-Head |
Dosing Device: |
Capacity Cup |
Structure: |
Rotary |
Packaging Type: |
Bottle |
Packaging Material: |
Plastic |
Filling Principle: |
Gravity |
Product Description

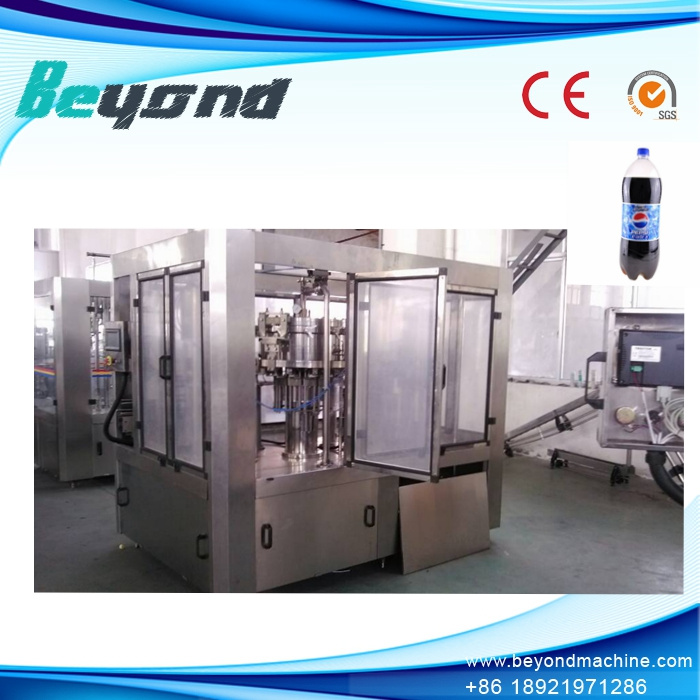

carbonated drinks bottling machinery
Applications:
1. The product line is mainly used in washing, filling and sealing carbonated beverage such as carbonated drinks, cola, iced tea and carbonated mineral water and so on.
2. All the line is composed by rotary washer, balanced pressure filler, screw type sealer and conveying system. The capacity is from 3000b/h to 40000b/h
3. The construction is advanced, the performance is stable. The operation and maintain are easy. And the speed can be adjusted infinitively and accords with the standards. It is an ideal choice for small and middle scale drink factories.
Description:
The three functions of washing, filling and capping are in one unit. Whole process is automatic it is used for filling carbonated drink, such as coca cola, pepsi-cola, sprite and other carbonated drink.
Main performance
1).Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isn't changed because of adopting hanging clamping bottleneck way.
2).Adopting clamping bottleneck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottleneck way in the whole conveying process. When bottle type change the board related with bottle diameter.
3).Opening valve is driven by cylinder. High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.
4).Screw capper adopts French advanced technology, which can screw cap promptly when clamping bottle.
5).The PLC and transducer are chosen from international famous brand, such as OMRON, MITSUBISHI and so on.
6).The whole process is automatic. The filling operation is faster and more stable because the new isotonic pressure filling operation of the new type is adopted.
7).it is convenient to operate with higher automation because cry part of the machine is inspected to run with photo electricity. The machine is an idea-preferred equipment for beverage makers.
Technical parameters
Model | DCGF18186 | DCGF24248 | DCGF323210 | DCGF404012 | DCGF505012 |
Head of washing, filling, sealing | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 |
Capacity (b/h) | 4000-6000 | 6000-7000 | 8000-10000 | 12000-15000 | 15000-18000 |
Suitable bottle diameter(mm) | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml |
Filling precision | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm |
Motor power | 3.84kw | 4.1kw | 5.6kw | 7.5kw | 11kw |
Filling pressure | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
Overall dimension (mm) | 2600×1900×2550 | 3100×2200×2800 | 3850×3000×2850 | 4850×3800×2750 | 5750×3550×2750 |
Weight(Kg) | 3650 | 4800 | 6800 | 8650 | 10500 |
Service Term
1. Installation
The initial installation is not included with the professional member. All installation with our team must be scheduled at least 4 weeks in advance before actual trip taken. All necessary connectivity must be ready prior the service being scheduled.
While our professional member arrives at the site for a completed and final installation, two days training course will be provide to the customer for operation and maintenance procedure. The initial installation is provided within 5 working days excluding travel days. The actual installation days many vary, based on different machine mode and packing lines. Each day of working hour consist at 8 working hours. Any additional day will be charge according to our service fee listed below.
When initial installation is being called for our professional member required, the surcharge will be made advance by the purchase at US$80/person/day plus all travel expenses. Travel expenses include documentation fees visa charge); local and destination transportation charges air, train, ferry, bus, taxi or any means of transportation required to arrive to/from destination); accommodation (minimum of 3 star hotel facility) and 3 daily hot meals.
2. Translator
If translator is required and can't be provided by purchaser then we will provide a translator for same charge as initial installation stipulated above. All communicate with our engineer should be in Chinese. Any translation provide by us will be based between English and Chinese only. Purchaser is responsible for the translation between local language and English.
Commercial Terms
1. Warranty
All parts are under One Year Warranty with defects from manufacturer. Any other defect caused by human error, mishandling, wear-and tear & any foreseeable conditions will not be covered by this warranty. All electronic parts and component can be guaranteed by original part's manufacturer or our company.
2. Payment
30% of the total contract amount is to be T/T into assigned account at the period of 5 working days after the Purchase contract is signed.
70% of the balance must to be made via T/T of the remainder balance amount of the purchase contract before the ordered equipment is to be delivered 10 working days prior of the shipment.
We also accept L/C payment, 30% down payment, and 70% L/C at sight
Connection:
Address: sanxing Industry park,
Zhangjiagang city, jiangsu province
Phone:+86 13962462093
Tel: +86-512-55398012
Fax: +86-512-55398012
Zhangjiagang Beyond Technology Co., Ltd. Has more than 15 years experiences on beverage filling and packing machinery. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry and automatic blow molding machine in China.
For beverage machine, our Main products including:
The capacity of 2000-- 40000 BPH for hot filling (juice and tea filling) and MID-temp filling and aseptic cold filling lines.
The capacity of 2000-- 40000 BPH for mineral water and purified water producing line.
The capacity of 2000 -- 36000 BPH for carbonated beverage and cold filling producing line.
The capacity of 1000_8000BPH for vinegar and alcohol producing line. The capacity of 100 -- 2000 TBH for 3 gallon and 5 gallon barrel producing line.
The capacity of 2000--10000 BPH for milk producing line.
All kinds of water treatment equipment.
PET perform inject and blowing-stretching machine.
Plate and tube UHT device, and CIP system.
We carry a strict quality management system in accordance with CE and ISO9001 requirements. We have established a complete processing line including design and manufacture and sale and after sale service. Our products are sold well around the world.
We are proud to adhere to our company slogan "Engineering Excellence". Please be free to contact us for more information and we are ready for making business relations with you in the near further.
