Carbonated Fillng Machine
Product Specifications
| Prod Model: |
DGCF32-32-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bottle Filling Machine Suitable For: |
Pet Bottle |
| Carbonated Drink Filling Machine: |
Connect with Carbonated Mixer |
| Carbonated Filling Machine: |
Product Soda Water, Carbonated Beverage |
| Automatic Grade: |
Fully Automatic |
| Structure: |
Rotary |
| Feed Cylinder Structure: |
Multi-Room Feeding |
| Material Type: |
Liquid |
| Type: |
Volumetric Filling Machine |
| Filling Valve Head: |
Multi-Head |
| Packaging Container Lifting Structure: |
Chute Lifting |
| Filling Principle: |
Pressure |
| Packaging Type: |
Bottle |
| Dosing Device: |
Surface Type |
| Packaging Material: |
Plastic |
Product Description

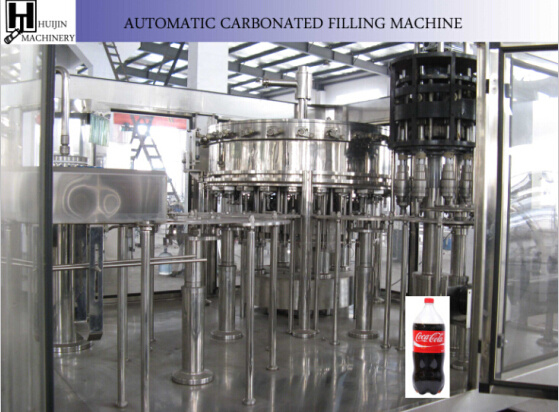

Bottle filling machine/carbonated filling machineThe machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others. 1) Model: DGCF32-32-10
2) Name: Rinsing, filling & capping machine
3) Rinsing heads: 32
Filling heads: 32
Capping heads: 10
4) Capacity: 10000 bottle per hour (for 500ml bottle)
5) Dimension: 3700mm(length)*2750mm(width)* 2900mm(height)
6) Suitable bottle: PET (sample provided by customer)
Diameter range: Φ50mm—Φ115mm
Height range: 160mm—320mm
7) Suitable cap: plastic anti-theft
8) Frequency converter: Mitsubishi
9) Main motor: 5.5kw
10) Rinsing water pressure: 0.06 MPa < P ≤ 0.2 MPa
11) Pressure of Liquid tank: ≤0.45Mpa
12) Weight: 8500kg
Zhangjiagang city Sanxing Huijin Machinery Co., Ltd was founded in 2000, specialized in manufactureing complete sets of wine and beverage filling machinery, We have concern in reseraches, production, sales as well as technical services.
Our products are suitable for PET bottles, tin cans, PET can, glass bottles, barrel and other types of packaging materials. We have filling machine for wine, grape wine, tea, juice, carbonated drink line, bottle and barrel line for mineral and purified water.
We also supply complete water treatment systems, pre-treatment of mixing system, UHT sterilizer system, bottle blowingmachine, label shrinkage applicator, date printer, shrinkage packing machine, carton packing machine etc.
With our mature technical strength and experiences, we can customize designes and services to meet indificual requirements of clients. Our company offers all kind of technical services, custom-make equipment layout design, answer customer technology consulting. Customer personnel training, technical and operational training and others services. We provide our clients a complete solution for factory setup and turn-key service.
Our main products:
2000-30000bph hot filling line (juice and tea)
2000-30000bph mineral water, purified water filling line
2000-20000bph carbonated drink line
1000-8000bph wine, vinegar, oil filling line
100-2000 bph 1 gallon, 3 gallon and 5 gallon barrel filling line
2000-10000bph bean milk, peanut milk production line
2-20ton per hour water treatment
