Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color Of Magnetic Strip: |
Black, Gold, Silver, Red, Green, Brown |
| Width Of Magnetic Stripe: |
8mm, 12mm |
| Type Of Magnetic Stripe: |
Loco 300oe, 650oe, Hico 2750oe, 4000oe, 6000oe |
| Function: |
Information |
| Material: |
PVC |
| Frequency: |
High Frequency |
Product Description

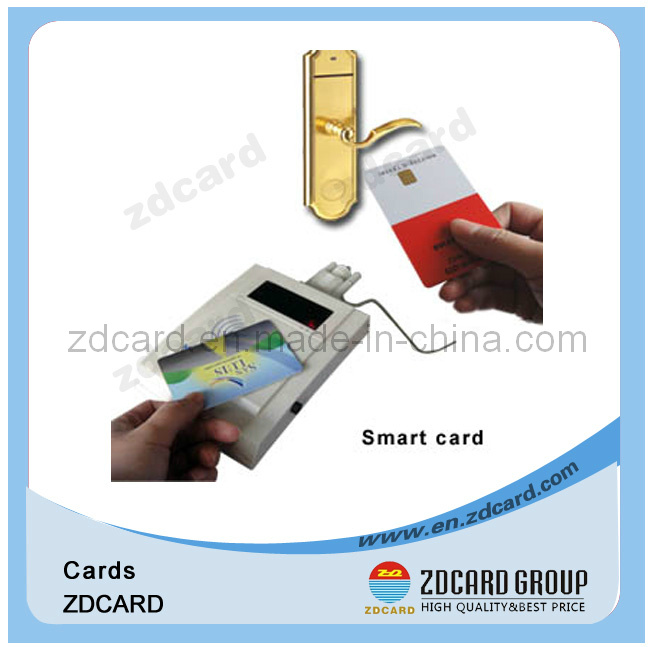

Product: Contactless Smart Card/ RFID card
Material: PVC/PET/ABS
Size: ISO CR80: 85.5mm X 54mm or customized size on your demand
Thickness: 0.76mm --1.8mm
Chip available: EM, 4200/4102 TK4100, T5567/5577 1k S50, 4k S70, compatible 1k Fudan F08/4k F32, Huada S50/S70, 512bits Ultralight, Desfire, UCODE, ICODE, Temic series
Printing: Offset printing/screen printing/Pantone color printing
Available craft: Magnetic stripe Hi-co or Lo-co, tipping, signature panel, photo, barcode, hot-stamping in gold/shiver color, scratch-off panel, series number, hole punching, matte surface, UV Printing, anti-counterfeit printing, metal card, ATM/POS/printer cleaning card etc.
Applications: Bank card, hotel key card, traffic ticket, insurance card, telecom phone card, VIP card, gift card, parking card, govement management card, ID card, access control card, express toll card, E-payment card etc
IC feature | - IC manufacturer: founded by Philips
- Wafer die: MF 1 IC S50/ MF 1 IC S70/ MF 1 IC S20
- Function: Read/Write protect by password
- 1k Memory: 1K-Byte EEPROM(16 sectors)
- 4k Memory: 4K-Byte EEPROM(32 sectors)
- S20 Memory:320 Byte
- Frequency: 13.56MHz
- RF protocol: ISO 14443A
- Modulation: ASK |
Card Key Feature | - Dimensions: CR80 85.60 x 53.98mm
- Thickness: 0.5mm, 0.84mm
- Material: PVC, PET,ABS,PETG,Paper
- RFID Card Surface: Matte/ gloss finish
- Housing: Lamination
- Working Frequency: 13.56MHz
- Reading Distance: 6cm typically
- Data storage time: 10 years
- Package: 200pcs per Inner Box; 20 Inner Boxes per Carton, each Carton gross weight at 28KGs |
Printing Option | - Full color offset printing
- Silk-screen printing
- Silver/Gold silk-screen printing background |
Additional crafts | - Magnetic Stripe Option: 300oe, 2750oe, 4000oe etc.
- Numbering: Jet dot/ Thermal transfer/ Laser engrave
- Barcode printing
- Signature panel |
Application | - Access control, time attendance, hotel management, transportation, library and campus, Parking lot system and Consuming system. |
Related products | - 1k, 4k card, ultralight card, compatible card, S20, Desfire, plus 2K ,I-CODE SLI Card etc
- rfid disc tag, rfid coin tag, rfid label , rfid inlay etc |
ZDCARD Group is based on Shenzhen Zhengdong Industrial Co., Ltd. After more than 10 year high speed development, we integrate R&D and production of smart cards, chips, and RFID. We supply system solution for R&D, application and project implementation. We also produce all sorts of transparent pre-printed package and large size plastic specialty printing. We are a national hi-tech multinational enterprise with annual sales volume over 200 million RMB.
We invested 300 million RMB on our own industrial zone covering 30, 000 square meters in Longgang District. The zone includes production and R&D of smart cards, RFID and PVC package, which is the biggest and strongest in the world. We are the production and research center of Sun Yat-sen University and we established Guangdong Zhengdong Chengxin Smart Technology Co., Ltd with Micro-Electronics Research Center of Sun Yat-sen University. There are 50 doctors, post-doctorals and professors working for us. Our national lab is an important R&D base of chip, COS, Smart City and logistic solution. Nowadays, our group is working with government to build up a Chinese Chip, Chinese Brain business strategy.
The production management is strictly in compliance with the ISO9001 quality management system and ISO14000 environmental management system and based on the specific features of the products, forming ZDCARD's own management model. ZDCARD is also characterized itself by its reasonable talents pool, integration of both the Chinese and western culture and confluence of wisdoms.
The super-scale production, flexible quality services and added value to our clients are our core
Business philosophy.
Cards Type and application: All kinds of ISO7801-compliant PVC cards such as pre-paid cards
Inquiry cards, bank cards and other magnetic stripe cards; Score cards, membership cards, gift cards and other bar code cards; Scratch cards; Smart cards such as healthcare, social security, public transportation and campus cards.
Equipment: 2 world's state-of-the-art Heidelberg4-olor offset printing presses, 2 automatic cutting
And laminating machines, 5 automatic scratch card stamping and packaging equipment, 2 magnetic mounting and writing devices, 5 convex code printers, multiple DOD and laser coding printers.
Main Customers: Wall-Mart, Carrefour, BESTBUY, McDonald and GOME in the retail/F&B sectors,
Holiday inn hotel, Vienna hotel, Sands rewards club; Beijing Tongren Hospital, Southern Air Force
General Hospital; Nigeria voter's card, Moscow subway cards, Iran subway tickets; Asia cell, Yemen
Mobile, China Mobile; Indonesia ID cards; South Africa Insurance cards.
