Product Specifications
| Prod Model: |
CT-C20M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Plain Weave: |
Plain & Twill |
| Mesh: |
2-200mesh |
| Delivery Time: |
10-30days |
| Dimension: |
Determined by Customer |
| Application: |
Construction Wire Mesh |
| Hole Shape: |
Square |
| Material: |
Ni-Alloy Wire |
Product Description
Carpenter alloy (Alloy 20)
Materials: Typical materials of Carpenter alloy (Alloy 20) wire mesh
| Nickel | Chromium | Carbon | Copper | Molybdenum | Manganese | Silicon | Columbium | Iron |
| 32.5-35% | 19-21% | 0.06% maximum | 3-4% | 2-3% | 2% maximum | 1% maximum | 1% maximum | 31-44% (balance) |
Weaving pattern: plain weave, twill weave
Key Properties:
1.Superior resistance to stress-corrosion cracking in boiling 20 to 40% sulfuric acid.
2.Excellent general corrosion resistance to sulfuric acid.
3.Excellent resistance to chloride stress corrosion cracking.
4.Excellent mechanical properties and fabric ability.
5.Minimal carbide precipitation during welding.
Typical Applications:
1.Chemical and allied industries
2.Food and dye production
3.Heat exchangers
4.SO 2 scrubbers and other severe environments
5.Tanks
6.Pickling racks
7.Valves

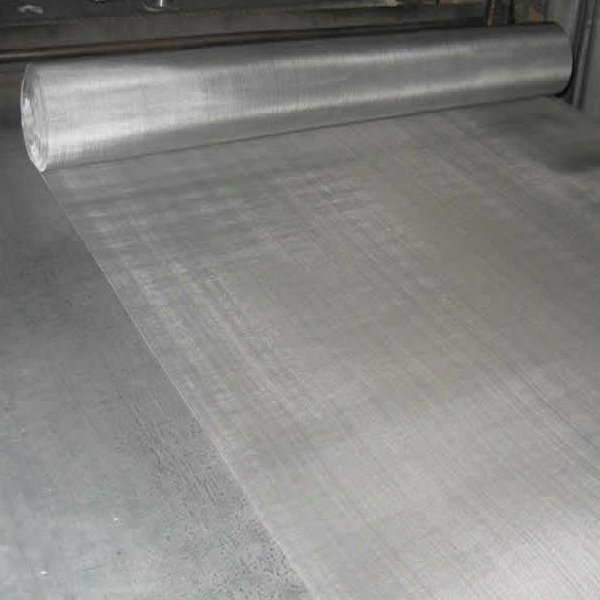

| Alloy20 Wire Mesh |
| Mesh/Inch | Wire Diameter(mm) | Aperture(mm) |
| 2 | 1.6 | 11.10 |
| 4 | 0.91 | 5.44 |
| 6 | 0.71 | 3.52 |
| 8 | 0.50 | 2.67 |
| 10 | 0.50 | 2.04 |
| 12 | 0.45 | 1.66 |
| 14 | 0.40 | 1.41 |
| 16 | 0.30 | 1.28 |
| 18 | 0.25 | 1.16 |
| 20 | 0.25 | 1.02 |
| 30 | 0.21 | 0.64 |
| 40 | 0.19 | 0.45 |
| 50 | 0.15 | 0.36 |
| 60 | 0.15 | 0.27 |
| 70 | 0.13 | 0.232 |
| 80 | 0.12 | 0.197 |
| 90 | 0.11 | 0.172 |
| 100 | 0.10 | 0.154 |
| 110 | 0.09 | 0.141 |
| 120 | 0.09 | 0.122 |
| 130 | 0.07 | 0.125 |
| 140 | 0.07 | 0.111 |
| 150 | 0.06 | 0.109 |
| 160 | 0.06 | 0.098 |
| 180 | 0.053 | 0.088 |
| 200 | 0.053 | 0.074 |
| Width and length determined according to customers' requirement |
Our factory is situated in Anping County which has long been known as Homeland of Wire Mesh in China, Started since 1989, this factory has rich experience in iron wire and wire mesh.
Our hot products and feature products: Galvanized wire, oval galvanized wire and automatic binding wire.
Base on our more than 10 years exporter experienced, we also can supply competitive price for other products:
Wire system: Black annealed wire, galvanized wire, including coil wire, spool wire, and U type tie wire, cutting wire, wire sack ties and so on.
Wire mesh system: Welded wire mesh, hexagonal wire mesh, black woven cloth, stainless steel wire mesh, brass wire mesh and so on.
We would like to win your long term businss by our high quality products and competitive price.
