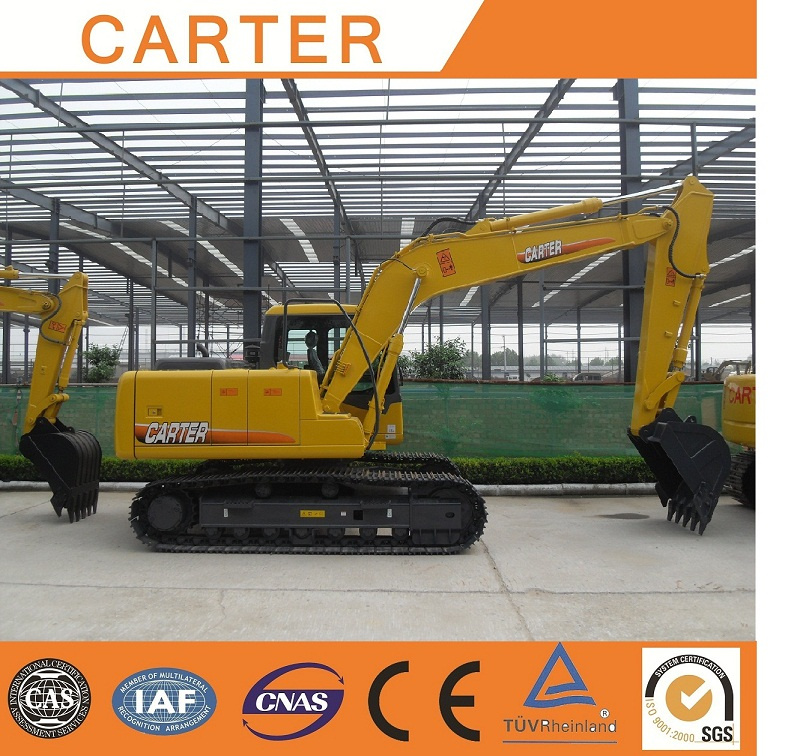

Carter Hot Sales CT150-8A Diesel-Powered Backhoe Excavator

Name: Carter Hot Sales CT150-8A Diesel-Powered Backhoe Excavator
Brand: China-Manufacturer-Directory.com
SKU: 749036735
Availability: InStock
Rating: 4.7 (39 reviews)

Supplier:	Shandong Carter Heavy Industry Machinery Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CT150-8A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium Sized Excavator:	Crawler Excavator
Type:	Crawler Excavator
Size:	Medium-Sized
Condition:	New
Certification:	ISO9001: 2000

Product Description

CT150-8C equipped with Isuzu engine and KPM hydraulic parts, have passed CE.

1. World first-class quality engine and hydraulic system ensure excellent performance of the machine;
2. Adopt multifunctional design to make users change accessory equipment such as wide and narrow bucket breaker, breaker and hydraulic clipper etc;
3. Cab installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system etc, not only make operation convenient, natural and precise, but also reduce working fatigue of operator;
4. GPS and remote diagnosis system ensure maintenance timely;

Engine					Travel System
Model		CUMMINS-B3.9-C115			Travel motors					KYB, Japan;
Type		Direct injection, water cooled, turbocharged			Support roller quantities					2×7
					Carrier roller quantities					2×2
No. of cylinder		4			Travel shoes					2X41
Bore and stroke		102X120(mm)			Travel speed					2.7/5.0(km/h)
Displacement		3.9L			Drawbar pulling force					126kN
Power output		85.4kw/2200rpm			Gradeability					70%(350)
Max. torque		447N.m/1500rpm			Ground clearance					440mm
Hydraulic System					Cab & Electrical System
Pump		KPM, Japan			Cab			Cab installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system
Type		axial piston pump
Max. discharge flow		2X138(L/min)
Max. discharge pressure
Boom, arm and bucket		31.4/34.3 MPa			Voltage				24V
Travel circuit		27 MPa			Batteries				2X24V
Swing circuit		27 MPa			Battery capacity				160Ah
Control circuit		3.9 MPa			Boom, Arm & Bucket
Pilot control pump		Gear type			Boom cylinder				105x70xS941-L1448
Main control valves		KYB, Japan			Arm cylinder				115x80xS1135-L1650
Oil cooler		Air cooled type			Bucket cylinder				100x70xS875- L1350
Swing System					Refilling Capacity & lubrication
Swing motor		KPM Japan			Fuel tank				240 L
Swing motor type		Axial-piston motor			Cooling system				22 L
Brake		Hydraulic oil released			Engine oil				13 L
Parking brake		Hydraulic disc brake			Hydraulic oil tank				120 L Tank Oil Level
Swing speed		12.4 r/min							185 L Hydraulic System
Bucket
Type					Backhoe bucket
Bucket capacity					0.55m3 (SAE)
Bucket capacity scope					0.55-0.60 m3
Number of bucket teeth					5
Bucket width					1020 mm
Working Ranges
Boom length			4600mm
A	Max. digging depth		5569mm
B	Max. dumping height		6200mm
C	Max. digging height		8659mm
D	Max. vertical digging depth		4500mm
F	Max. digging distance		8387mm
G	Max. digging reach at ground level		8261mm
H	Min swing radius of work equipment		2509mm
Digging Force (ISO6015)
Arm length			2520mm
A	Bucket digging force		99.7 KN
B	Arm digging force		73.8 KN
Overall Dimensions
A	Overall length		7723mm			I	Track grounding length				2930mm
B	Ground contact length		4073mm			J	Track length				3630mm
C	Overall height(to top of boom)		2740mm			K	Track gauge				1995mm
D	Overall width		2495mm			L	Track width				2495mm
E	Overall height(to top of cab)		2767mm			M	Track Shoe width				500mm
F	Counter weight ground clearance		932mm			O	Bonnet height				1858mm
G	Min Ground clearance		440mm			P	Revolving frame width				2490mm
H	Tail swing radius		2308mm			Q	Distance from swing center to tail				2205mm
Operating Weight and Ground Pressure
Operating weight includes basic machine;
Operating weight				14250 Kg
Ground pressure				42 KPa

Shandong Carter Heavy Industry Machinery Co., Ltd. is a professional company specializing in the manufacture and export of complete sets of Mini excavators, covering 1.8 tons, 4 tons, 4.5 tons, 6 tons, 8 tons, 8.5 tons. Middle size excavators, CT150, CT220, CT240, CT330. We also supply Mining Road headers, Wheel Loaders, tyres.

We equip our Carter mini excavator with most famous brands: 1) Cummins or Yanmar engine, 2) KYB or Eaton main valve, pump, swing motor and walking motor, 3) KYB, 4) Komatsu supplies undercarriage and upperstructure, boom, stick and bucket for us. All of these offer Carter excavator reliable quality and perfect performance.

The Carter excavators meet CE approved.

More information, please feel free to contact us.
