Product Specifications
| Prod Model: |
SK950L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 950: |
Case Amker |
Product Description
Hot melt gluing
Auto water replenishing
Electric edge folder
Soft light table
Center position
Suction assistance
Rolling press

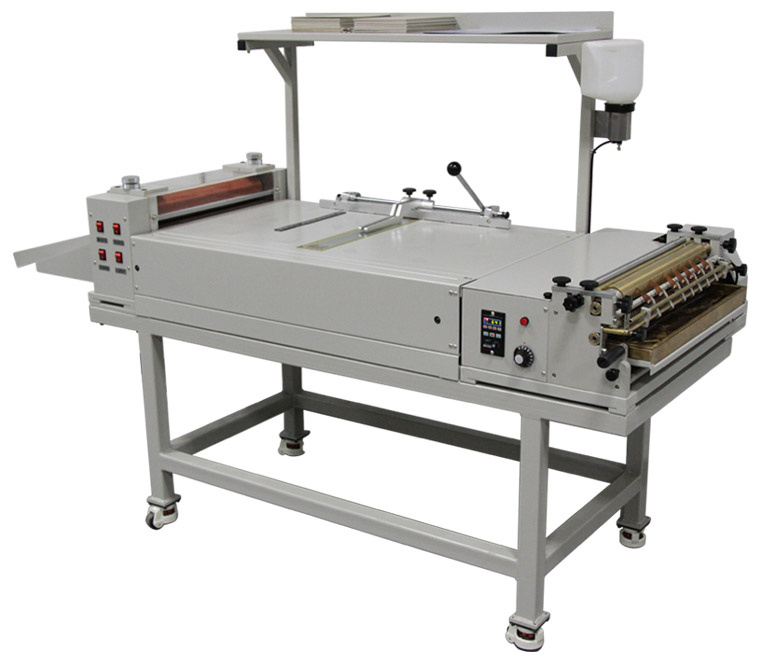

SK950L Hard cover maker is a casemaking system which features hot-melt gluing, suction positioning, edge folding and rolling pressing multi-functions in one machine.
It is designed according to the casemaking process and operating habits, it is a complete line of making mass production hard cover. It makes the casemaking more convenient, standard, normative, accurate and fast.
500mm gluing and pressing width, Max. Size of hard cover up to A3 landscape size.
Copper alloy made Glue application roller and Glue tray. Independent homothermal impermeable heater unit.
Automatic water replenishing, stepless glue application speed.
Microthermal animal glue drying quickly, no deformation and lower cost.
Animal glue and water-based white latex are both available.
Soft ligth table with center position.
Large air quantity suction assistance position.
Flexible and fast to change the different width of spine guides.
Antidromic electric edge folding operate.
Adjustable rolling press pressure.
Soft rubber roller and steel roller makes the pressure uniform and constant.
Stack the cover papers and cardboards on the Upper table.
The base of the machine is equipped with high load bearing Footmaster casters, which is convenient for moving the machine, level adjustment and rising fixed.
|
The size of operation desk |
980×466mm |
|
Max. size of product |
A3+ landscape size |
|
Gluing width |
500 mm |
|
Rolling width |
500 mm |
|
Power Supply |
220V/110V (Optional) |
|
Machine Weight |
265kg |
|
Machine dimensions |
1710×850×1450mm |
|
Standard accessory: 8mm paper guide - Long |
