Product Specifications
| Prod Model: |
drying machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Coal, Sawdust, Ore, Manure,Ect.. |
| Dimension: |
According to Model |
| Power: |
3-75kw |
| Weight: |
2.9-104.9t |
| Capacity: |
0.5-55t/H |
| Quality: |
Durable |
| Warranty: |
One Year |
| Test Machine: |
in Our Factory |
| Color: |
as You Like |
| Operational Method: |
Continuous |
| Structure: |
Rotary Type Drier |
| Operation Pressure: |
Atmospheric Dryer |
| Movement Way: |
Fixed |
| Heating Mode: |
Transmission |
Product Description

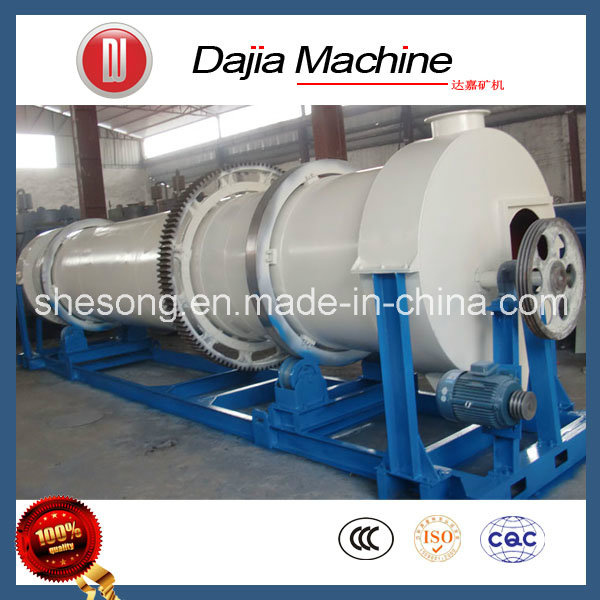

Cassava Residue Dryer/Drying Machine With Best Quality
Introduction:
The dryer mainly include feed inlet, heat furnace, filter cartridge, rotating cylinder, material conveyor, cooling cylinder and discharging port. The rotating cylinder, which is installed on the driving roller, moves in low speed depending on the motor and slow transmission. Feed inlet is in between the heat furnace and rotating cylinder and there is stir blade in the rotating cylinder. The baffle is on the connected place of the rotating cylinder and filter cartridge. One end of the filter cartridge is connected with the rotating cylinder.
Features:
1. Large production capability, continuous operation
2. Simple structure, convenient operation
3. Low malfunction, low maintenance cost
4. Wide scope of application, can be used to dry the granular materials, favorable for those materials with the big adhesion
5. Great operating flexibility, the output of the products allows a larger fluctuation range, not influencing the quality of the products.
Working Principle:
The wet materials are sent into silo by belt conveyor and bucket conveyor, then the material pass through the feeding tube into the feed end. The gradient of feeding tube must be greater than the natural angle of materials, so that the material can enter into desiccator. The desiccators' cylinder is an oblique rotating drum. Heat-carrier that enters into the dryer from the low-end can form reflux with the material added from the upper end. With the rotating of cylinder, materials are carried to the the bottom end by gravity. In the moving process, wet materials obtain the heat input of heat carrier directly and indirectly to bedried. Then the finished materials are sent out by belt conveyor and screw conveyor.
Main technical parameters:
|
Model (mm) |
Inclination (%) |
Rotate speed (r/min) |
Air inlet temperature (°C) |
Power (kw) |
Production capacity(t/h) |
Weight (t) |
|
Φ600x6000 |
3-5 |
3-8 |
≤700 |
3 |
0.5-1.5 |
2.9 |
|
Φ800x8000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.0 |
3.5 |
|
Φ800x10000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.5 |
4.5 |
|
Φ1000x10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1.0-3.5 |
5.6 |
|
Φ1200x10000 |
3-5 |
3-8 |
≤700 |
7.5 |
1.8-5 |
14.5 |
|
Φ1200x12000 |
3-5 |
3-8 |
≤700 |
11 |
2-6 |
14.8 |
|
Φ1500x12000 |
3-5 |
2-6 |
≤800 |
15 |
3.5-9 |
17.8 |
|
Φ1800x12000 |
3-5 |
2-6 |
≤800 |
18 |
5-12 |
25 |
|
Φ2200x12000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
6-15 |
33 |
|
Φ2200x18000 |
3-5 |
1.5-6 |
≤800 |
22 |
10-18 |
53.8 |
|
Φ2200x20000 |
3-5 |
1.5-6 |
≤800 |
30 |
12-20 |
56 |
|
Φ2400x20000 |
3-5 |
1.5-5 |
≤800 |
37 |
18-30 |
60 |
|
Φ3000x20000 |
3-5 |
1.5-5 |
≤800 |
55 |
25-35 |
78 |
|
Φ3000x25000 |
3-5 |
1.5-5 |
≤800 |
75 |
32-40 |
104.9 |
