Cassette Type Fan Coil Unit (HLC-34U~238U)

Name: Cassette Type Fan Coil Unit (HLC-34U~238U)
Brand: china-manufacturer-directory.com
SKU: 721544875
Availability: InStock
Rating: 4.4 (42 reviews)

Supplier:	Dongguan Golden Refrigeration Equipment Co., Ltd.
Price:	US $ 200/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	HLC-34U~238U
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Fan Coil Unit
Application:	Commercial
Place Of Origin:	Guangdong, China (Mainland)
Brand Name:	Hlgolden
Marketing Refliction:	Good
Design:	Unique
Noise:	Low
Heat Exchanger:	Aluminum Fin Arround Copper Tube
Fan Coil Unit 1:	Chiller Water Fan Coil Unit
Fan Coil Unit 2:	Ceiling Mounted Fan Coil Unit
Certification:	CE
Electric Current Type:	AC
Mounting:	Wall Fan
Blade Material:	Plastic

Product Description

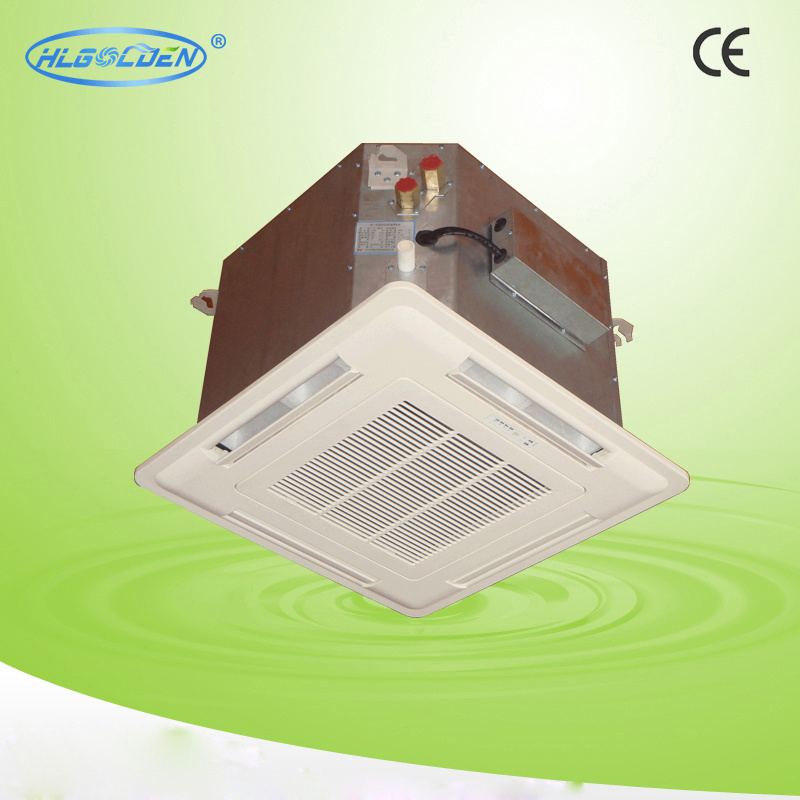

Chilled water duct cassette fan coil unit

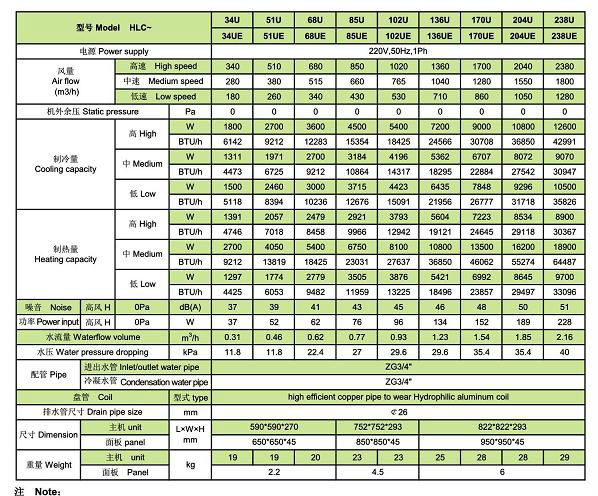

1. Parameter of casstte fan coil unit

2. Certification

3. Features

1)Silence design with low noise

2)Air flow direction can be changed to have uniform cooling

3)No need for air duct

4)Special design of the air filter, the filter can be dismantled without special tools

5) Easy for cleaning and maintenance

6)Driving device and remote control device can be provided for the outlet plates

7)Lifting pump and coils can be provided for collecting condensed water

8)Electric source: 230V, 1-phase and 50Hz -60Hz

HLGOLDEN company business scope

Air Cooled Water Chiller,

Water Cooled Water Chiller,

Glycol Water Chiller,

Industrial Chiller,

Multi-function Chiller,

Hot water unit heat recovery unit,

Heat PMP unit,

Condensing unit,

Air handing unit,

Fan coil. etc.

Model HLC~				34UE	51UE	68UE	85UE	102UE	136UE	170UE	204UE	238UE
Power supply				220V,50Hz,1Ph
Air flow (m3/h)		High speed		340	510	680	850	1020	1360	1700	2040	2380
		Medium speed		280	380	515	660	765	1040	1280	1550	1800
		Low speed		180	260	340	430	530	710	860	1050	1280
Static pressure			Pa	0	0	0	0	0	0	0	0	0
Cooling capacity		High	W	1800	2700	3600	4500	5400	7200	9000	10800	12600
		High	BTU/h	6142	9212	12283	15354	18425	24566	30708	36850	42991
		Medium	W	1500	2460	3000	3715	4423	6435	7848	9296	10500
		Medium	BTU/h	5118	8394	10236	12676	15091	21956	26777	31718	35826
		Low	W	1391	2057	2479	2921	3793	5604	7223	8534	8900
		Low	BTU/h	4746	7018	8458	9966	12942	19121	24645	29118	30367
Heating capacity		High	W	2700	4050	5400	6750	8100	10800	13500	16200	18900
		High	BTU/h	9212	13819	18425	23031	27637	36850	46062	55274	64487
		Medium	W	1949	2770	3938	4902	5694	7924	10473	12997	13900
		Medium	BTU/h	6650	9451	13436	16726	19428	27037	35734	44346	47427
		Low	W	1297	1774	2779	3505	3876	5421	6992	8645	9700
		Low	BTU/h	4425	6053	9482	11959	13225	18496	23857	29497	33096
Noise	H	0Pa	dB(A)	37	39	41	43	45	46	48	50	51
Power input	H	0Pa	W	37	52	62	76	96	134	152	189	228
Waterflow volume			m 3 /h	0.31	0.46	0.62	0.77	0.93	1.23	1.54	1.85	2.16
Water pressure dropping			kPa	11.8	11.8	22.4	27	29.6	29.6	35.4	35.4	40
Pipe	Inlet/outlet water pipe			ZG3/4"
Pipe	Condensation water pipe			ZG3/4"
Coil			type	high efficient copper pipe to wear Hydrophilic aluminum coil
Drain pipe size			mm	26
Dimension	unit		L×W×H mm	590590270			752752293		822822293
Dimension	panel		L×W×H mm	65065045			85085045		95095045
Weight	unit		kg	19	19	20	23	23	25	28	28	29
Weight	Panel		kg	2.2			4.5		6
