Cassette Type Single Facer Corrugated Cardboard Making Machine

Cassette Type Single Facer Corrugated Cardboard Making Machine
Supplier: San (Qingdao) International Trade Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Set
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: SANCSF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Name: Corrugated Cardboard Making Machine
Process: Paper Machine
Usage: Packing Paper Machine
Computerized: Yes
Automatic Grade: Automatic
Type: Paperboard
Certification: CE
Condition: New

Product Description

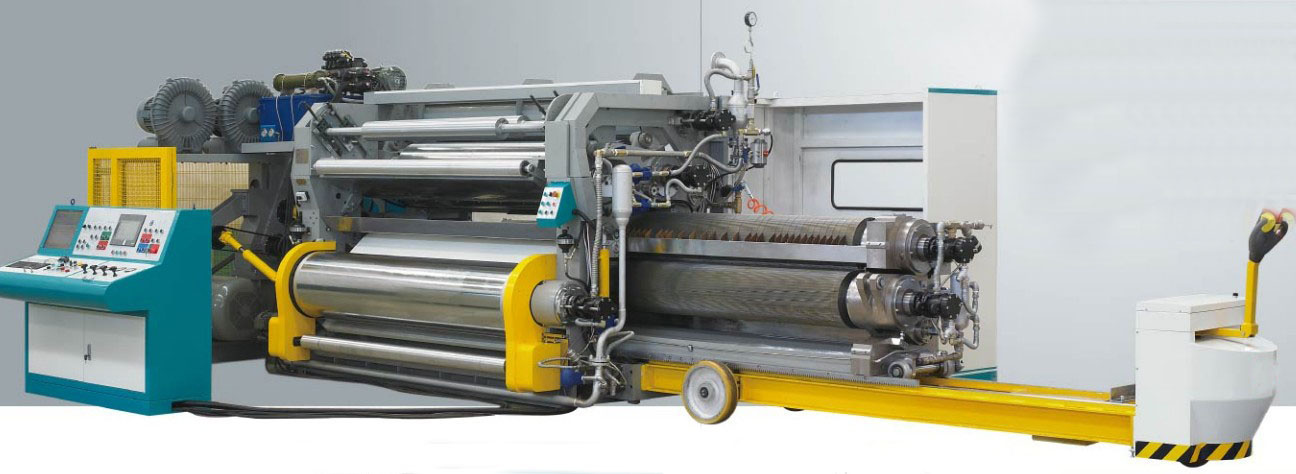

Cassette Type Single Facer Corrugated Cardboard Making Machine

SANCSF Positive Pressure Cassette Single Facer for Corrugated Cardboard Production Line
SANCSF Single Facer is controlled by PLC. Cassette type corrugator rolls make changing flute rolls faster and easier. Corrugating rolls are made of nickel-chromium alloy with tungsten carbide surface processing, much prolong the service life. Vibration is reduced due to lower-located corrugating roll, which improves running stability. Positive pressure fingerless design, reducing heating loss and simplifying maintenance
Max Mechanical Speed350m/min
Effective Width2200mm
Heating MediumSaturated or superheated steam with pressure of 13kgf
Compressed Air Pressure0.8~1Mpa
Power Capacity100kw
Control Voltage220VAC
Power Voltage380VAC
Corrugator Roll Diameter360mm
Gluing Roller Diameter300mm
Dimension (LxWxH)6500mmx4000mmx2600mm (not including preheater)
Weight22tons
Ambient Temperature20~55 D.C.
Ambient Humidity30~90%RH (no frost)
Flute Combinationany combination of D, K, A, C, B, E, F, G, N, O
San (Qingdao) Machinery Co., Ltd was established in March 2005, based on the tenets of providing professional services wholeheartedly, supplying trustworthy and high efficiency products, helping employees build strong selves and live a prosperous life, and contributing to the development and progress of human society. In conformity with the management philosophy of being responsible, leading and realistic, "San" people are summing up experience and innovating constantly in technology, production, sales and service, and sparing no effort to be a leading integrated service provider for paper machines and paper converting machines in China.
Following the working style of being attentive, rigorous, professional, persistent, and simple, carrying on the enterprising spirit of being a gentleman, promoting righteousness, following right way, doing right thing and making honest money, "San" people are optimizing service quality and improving technological level constantly. By years of hard work, San' S partners have been spreading throughout China and its products have been exported to the continents of Europe, America, Asia, Africa and Australia.
Facing the future filled with both opportunities and challenges, with marketing development and technology development as center and manufacture and sales as carrier, San aims to be a machinery-based, paper products-supplementing multi-industry group.
We are supplying the following machines:
1. Honeycomb paper production line and related honeycomb paper & paper panel converting machines, paper pallet machine, fire retardant paper production line.
2. Paper cup machine, paper plate machine, paper bowl machine and related die cutting machine.
3. Paper edge protector line and related paper edge protector machine, paper slitting and rewinding machine
4. Paper tube winding machine and tube cutter
5. Paper cement bag machine
6. Paper pulp mould machine
8. Paper plant equipment
9. Household paper machine, toilet paper machine, paper tissue machine
10. Paper testing instrument and equipment
11. Wet tissue machine
12. Creping paper machine
