Product Specifications
| Prod Model: |
YS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Ys561-2 |
| Power In Kw: |
0.09kw |
| Current: |
0.3A |
| Voltage: |
380V |
| Efficiency: |
60% |
| Stall /Rated Current: |
6.0A |
| Stall /Rated Torque: |
2.3 Tst/Tn |
| Noise: |
64db |
| Power Factor: |
0.76cosφ |
| Net Weight: |
3.6kg |
| Number Of Stator: |
Three-Phase |
| Function: |
Control |
| Brand: |
Kd |
Product Description
1,Rated voltage:220V/660V/380/660V/660V/1140V
2,Rated Frequency:50HZ/60HZ
3,Protection class:IP55
4,work mode:S1
5,Insulation class:B,F,H
6,pole:2-8
7,Rotor:Squirrel cage rotor

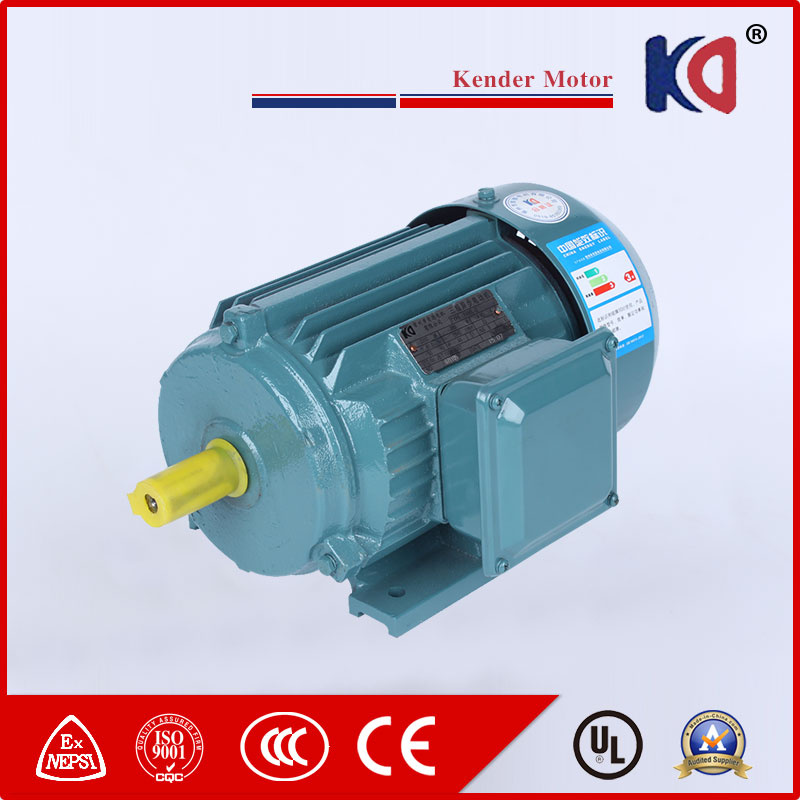

Advantage of Cast Aluminium Asynchronous Electric AC Motor With High Efficiency
1,High efficiency and torque
2,Energy saving
3,Little vibration,
4,Low noise
5,safe and reliable operation
Application of Cast Aluminium Asynchronous Electric AC Motor With High Efficiency
1,Textile machinery
2,Air compressor
3,Agricultural machinery
4,Food machinery
5,Ventilation installation
Technical Data of Cast Aluminium Asynchronous Electric AC Motor With High Efficiency
| YS Series technical data |
Model
Type | Power | Current | Power Factor | Efficiency | Speed | Stall/Rated
Torque | Stall/Rated
Current | Max/Rated
Torque | Net Weight | QTY/20 | Package
Dimension
|
| | (Kw) | (A) | (cosφ) | (%) | (r/min) | Tst/TN | Lst/IN | Tmax/TN | KG | | (MM) |
| YS561-2 | 0.09 | 0.30 | 0.76 | 60 | 2750
| 2.3
| 6.0 | 2.4 | 3.6 | 6000 | 220×120×165 |
| YS562-2 | 0.12 | 0.37 | 0.78 | 63 | | | 4 | 5000 | |
| YS631-2 | 0.18 | 0.53 | 0.80 | 65 | 2780
| 2.3 | 6.0 | 2.4
| 4.1 | 4400 | 260×150×165 |
| YS632-2 | 0.25 | 0.69 | 0.81 | 68 | | | 4.5 | 4400 | |
| YS561-4 | 0.06 | 0.27 | 0.68 | 50 | 1300
| 2.2
| 5.5 | 2.3 | 3.6 | 6000 | 220×120×165 |
| YS562-4 | 0.09 | 0.36 | 0.70 | 54 | | | 4 | 5000 | |
| YS631-4 | 0.12 | 0.44 | 0.82 | 57 | 1330 | 2.2 | 5.5 | 2.3 | 4 | 4400 | 260×150×165 |
| YS632-4 | 0.18 | 0.62 | 0.73 | 60 | | | | | 4.5 | 4400 | |
| YS711-6 | 0.18 | 0.74 | 0.66 | 56 | 900 | 2.0 | 5.5 | 2.2 | 5.4 | 3000 | 285×170×200 |
| YS712-6 | 0.25 | 0.95 | 0.68 | 59 | | | | | 6 | 3000 | |
| YS801-6 | 0.37 | 1.30 | 0.70 | 62 | 900 | 2.0 | 5.5 | 2.2 | 9 | 2200 | 320×190×215 |
| YS802-6 | 0.55 | 1.79 | 0.72 | 65 | | | | | 11 | 2200 | 320×190×230 |
| YS801-8 | 0.18 | 0.88 | 0.61 | 51 | 630 | 1.8 | 4.0 | 1.9 | 8.8 | 2200 | 320×190×215 |
| YS802-8 | 0.25 | 1.15 | | 54 | 640 | | | | 11 | 2200 | |
| YS90S-8 | 0.37 | 1.49 | 0.61 | 62 | 660
| 1.8 | | | 13 | 1500 | 375×210×235 |
| YS90L-8 | 0.55 | 2.18 | | 63 | | 4.0 | 2.0 | 14 | 1500 | |
About Kender :
1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly.
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing.
Contact Kender
1,Your client satisfied on the right schedule and quality;
2,You can get good reputation from your market and obtain more orders;
3,Our professional service before and after sale;
4,The reasonable and competitive price;
5,Service is excellent.Any questions from you are welcome and will be replied in 24 hours.
6,Delivery on time
FAQ
Q:What's the voltage of your motor?
220/380V/660
Q:What's the frequency of your motor?
50HZ or 60HZ
Q:What'a the phase of the motor?
Single phase or three phase as your required.
Q:What's the mounting size of your motor?
Design as customer required.
Q: Do you offer OEM service?
A: Yes.
Q: What is your payment term?
A: 50% T/T in advance,50% before delivery. Or irrevocable L/C.
Q: What is your lead time?
A: About 10-45 days after receiving deposit or original L/C.
Q: What certificate do you have?
A: We have CE, ISO9001,CCC ,EX and so on.
