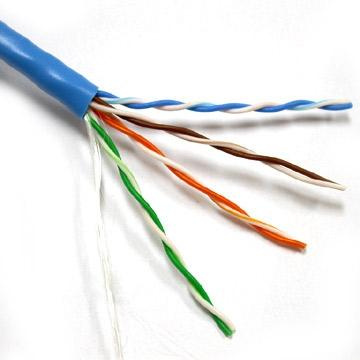

Cat5e LAN Cable Network Cable
Product Specifications
| Prod Model: |
Network Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White, Gray, Black, Yellow, Brown |
| Insulation: |
PE(HDPE) |
| Jacket: |
PVC(Lszh) |
| Nominal Outer Diameter: |
5.2mm |
| Operating Temperature Installation: |
: 0~50/Operation: -30~+75 |
| Brand Name: |
OEM |
| Number Of Conductors: |
8 |
| Usage: |
Computer |
| Type: |
Wired |
| Support Network: |
3G |
| Information Content: |
Data |
| Certification: |
ISO |
| Condition: |
New |
Product Description
UTP Cat5e LAN Cable Network CableProduct DescriptionNetwork Cable/LAN Cable FTP Cat 5e with High PerformanceConfiguration:![]()
1. Conductor: 0.51±0.01mm(24AWG) Bare copper2. Insulation: 0.97±0.03mm HDPE3. Cores/Pairs: 8/4
4. Shield: Al/Pet Foil
5. Drain: 0.4mm TC4. Sheath: 6.2±0.3mm PVC (PE, LSZH)Options: Jelly Compound, Jacket: UV, FR, RoHS complied.
Mechanical Properties: | Elongation | Min. 300% |
| Temperature Range | -20 up to +75° C |
| Tensile Strength | Min 1.68kg/mm² |
Electrical Properties: | Conductor Resistance | Max. 9.38 ohm/100m |
| Resistance Unbalance | Max. 2% |
| Insulation Resistance | 150 ohm/KM |
| Mutual Capacitance | Max. 5600pF/100m |
| Capacitance Unbalance | Max. 330pF/100m |
| Impedance | 100+/-15 ohm |
| Spark Test | 2000V |
| Velocity of Propagation | 67% |
Technical Performance: | | Attenuation | RL | Next | PS Next |
| (Mhz) | (dB/100M) | (dB) | (dB) | (dB/100m) |
| 1MHz | 2.0 | 20 | 65.3 | 63.5 |
| 4MHz | 4.1 | 23 | 56.3 | 54.2 |
| 8MHz | 5.8 | 24.5 | 52.4 | 50.5 |
| 10MHz | 6.6 | 25 | 51.3 | 49.2 |
| 16MHz | 8.2 | 25 | 49.3 | 47.4 |
| 20MHz | 9.3 | 25 | 48.8 | 46.9 |
| 25MHz | 10.4 | 24 | 45.3 | 43.4 |
| 31.25MHz | 11.7 | 23 | 43.0 | 41.8 |
| 62.5MHz | 17.0 | 21 | 39.2 | 37.2 |
| 100MHz | 22.0 | 20 | 36.3 | 34.4 |
Comparison:![]()
![]()
![]()
Production line:Why choose us? 1. 16 years manufacturer in China, so we have rich production experience on the cables; 2. OEM/ODM is available, your own brand can be printed in both cables and boxes; 3. We have special quality control department to ensure our good quality; 4. Cables are approved based on CE, ROHS, 3C, ISO9001 quality standard; 5. Short delivery time, we can finish a 20ft container within 15 days.
Shenzhen Taiyue Communication Cable Co., Ltd., is specialized in producing & exporting LAN cable for 10 years,
Our main products including:LAN cables, Patch cord, USB cables, power cords, computer cables, optical fiber cables, coaxial cables, etc.
With years of development, Taiyue has built up 3 factories, 2 shops and 2 branch office, and has built up good relationship with numerous famous enterprises in domestic and aboard, Our products are selling well among Europe, America, Asia, Australia, Egyptian and other countries.
Our factory is located in Guangzhou, China, which covers more than 8, 000 square meters with more than 200 energetic staff.By taking advantage of the latest technology in domestic and overseas fields, and combining our professional manufacturing experience, Taiyue has been an entity with large-scale production ability.
The ever-pioneering TAIYUE people has set up the solid philosophy "promote and innovate, quality-oriented, win competition by quality, set up PULI brand", in order to detect the future trend of information intellectualization with our unique expertise in the industry.Based in Guangdong, with vision toward the market covering China and the world, cherishing confidence and releasing enthusiasm, we will make up our way to a glorious future.
