Product Specifications
| Prod Model: |
UTP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
LAN Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Type: |
Cat 5 |
| Cover Material: |
PE |
| Certification: |
CE |
Product Description
Description

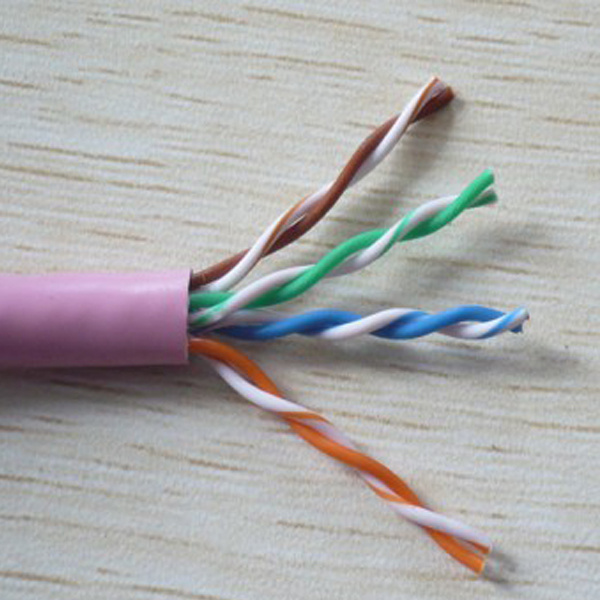

Category 5E Cable(Cat 5E) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals such as telephony and video.
Standards
ISO/IEC11801
ANSI/EIA/TIA-568-B. 2
Conductor
Class 1 solid plain copper
Insulation
HDPE(High Density Polyethylene)
Inner Jacket
PVC(Polyvinyl Chloride)
Outer Jacket
PE(Polyethylene)
Core Idenification
Blue, White/Blue;
Orange, White/Orange
Green, White/Green
Brown, White/Brown
|
Conductor |
Thick. of Insulation
mm |
Nominal O. D.
mm |
Nominal Weight
Kgs/305m box |
|
24AWG |
0.91± 0.005 |
5.8± 0.2 |
11 |
Electrical Characteristics
|
Max. Conductor Resistance: 9.2Ω /100m |
Min. Insulation Elongation: 300% |
|
Max. Resistance Unbalance: 2.4% |
Min. Propagation Velocity: 0.62C m/s |
|
Min. Conductor Elongation: 20% |
Characteristic Impedance: 100± 15Ω |
|
Min. Insulation Resistance: 7000MΩ /km |
|
Frequency
MHz |
Attenuation
dB/100m |
NEXT
dB |
PS-NEXT
dB |
RL
dB |
ELFEXT
dB |
PS-ELFEXT
dB |
|
|
1 |
2.0 |
65.3 |
62.3 |
20.0 |
64.0 |
61.0 |
|
|
4 |
4.1 |
56.3 |
53.3 |
23.0 |
52.0 |
49.0 |
|
|
8 |
5.8 |
51.8 |
48.8 |
24.5 |
45.9 |
42.9 |
|
|
10 |
6.5 |
50.3 |
47.3 |
25.0 |
44.0 |
41.0 |
|
|
16 |
8.2 |
47.2 |
44.4 |
25.0 |
39.9 |
36.9 |
|
|
20 |
9.3 |
45.8 |
42.8 |
25.0 |
38.0 |
35.0 |
|
|
25 |
10.4 |
44.3 |
41.3 |
24.3 |
35.8 |
33.0 |
|
|
31.25 |
11.7 |
42.9 |
39.9 |
23.6 |
34.1 |
31.1 |
|
|
62.50 |
17.0 |
38.4 |
35.4 |
21.5 |
28.1 |
25.1 |
|
|
100 |
22.0 |
35.3 |
32.3 |
20.1 |
24.0 |
21.0 |
|
Shenzhen Hongyan Wire Industry Co., Ltd established in 1999 and is located in Maling Industrial Park, Longgang, Shenzhen, China. We are a professional designer and manufacturer in wires and cables with ISO9001, having two senior cable engineers, over twenty managing and well-trained workers.
Our main products: Cat5e UTP/FTP/SFTP LAN Cable, CAT6 UTP/FTP/SFTP LAN Cable, Electrical Cable, Power Cable, PVC Cable, XLPE Power Cable, Steel Tape Armor Cable, Control Cable, Telephone Cable, Coaxial Cable, Optical Fiber Cable, ...
We are strictly according to the international, national and industry standard and have the national industrial production permit and China Compulsory Certification (CCC) and Flame-retardant and Fire-resistant and ISO9001 certifications. And our products are got the quality insurance commitment by China Pacific insurance company. We won "Customer Satisfaction Products of Guangdong Province", "China Quality Credit Enterprise", "Chinese famous Brand" honorary certificate.
Looking to the future, Shenzhen Hongyan Wire Industry Co., Ltd will continue to take the enterprise principle "concentrating on the cable production, striving for success". And we keep "offer superior cable quality, competitive price and customer satisfaction" marketing guideline, "employee's progress is our greatest success, social development is the meaning of our existence" managing policy, " effectively quality control, delivery on time" quality policy, together with domestic and international customers create our brilliance!
