CAT6 F/UTP LAN Cable/Data Cable
Product Specifications
| Prod Model: |
cat6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
LAN Cable |
| Conductor Material: |
Copper |
| Type: |
Cat 6 |
| Cover Material: |
PVC |
| Certification: |
RoHS , UL , ISO |
Product Description

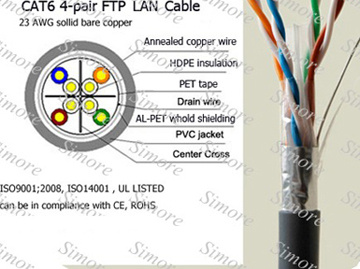

CAT6 F/UTP cable, 23AWG, Solid bare copper, 4 twisted pair
TIA/EIA 568B, ISO11801, ISO9001: 2008, ISO14001, RoHS, UL listed.
Conductor : solid bare copper
Insulation : HDPE insulation
4 pair clor code :
white-blue/blue,white-orange/orange, white-green/green,white-brown/brown
Mylar tape : wrapping rate ≥ 25%
Screen : aluminum mylar tape
Drain wire : 0.5mm tinned copper
Jacket : Grey PVC |
PHYSICAL DIMENSIONS
Nominal conductor diameter : 0.57mm
Nominal diameter over insulation : 1.090m
Nominal jack thickness : 0.65mm
Nominal jacket outer diameter ; 7.4mm
|
|
Test Object
Item |
Jacket |
|
Unaged |
Tensile Strength |
≥13.5MPa |
|
Elongation |
≥150% |
aged
(100centigrade×24h×7d) |
Tensile Strength |
≥12.5MPa |
|
Elongation |
≥125% |
|
Cold Bend |
-20 centigrade×4h |
No crack |
|
|
Characteristic Impedance |
100±15Ω |
|
|
DC Resistance(20 centigrade) |
≤8.5Ω/100m |
|
|
DC Resistance Unbalance |
≤2.5% |
|
|
Mutual Capacitance |
≤5.6nF/100m |
|
|
Cap. Unbalance to Ground |
≤330pF/100m |
|
|
Insulated Resistance |
≥6000MΩ@km |
|
|
Propagation Delay Skew |
≤45ns/100m |
|
Frequency
|
Attenuation
|
Return Loss
|
NEXT
|
PS-NEXT
|
ELFEXT
|
PS-ELFEXT
|
Propagation Delay |
|
MHz |
dB/100m |
dB |
dB |
dB |
dB |
dB |
ns/100m |
|
1.0 |
2.0 |
20.0 |
74.3 |
72.3 |
68.0 |
65.0 |
570 |
|
4.0 |
3.7 |
23.0 |
65.3 |
63.3 |
56.0 |
53.0 |
552 |
|
8.0 |
5.3 |
24.5 |
60.8 |
58.8 |
49.9 |
46.9 |
547 |
|
10.0 |
5.9 |
25.0 |
59.3 |
57.3 |
48.0 |
45.0 |
545 |
|
16.0 |
7.5 |
25.0 |
56.2 |
54.2 |
43.9 |
40.9 |
543 |
|
20.0 |
8.4 |
25.0 |
54.8 |
52.8 |
42.0 |
39.0 |
542 |
|
25.0 |
9.5 |
24.3 |
53.3 |
51.3 |
40.0 |
37.0 |
541 |
|
31.25 |
10.6 |
23.6 |
51.9 |
49.9 |
38.1 |
35.1 |
540 |
|
62.5 |
15.4 |
21.5 |
47.4 |
45.4 |
32.1 |
29.1 |
539 |
|
100 |
19.8 |
20.1 |
44.3 |
42.3 |
28.0 |
25.0 |
538 |
|
200 |
29.0 |
18.0 |
39.8 |
37.8 |
22.0 |
19.0 |
537 |
|
250 |
32.8 |
17.3 |
38.3 |
36.3 |
20.0 |
17.0 |
536 |
|
|
|
