Wenzhou Tosun Electric Co., Ltd. >> CAT6 UTP Computer Cable

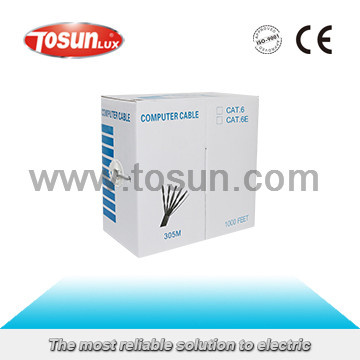

CAT6 UTP Computer Cable

Name: CAT6 UTP Computer Cable
Brand: China-Manufacturer-Directory.com
SKU: 755829085
Availability: InStock
Rating: 4.3 (139 reviews)

Supplier:	Wenzhou Tosun Electric Co., Ltd.
Price:	US $ 26-34/Box
Min Order:	200/Box
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CAT6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency MHz:	0.772-250.0
Impedance Ohms:	100±15
Rl Db:	19.44-17.32
Att:	1.84-33.04
Next:	76.0-38.3
PS-Next:	74.0-36.3
ACR:	74.1-5.3
Nominal Velocity:	65%
Differential Phase Delay Ns:	20.0
PS-ACR:	72.1-3.3
Type:	Cat 6
Certification:	CE
Conductor Material:	Copper
Brand:	Tosunlux

Product Description

Specification

Frequency MHz	Impedance ohms	RL Db	ATT	NEXT	PS-NEXT	ACR	Nominal Velocity	Differential Phase Delay ns	PS-ACR	ELFEXT	PS-ELFEXT
0.772	100±15	19.44	1.84	76.0	74.0	74.1	65%	20.0	72.1	70.0	67.0
1.0		20.00	2.04	74.3	72.3	72.3			70.3	67.8	64.8
4.0		23.01	3.81	65.3	63.3	61.5			59.5	55.8	52.8
8.0		24.52	5.35	60.8	58.5	55.4			53.4	49.7	46.7
10.0		25.00	5.99	59.3	57.3	53.3			51.3	47.8	44.8
16.0		25.00	7.60	56.2	54.2	48.6			46.6	43.7	40.7
20.0		25.00	8.52	54.8	52.8	46.3			44.3	41.8	38.8
25.0		24.32	9.57	53.3	51.3	43.8			41.8	39.8	36.8
31.25		23.64	10.74	51.9	49.9	41.1			39.1	37.9	34.9
62.5		21.54	15.48	47.4	45.4	31.9			29.9	31.9	28.9
100.0		20.10	19.92	44.3	42.3	24.4			22.4	27.8	24.8
125.0		19.42	22.49	42.8	40.8	20.4			18.4	25.9	22.9
200.0		18.00	29.15	39.8	37.8	10.6			8.6	21.8	18.8
250.0		17.32	33.04	38.3	36.3	5.3			3.3	19.8	16.8

Frequency MHz	RL (dB)	ATT (dB/100)	NEXT (dB)	PS-NEXT (dB)	ACR (dB)	PS-ACR (dB)	ELFEXT (dB)	PS-ELFEXT (dB)
1	20.0	2.1	68.0	66.0	66.3	64.3	63.8	60.8
4	23.0	4.2	59.2	57.2	55.2	53.2	51.7	48.8
8	24.5	5.9	54.8	52.8	49.0	47.0	45.7	42.7
10	25.0	6.6	53.3	51.3	46.8	44.8	43.8	40.8
16	25.0	8.3	50.3	48.3	42.1	40.1	39.7	36.7
20	25.0	9.4	48.8	46.8	39.5	37.5	37.8	34.8
25	24.3	10.3	47.3	45.3	36.9	34.9	35.8	32.8
31	23.6	11.8	45.9	43.9	34.2	32.2	33.9	30.9
63	21.5	17.1	41.4	39.4	24.4	22.4	27.8	24.8
100	20.1	22.2	38.3	36.3	16.3	14.3	23.8	20.8
155	18.8	28.2	35.4	33.4	7.4	5.4	20.0	17.0
200	18.0	32.5	33.7	31.7	1.4	0.0	17.7	14.7
240	17.3	36.1	32.6	30.6	-	-	16.2	13.2
300	16.8	41.1	31.2	29.2	-	-	14.2	11.2
350	16.3	45.0	30.1	28.1	-	-	12.9	9.9
