Catalyst Converter of Euroiv Metal Honeycomb Substrate Honeycomb Metallic Substrate

Catalyst Converter of Euroiv Metal Honeycomb Substrate Honeycomb Metallic Substrate
Price: US $ 18.50-19.80/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union

Product Specifications

Prod Model: MHS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Ss304
Specification: Diameter<120mm/Diameter<200mm, etc
Cell: 100-600cpsi
Application: as Catalyst Used in Automobile/Motorcycle
Certification: TS16949
Body Material: Steel
Component: Catalytic Converter
Discharge Standard: Euro V

Product Description

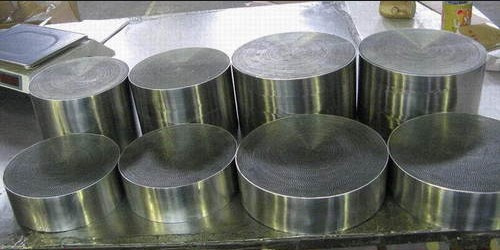

Metal Honeycomb Substrate Description:
Using the metallic honeycomb as the carrier, our series of motorcycle three way catalyst are mainly made of platinum, palladium, rhodium, other precious metals and a variety of rare earth element through a certain production process, when the exhaust gas flow through, under the action of catalyst, the harmful exhaust gas, carbon monoxide (CO), hydrocarbons (CH), nitrogen oxides (NOx) are involved in redox reactions, being converted to carbon dioxide (CO2), water (H2O) and nitrogen (N), other no harmless gas, so as to achieve the purpose of purification.

Specifications
*Metal catalyst
*Auto catalyst
*EURO IV emission standard
*High coating technology
*Raw material supplier-Heraeus

Application:
For light duty petrol vehicls exhaust purification, through the precious metals and earth catalyst, the exhaust HC. CO. And NOx and other harmful components into harmful N2. CO2. And H2O. So that emission of State 3.4 state standards.
*catalyst type: Complex catalyst of noble metal (Pt, Pd, Rh) plus rare earth complex
Catalyst.
*catalytic substrate: Metal substrate and honeycomb ceramic substrate
*fantastic coating fastness and stably and long-term catalyst ability
*advanced technic of substrates making and canning, ensuring depandable resistance heat shocks and stability of equipment
*various kinds of specifications and types, customized products as per clients specific requirement and technology data

The Features of our products:
*Low thermal expansion
*High surface area
*Long-term durability performance
*Low pressure drop
*Good thermal shock resistance
*Combined with the EGR systems to help different vehicles to satisfy emission standard
*Low light-off temperature
*Excellent adhesion between wash-coat and susbstrate with netty structure

Major technical parameters:
Substrate: Metal honeycomb substrate (Fe-Cr-Al alloy)
Light-off temperature: CO≤ 200° C, HC≤ 200° C, NOX≤ 200° C
Coating losing rate ≤ 3%
Conversion rate: CO≥ 90%, HC≥ 90%, NOX≥ 80%
Durability: Not less than 15000 kilometers
ShapeMaterialDiameterLengthChannel       density(cpsi)
CylinderFe/Cr/Al2020100/200
CylinderFe/Cr/Al2080100/200
CylinderFe/Cr/Al30100100/200
CylinderFe/Cr/Al2860100/200
CylinderFe/Cr/Al28100100/200
CylinderFe/Cr/Al3530100/200
CylinderFe/Cr/Al3540100/200
CylinderFe/Cr/Al3560100/200
CylinderFe/Cr/Al3570100/200
CylinderFe/Cr/Al35100100/200
CylinderFe/Cr/Al38100100/200/300/400
CylinderFe/Cr/Al42100100/200/300/400
CylinderFe/Cr/Al45100100/200/300/400
CylinderFe/Cr/Al48.670100/200/300/400
CylinderFe/Cr/Al53100100/200/300/400
CylinderFe/Cr/Al6350100/200/300/400
CylinderFe/Cr/Al101.6100200/300/400





















ShapeMaterialDiameterLengthChannel       density(cpsi)
CylinderFe/Cr/Al2020100/200
CylinderFe/Cr/Al2080100/200
CylinderFe/Cr/Al30100100/200
CylinderFe/Cr/Al2860100/200
CylinderFe/Cr/Al28100100/200
CylinderFe/Cr/Al3530100/200
CylinderFe/Cr/Al3540100/200
CylinderFe/Cr/Al3560100/200
CylinderFe/Cr/Al3570100/200
CylinderFe/Cr/Al35100100/200
CylinderFe/Cr/Al38100100/200/300/400
CylinderFe/Cr/Al42100100/200/300/400
CylinderFe/Cr/Al45100100/200/300/400
CylinderFe/Cr/Al48.670100/200/300/400
CylinderFe/Cr/Al53100100/200/300/400
CylinderFe/Cr/Al6350100/200/300/400
CylinderFe/Cr/Al101.6100200/300/400
Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company. It cooperate with and invest to make to the funds in form of company in A large-scale enterprises, BoCent Advanced Ceramic Co., Ltd. This corporation is the biggest enterprise which devote to High-tech at saving energy and environmental field. BoCent Advanced Ceramic is professional manufacturer for environmental ceramic product, such as storage filter, foam filter, DPF and catalyst converter, infrared burning plates. As one of Shareholders, Beihai Xiaoming primarily responsible for Overseas Market Operation.

With the speedy development of solar industry, Beihai Xiaoming International Imp&Exp Co., Ltd interested to set foot in the Great Green Solar Industry and built up manufacture base in Nanning for research & develop, manufacture and sell solar modules, solar power supply system, solar lighting system, solar pumping/ irrigation system and other solar application products etc. The base covers and area of 3600 square meters with luxurious show room and dust-free workshop, equipped with many kinds of high advance and sophisticated devices and instruments

Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.

We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.

With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
