| Supplier: | Danyang Guangyi Electronics Co., Ltd. |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 10000/Piece |
| Quantity:: | |
| Trade Terms: | FOB |
|
|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|

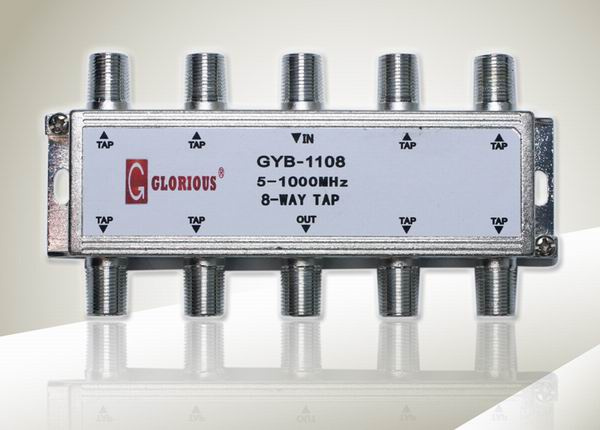

| Type: | CATV（Cable Television）Equipment |
| Parameter | Frequency (MHz) | Nominal value ( dB ) | ||||||||
| -14 | -16 | -18 | -20 | -22 | -24 | -26 | -28 | -30 | ||
| Tap Loss Tolerance(dB) | 5~550 | ± 1.0 | ||||||||
| 550~862 | ± 1.0 | |||||||||
| 862~1000 | ± 1.5 | |||||||||
| Insertion Loss(dB) | 5~50 | ≤ 3.5 | ≤ 2.8 | ≤ 2.2 | ≤ 1.8 | ≤ 1.4 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 |
| 50~862 | ≤ 4.0 | ≤ 3.0 | ≤ 2.5 | ≤ 2.0 | ≤ 1.7 | ≤ 1.2 | ≤ 1.2 | ≤ 1.2 | ≤ 1.2 | |
| 862~1000 | ≤ 4.4 | ≤ 3.5 | ≤ 2.8 | ≤ 2.2 | ≤ 2.0 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | |
| Upstream isolation (dB) | 5~50 | ≥ 25 | ≥ 25 | ≥ 27 | ≥ 29 | ≥ 30 | ≥ 30 | ≥ 30 | ≥ 30 | ≥ 30 |
| 50~862 | ≥ 23 | ≥ 23 | ≥ 25 | ≥ 27 | ≥ 28 | ≥ 28 | ≥ 28 | ≥ 28 | ≥ 28 | |
| 862~1000 | ≥ 21 | ≥ 21 | ≥ 23 | ≥ 25 | ≥ 25 | ≥ 25 | ≥ 25 | ≥ 25 | ≥ 25 | |
| Mutual Isolation(dB) | 5~50 | ≥ 22 | ||||||||
| 50~550 | ≥ 30 | |||||||||
| 550~862 | ≥ 25 | |||||||||
| 862~1000 | ≥ 22 | |||||||||
|
IN/OUT Return Loss (dB) |
5~50 | ≥ 16 | ||||||||
| 50~862 | ≥ 18 | |||||||||
| 862~1000 | ≥ 16 | |||||||||
|
TAP OUT Return Loss (dB) |
5~50 | ≥ 18 | ||||||||
| 50~862 | ≥ 20 | |||||||||
| 862~1000 | ≥ 18 | |||||||||
| Shielding attenuation(dB) |
5~1000 |
≥ 100(Tin seal) |
||||||||
| Connector | F | |||||||||
