| Supplier: | Taizhou Huifeng Electron Co., Ltd. |
|---|---|
| Price: | US $ 0.1-3/Piece |
| Min Order: | 500/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CIF,others |
|
|
| Prod Model: | CBB60 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | Can Be Done According to Customer's Requirments |
| Color: | White/Black/Grey/Orange |
| Climate Type: | 25/70/21 |
| Type: | Polypropylene Capacitor |
| Package Type: | Through Hole |
| Application: | AC / Motor |
| Capacitance: | 1-100mf |

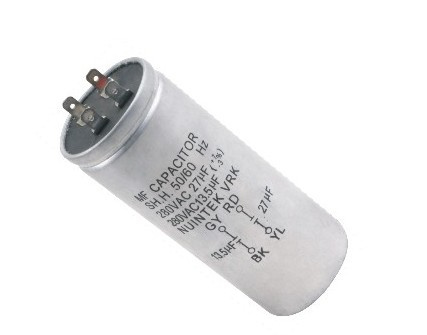

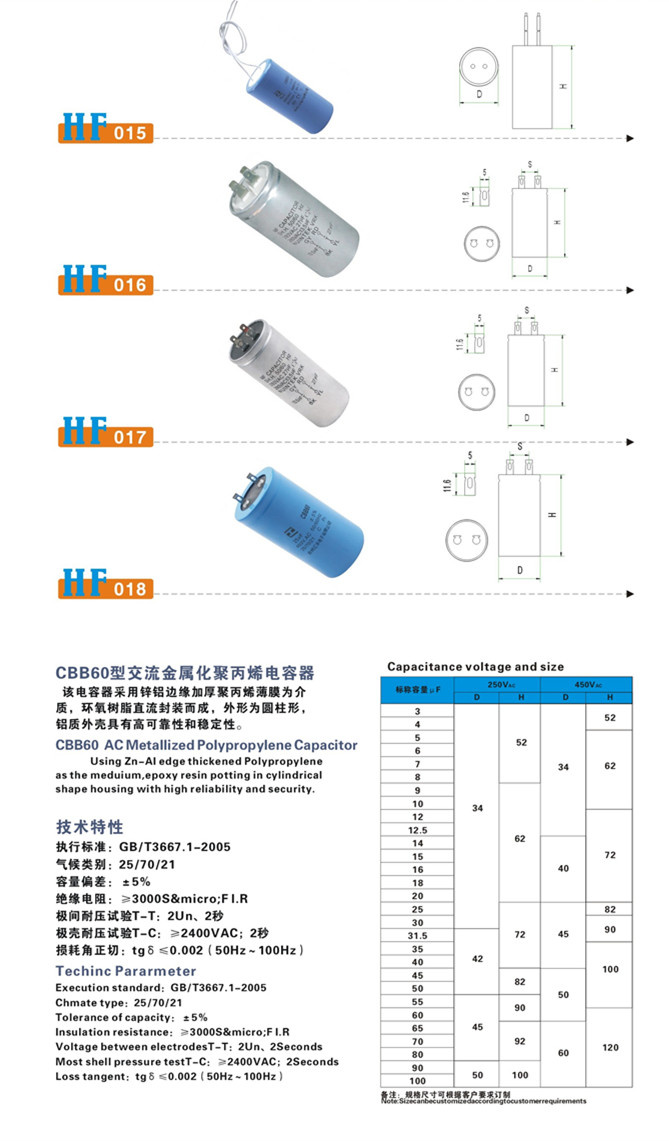

CBB60 Motor Run Capacitor
Using Zn-Al edge thickened polypropylene as the meduium ,epoxy potting in cylindrical shape housing with high reliability and security.
Technical Parameter
Execution standard:GB/T3667.1-2005
Climate type:25/70/21
Tolerance of capacity:±5%
Insulation resistance:≥5000Smicro;FI.R
Flectrodes VoltageT-T:2Un,2Seconds
Loss tangent:tgδ≤0.002(50Hz~100Hz)

| capacitance | voltage | size | price |
| 10UF | 450V | 35*60mm | $0.43 |
| 20UF | 450V | 40*70mm | $0.75 |
