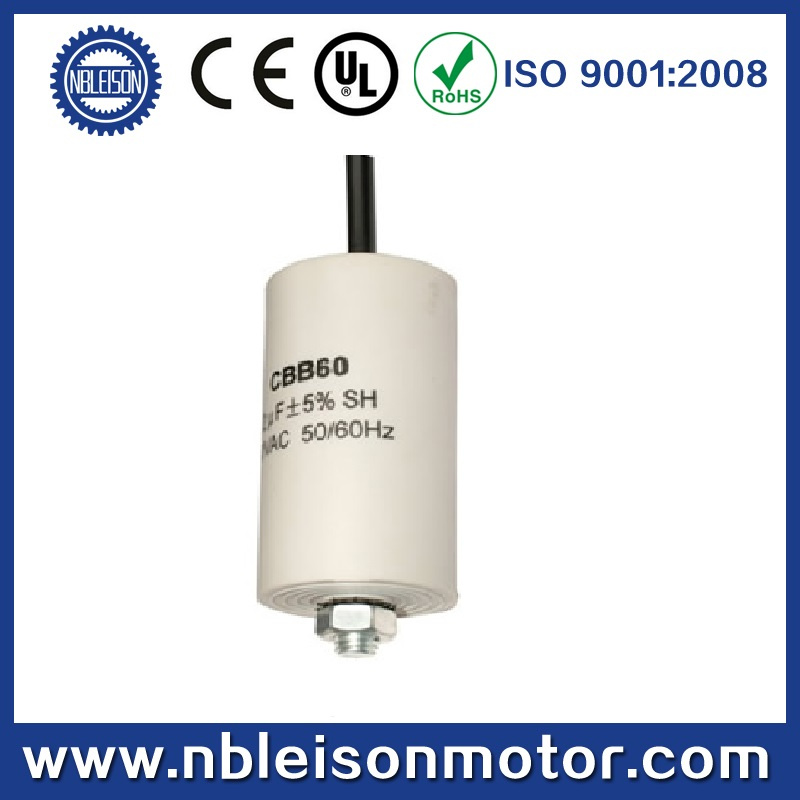

Capacitors Features:
With a small loss, anti-moist, excellent electrical performance, reliability, large capacity, long life and good self-healing properties.
Capacitors Use:
It is widely used as the start-up and running capacitor that is special for micro water pump, cleaning machine, washing machine, and single-phase motor.
| Capacitance Range | 1μF_100μF |
| Capacitance Tolerance | ±5% , ±10% |
| Rated Alternate Voltage | 250VAC, 350AC, 370AC, 400VAC, 440VAC, 450VAC,500VAC |
| Rated Frequency | 50/60 Hz |
| Dissipation Factors | ≤0.002(1KHz,20 degree) |
| Operating Temp. | -4 degree ~ +85 degree or -40 degree ~ +70 degree |
| Case Material | PBT, PP, Aluminium, Flammability Class - UL 94 V -2, 750C (RTI) |
| Dielectric | Polypropylene with self healing SH |
| Insulation Resistance | ≥3000S |
| Weather Category | 40/85/21, 40/70/21 |
| Withstand voltage(Terminal to Terminal) | 2 X Rated Voltage |
| Withstand voltage (Terminal to Case) | Minimum 2000 V AC for 1 Min. |
| Ref. Standard | IEC - 252-1993 |
| Quality System | ISO 9001:2008 |
| Approvals | CQC,CE |
| Application | Electrical motor, pump, washing machine, Power saver |
Capacitors Case Dimensions:
| Capacitance(μF) | 450VAC | 250VAC |
| D(mm) | H(mm) | D(mm) | H(mm) |
| 1μF | 25 | 57 | 25 | 57 |
| 3μF | 25 | 57 | 25 | 57 |
| 5μF | 30 | 70 | 25 | 57 |
| 8μF | 35 | 60 | 35 | 60 |
| 10μF | 35 | 70 | 35 | 60 |
| 12μF | 35 | 70 | 35 | 60 |
| 15μF | 35 | 70 | 35 | 70 |
| 18μF | 40 | 70 | 35 | 70 |
| 20μF | 40 | 70 | 35 | 70 |
| 25μF | 40 | 80 | 35 | 70 |
| 30μF | 45 | 92 | 40 | 70 |
| 35μF | 45 | 92 | 40 | 70 |
| 40μF | 45 | 92 | 40 | 70 |
| 45μF | 45 | 92 | 40 | 70 |
| 50μF | 50 | 92 | 45 | 92 |
| 55μF | 50 | 100 | 45 | 92 |
| 60μF | 50 | 116 | 45 | 92 |
| 70μF | 50 | 116 | 45 | 92 |
| 80μF | 60 | 120 | 50 | 100 |
| 90μF | 60 | 120 | 50 | 100 |
| 100μF | 60 | 120 | 50 | 116 |
Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,
Our Product range are:
DC Brush motor: 6-130mm diameter, 0.01-1500W output power.
DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power
DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power
Brushless DC Motor: 28-110mm, 5-1000W output power
Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw
AC Gear Motor: 49 to 100mm diameter, 6-140 output power
Compare with other competitors, Our advantages are:
1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.
2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.
3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.
4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.
5) Customized requirement: Beside normal products, We aslo design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).
Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
