Price: | US $ 0.1-2/Piece |
---|---|
Trade Terms: | FOB |
Min Order: | 1000/Piece |
Pay Type: | L/C,T/T |

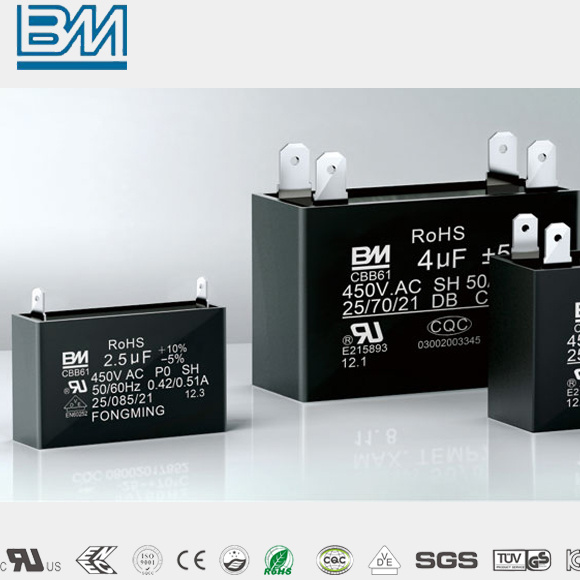

Prod Model: | CBB61 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: | Polypropylene Capacitor |
Application: | Fan |
Package Type: | Export Carton |
Capacitance: | 0.1UF-80UF |
The products are made of electrical class polypropylene film, zinc-aluminum metalized electrode,High-quality engineering plastic box, and enveloped with epoxy resin, led by standard quick-connect terminals to connect fast
Safety approvals: UL, VDE, CQC, TUV
Implemented standard: GB/T3667.1, UL810, EN60252-1
Environment temperatures: -40°C~+105°C
Rated voltages: 110VAC~600VAC (50/60Hz)
Capacitance range: 0.1μF~80μF
Capacitance tolerance: ±5%(J),±10%(K)
Tangent of loss angle(20°C) : ≤0.002 (100Hz)
Testing voltage: between terminals 2 x UN (VAC)/60s(CQC,VDE,TUV), 1.5 x UN (VAC)/60s (UL)
between terminals and case 2 x UN+1000(VAC)/60s(≥2000VAC)
Class of safety protection: CBB61 :P0 class, CBB61-P2: P2 class
Fault current CBB61-P2: 10,000AFC (UL 810)

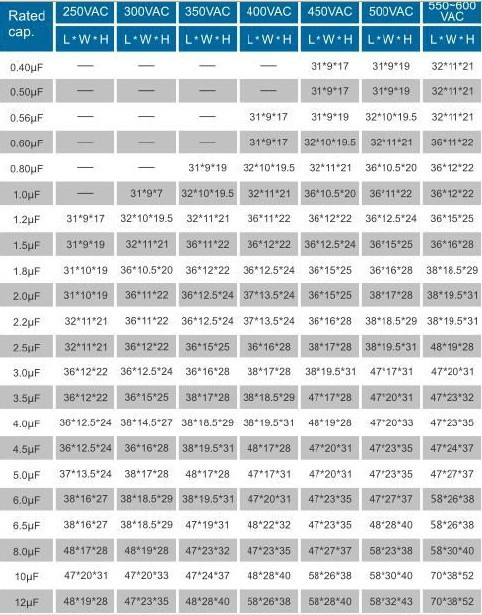

Dimension:
