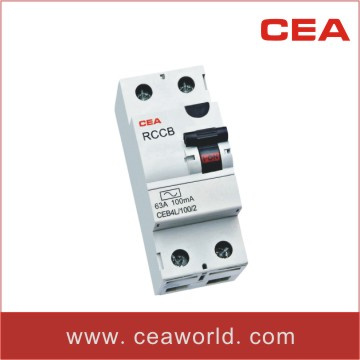

Cbd Residual Current Circuit Breaker (CEB4L 2P, CBT RCCB, BD)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
CEB4L 2P, CBT RCCB, BD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Installation: |
Fixed |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Conventional Circuit Breaker |
Product Description
Brand Name: CEA
Model Number: CEB4L
Type: Residual Current Circuit Breaker or Residual Current Device
Poles Number: 2P 4P
![]()
Application:
The RCCB is in conformity with the standards of IEC1008, GB16916 and BS EN61008. The RCCB can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk. Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.
The RCCB is mainly suitable for use in variety of plants and enterprises, building construction, commerce, guesthouses and families, it can be used in circuits up to single phase230V, three phase 400V 50 to 60 Hz. RCCB is also suitable for use on DC pulse system.
Technical data| Standard | IEC1008, GB16916, BS EN61008 |
| Rated voltage (Un) | 2pole: 230V AC 4pole: 400V AC |
| Rated current (In) | 25, 40, 63A |
| Rated residual operating current(IΔ N) | 30, 100, 300, 500mA |
| Rated residual non-operating current (IΔ No) | 0.51Δ N |
| Residual current off-time | ≤ 0.1s |
| Minimum value of rated making and breaking capacity (Im) | 1KA |
| Rated conditional short-circuit current (Inc) | In=25, 40A Inc=1500A
In=63A Inc=3000A |
| Endurance | On load: 2000cycles
Off load: 2000cycles |
| Installation | On symmetrical DIN rail
Panel mounting |
![]()
![]()
![]()
Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.
The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.
Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.
We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.
Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
