Product Specifications
| Prod Model: |
CBD53 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color Temperature(Cct): |
Pure White |
| Lamp Power(W): |
150 |
| Input Voltage(V): |
AC220V |
| CRI (Ra>): |
80 |
| Lamp Luminous Efficiency(Lm/W): |
77 |
| Lamp Body Material: |
Aluminum Alloy |
| Lamp Socket: |
E27 |
| Corrosion-Proof: |
Wf1 |
| Cable\S Outside Diameter: |
9-14 Mm |
| Inlet's Thread: |
G3/4" |
| Type: |
Portable Lamp |
| IP Rating: |
IP65 |
Product Description
About CNC
1. China Top 500 Enterprise.
2.26 years rich experience in manufacturing electrical products.
3. Sales in over 100 countries.
4. Pass ISO9001, ISO14001 CCC CE CB IEC ICO certificate and standar.

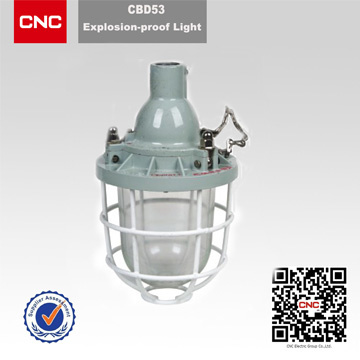

(CBD53) Explosion Proof Lighting
Product Description
Application:
1. Can be used in Zone 1 and 2 dangerous places.
2. Can be used A, B group explosive atmosphere.
3. Suitable for incandescent lamp, mercury vapor lamp, high-pressure sodium vapor lamp, metal halide lamp.
Notice: Can be install lamp cover according to user's requirements
(CBD53) Explosion Proof Lighting
Features:
1. Diastase aluminum alloy shell with
2. Pressure-casted formation, compact structure and aesthetic appearance.
3. Suspension type thumb nut is used for fastening so that it can be quickly opened up sand downward is convenient for maintenance.
4. Suitable for steel-pipe.
5. Suitable for GB3836-2000, IEC60079 stab=board request.
Main technical parameters:
Ex-mark: Exd BT4
Protection grade: IP54
Cable' s outside diameter(mm): 10~14
Inlet' s thread: 3/4
Lamp socket: E27
Mass(kg): 4.5
Supplied with lamps:
Lamp type: Self-ballasted mercury Vapor lamp, Incandescent lamp, Mercury vapor lamp, Hi-Pressure so-palladium, Metal halide lamp
Rated voltage: 220V/50Hz
Rated Power: 125, 160, 200, 80, 110, 70, 100
(CBD53) Explosion Proof Lighting
| Ex-mark | Protection grade | Cable's outside diameter (Φ, mm) | Inlet's thread(G") | Lamp socket | Mass (kg) |
| ExdIIBT4 | IP54/IP65 | 9~14 | 3/4 | E27 | 3 |
(CBD53) Explosion Proof Lighting
Supplied with lamps
| Lamp type | Self-ballasted mercury Vapor lamp | Incandesent
lamp | Mercury vapor lamp | Hi-Presssure
so-diumlamp | Metal halide
lamp |
Rated
voltage(V) | 220V/50Hz |
Rated
power (W) | 125/160 | 200 | 80/125 | 110 | 70/100 |
