Product Specifications
| Prod Model: |
BCL-XC Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Product's Description:

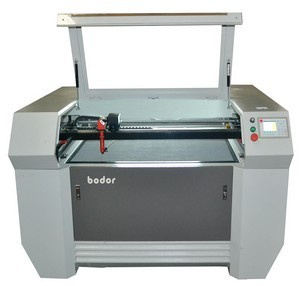

Camera locating laser cutting machine gets the picture by high-resolution when working, search automatically and locates accurately, laser cutting and reaches intelligence, automation of follow-up production.
Adopting the combination of automatic camera locating system and laser head, with the assistance of computersoftware, label cutting machine can compensate automatically to pinpoint deformation of the fabric, it ensures the accuracy of cutting. The application of camera systems, marking laser technology, automation, technology, shortet cutting path of human-based software design, saves time and increases efficiency for user. With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about manual positioning.
Applicable industry:
Embroidery, garments, shoemaking, label processing, arts and rafts, marble engraving, etc.
Applicable Materials:
Fabrics, label, paper board, leather, embroidery, acrylic, wooden plates, marble and heavy materials. Etc.
|
Model |
BCL1006XC |
BCL1309XC |
BCL1610XHC |
BCL1812XHC |
Option |
|
Working area |
1000*600mm |
1300*900mm |
1600*1000mm |
1800*1200mm |
|
|
Laser power |
40w/50w/60w/80w/100w/130w//150w/180w |
|
Laser type |
CO2 Sealed laser tube, 10.6μ m |
|
Cooling type |
Water cooling |
|
Engraving speed |
0-60000mm/min |
|
Cutting speed |
0-40000mm/min |
|
Laser output control |
0-100% set by software |
|
Min. engraving size |
Chinese: 2.0mm*2.0mm, English letter: 1.0mm*1.0mm |
|
Highest scanning precision |
4000DPI |
|
Locating accuracy |
≤ +0.01mm |
|
Controlling software |
DSP control system |
|
Graphic format supported |
DST PLT BMP DXF DWG AI LAS, etc |
|
Compatible software |
CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc. |
|
Color separation |
yes |
|
Drive system |
High-precision 3-phase stepper motor |
|
Auxiliary equipments |
Exhaust fan and air exhaust pipe |
|
Power supply |
AC110V/220V+10%, 50HZ/60HZ |
|
Working environment |
Temperature: 0-45C, Humidity 5-95%(No condensate water) |
|
Packing size |
according to the model |
|
Net weight |
according to the model |
|
Option |
up& down table, honeycomb worktable, rotary device, red dot position system, auto-focus device |
