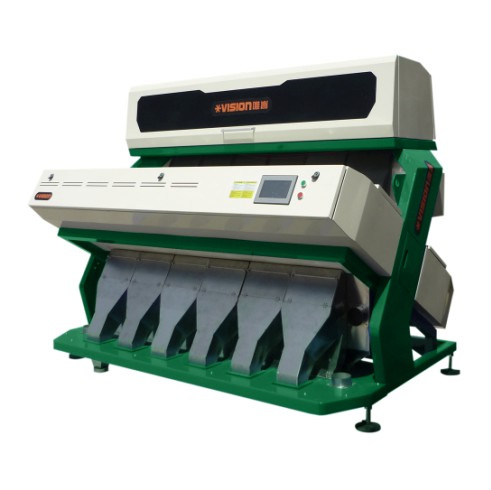

White Sesame Seed CCD Color Sorting Machinery
The color sorter uses 2048 high performances CCD sensors with the definition up to 0.07mm² .
The sorter adopts high quality special industrial lenses designed and manufactured for color detection.
The high speed DSP technology provides the sorter with fast detection and high identification rate.
Master control system adopts ARM high-end embeded processor to enhance and control the speed and color selection precision effectively.
Overall unit adopts intelligent closed-loop control system.
The operation interface adopts industrial grade 7-inches TFT touch screen and features simple parameter setting and easy operation.
High speed air valve is used to ensure quick response, low power consumption and long service life.
The sorter uses intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
Automatic failure alarm and modular construction make the machine easy to be maintained.
|
Model |
VSN3000-G3R |
VSN3000-G4R |
VSN3000-G5R |
VSN3000-G6R |
VSN3000-G7R |
|
Channels |
192 |
256 |
320 |
384 |
448 |
|
Capacity (t/h) |
3.5~7 |
3.5~7 |
4.5~8 |
5~10 |
8~12.0 |
|
Accuracy |
>99.98% |
>99.98% |
>99.98% |
>99.98% |
>99.98 |
|
Waste |
<1:0.125 |
<1:0.125 |
<1:0.125 |
<1:0.125 |
<1:0.125 |
|
Voltage(v) |
~220V 50Hz |
~220V 50Hz |
~220V 50Hz |
~220V 50Hz |
~220V 50Hz |
|
Power(kw) |
2.5 |
2.5 |
2.8 |
3.1 |
3.4 |
|
Pressure(MPa) |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
|
Consumption(L/min) |
1200~3000 |
1200~3000 |
1600~3500 |
1800~3800 |
2000~4200 |
|
Weight(kg) |
900 |
1000 |
1200 |
1400 |
1600 |
|
Dimension(L×W×H) |
1425×1518×1880 |
1725×1518×1880 |
2025×1518×1880 |
2325×1518×1880 |
2625×1518×1880 |
Anhui VISION Optoelectronics Technology Co., Ltd is a high-tech enterprise engaged in research, development, design and manufacturing of food and industrial color sorting equipments. The company has a strength R&D team which has been working many years for optoelectronics color sorter and CCD color sorter study, and possesses rich practical experience and strong research and development capability, especially with technological advantage in digital optoelectronic detection represented by CCD sensor. The monochrome CCD color sorter researched and produced by our company is in leading status in domestic industries, and the color CCD color sorter initiates domestic market. Now the main products of our company include series of rice color sorter, cereals color sorter, tea color sorter, dehydrated vegetables color sorter, and so on, which can meet the color sorter requirements of different customers. What's more, according to our customers' practical requirements, our company would provide the services for full design project, manufacture, installation and debugging, and technique training.
