Guangzhou Tengsheng Audio Equipment Co., Ltd. >> CD-15A Powered 15 Inches PA Live Active Speaker

CD-15A Powered 15 Inches PA Live Active Speaker

Name: CD-15A Powered 15 Inches PA Live Active Speaker
Brand: china-manufacturer-directory.com
SKU: 756352605
Availability: InStock
Rating: 4.8 (120 reviews)

Supplier:	Guangzhou Tengsheng Audio Equipment Co., Ltd.
Price:	US $ 300-700/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CD-15A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Sub Woofer
Crossover:	Bi-AMP
Lf Component:	220mm Magnet with Aluminum Frame
Size Options:	15", 18", Dual 18"
Installing:	Pole Mount, Lying Down
Diaphragm:	Paper
Capacitor:	Solen
Colour:	Customized
Clients' Logo:	Acceptable
Warranty:	3 Years
Hi-Fi:	Not Hi-Fi
Operation Mode:	Wire / Remote Control
Speaker System:	Optional Combination
Speaker Material:	Wood
Application:	Home
Certification:	CCC
Noise:	Nun
Monitor:	Nun
THD:	<0.05%

Product Description

Features:

a. Active sub-woof loudspeaker;

b. Special inverter hole design;

c. Frequency can be below as 40Hz.

1. Description:
CD-15A is an active sub-woof loudspeaker designed specifically for RBX full range loudspeaker.
With a special inverter hole design, CD-15A is equipped with a 15" strong and penetrating LF precise driver, whose frequency can be below as 40Hz.

2. Application:
It is ideal for auditorium, conference room, music bar, KTV and etc. As sub-woof loudspeaker, it can be combined with our full range loudspeaker.

3. Technical data:

Model	CD-15A powered 15 inches active pa live speaker
Drivers	LF: 1×15"voice-coil: 4"
Frequency(±3dB)	40HZ-220HZ(±3dB)
Dispersion(-6dB)	/
Sensitivity(1m/1W)	101dB
Maximum SPL	129dB Continuous/141dB Peak
Nominal Impedance	8 Ohms
Input power	Rate: 600W
Recommend AMP	/
Connectors	2 × Speakon NL4MP
Dimensions	600 × 535 × 555mm (H × W × D)
Master carton	660 × 595 × 615 (H × W × D)
Net Weight	46Kg
Gross Weight	49Kg

4. Construction:

Physical	Rectangle
Enclosure	Imported multilayer birch plywood
Grille	Die-casting steel net with circular hole
Paint	Polyester coatings (whose color can be customized.)
Handing Position	/
Pole Mount	Top: Φ35mm support base

5. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.

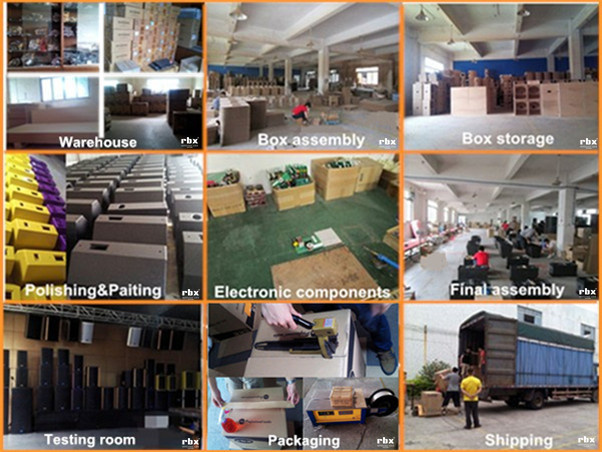

6. Company View:

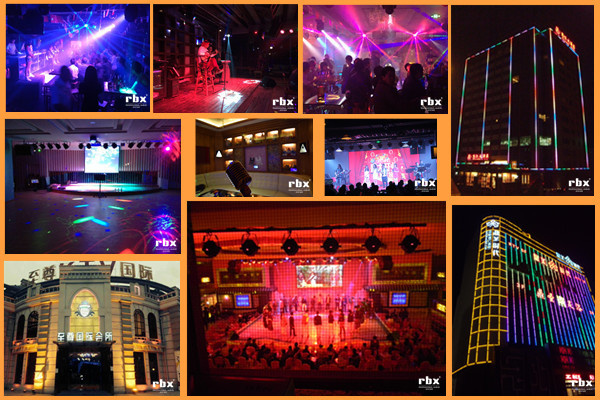

7. Our Projects:

8. Multiple transportation mode selection:

Guangzhou Tengsheng Audio Equipment Co., Ltd. is located in Huashan Town, Baiyun District, Guangzhou City, covers an area of 5, 000 square meters. Our company is closed to GUANGZHOU BAIYUN Airport, the transportation is convenient. We've been devoteing ourselves to the R&D, manufacturing and marketing of high-quality professional audio system.

During the passed years, We've owned a team of highly qualified engineers and sales. We've been always developing new products according to the market trends and the feedback from our clients, which gain much praise and trust. Besides products, we provide audio system solution also. We always take the pursuit of win-win situation between our clients and us.

Our company owns a serial of automated production equipments and quality management system basing on international standards, both of these help us to keep making progress. Excellent quality dates from pursuit of every aspect, and, customer satisfaction comes from sincere service. We'll listen to the voice of the world, and create perfect audio system.
