Product Specifications
| Prod Model: |
TD-WW500RGB-15 |
| Markets: |
North America,South America,Eastern Europe,Oceania,Eastern Asia,Western Europe |
| Dimension: |
500mm X75mmx 90mm |
| LED Colour: |
Single Colour or RGB |
| LED Chip: |
Semileds/Epistar/Bridgelux |
| Cct: |
3000k/4500k/6000k |
| Base Material: |
Aluminum Alloy |
| IP Rating: |
IP65 |
| Certification: |
RoHS |
| Beam Angle: |
60?? |
| Lifespan: |
50000 hours |
| Emitting Color: |
RGB |
| Diffuser: |
Tempered Glass |
| Electric Current Type: |
DC |
| Input Voltage: |
AC100-240V |
Product Description

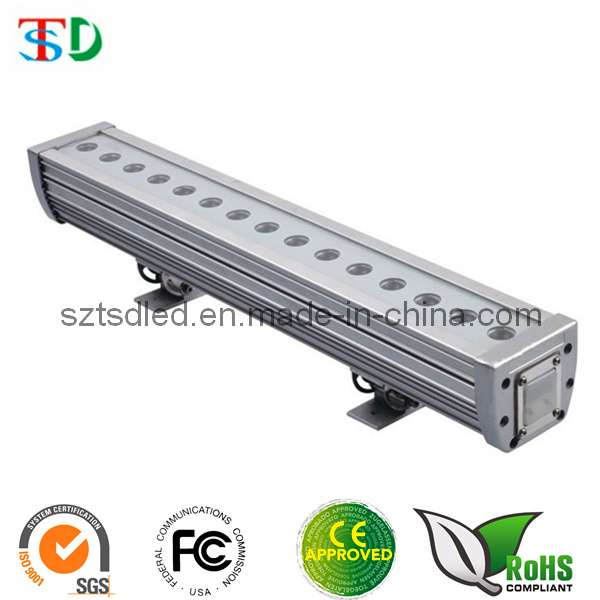

Discription of LED Wall Washer
This product is mainly used for decoration and highlight in building frame, garden, etc. It can work in independent mode and DMX mode, which can generate various color changing effects, such as flashing, fading, teady, seven color jumping synchronously etc. DMX256 class gray degree dimmer, DMX programmable
Features of LED Wall Washer Light
1. The Light source adopts the imported single high power LED which is Famous Brand, such as Epistar, Bridgelux.
2. The crust in aluminum alloy die casting ensures the efficiency of heat emission, guaranteeing the light a long life span.
3. The high pure imported aluminum from Germany as the reflector has high reflecting efficiency, and it can make sure the luminous flux, controlling the light inside of a useful area.
4. It improves the efficiency of light uniformity and utilization, showing the LED advantage of energy saving.
5. The integration of 5mm high strength roughened glass and the housing makes the light work perfectly in the high humidity environments.
6. New high efficiency constant current driver. Wide range of input voltage: AC100-240V.
7. No delay start. No waiting. It can reach its normal light as soon as it is turned on. No noise.
8. No electrical wave, conforming to CE.
9. Environment friendly and no air pollution. We exert the design of using cold light source. It's no heat radiation. There is no ill to our eyes and skin. The floodlights do not have lead, hydrargyrum and any other contamination. It is really environment friendly with RoHS certificate.
Specifications of DMX RGB LED Wall Washer Light
1. Material: Aluminum alloy boday, tempered glass cover
2. LED Color: White Colour(Red/Yellow/Blue/Green/RGB is optional)
3. Projection distance: 10-15M
4. Power for single LED: 1W/350MA
5. LED QTY: 15PCS
6. Luminous Flux: 1300lm/PCS
7. Power factor: >0.9
8. Power efficiency: >87%
9. View angle: 15/25/45/60 degree
10. Waterproof: IP65
11. Condition temperature: -20° C~40° C
12. Control mode: Build-in constant current driver/DMX512 Singal
13. Color effects: Single color projecting, chasing, flowing 256 brightness and colorful
14. Working lifetime: 50000hs
15. Input: AC100-240V, 50/60Hz
16. Dimension: 500mm*75mm*90mm
Applications of RGB LED Wall Washer
1. Bars, restaurants, clubs, hotels, stages
2. Historical and modern buildings
3. Museums, art galleries
4. Sculptures and plastic arts
|
Material |
Aluminum alloy body, tempered glass cover |
|
Color |
RGB Colorful |
|
Projection Distance |
≤ 8-12M |
|
Power For Single LED |
1W/350MA |
|
Light Source |
High Power LED |
|
Input Voltage |
AC100-240V, 50~60Hz |
|
Operating Voltage |
DC24V |
|
LED Color |
RGB(5R, 5G, 5B) |
|
Dimension |
500 x 75 x 90mm |
|
Power Factor |
> 0.9 |
|
Power Efficiency |
> 87% |
|
View Angle |
15/30/45/60 degree |
|
Protection Rating |
IP65 |
|
Condition Temperature |
-20º C ~ 45º C |
|
Control Mode |
Build-in constant current driver/DMX512 signal control |
|
Color Effects |
Single color projecting, chasing, flowing 256 brightness and colorful |
|
Working Lifetime |
50, 000Hrs |
|
Certification |
CE & RoHS |
